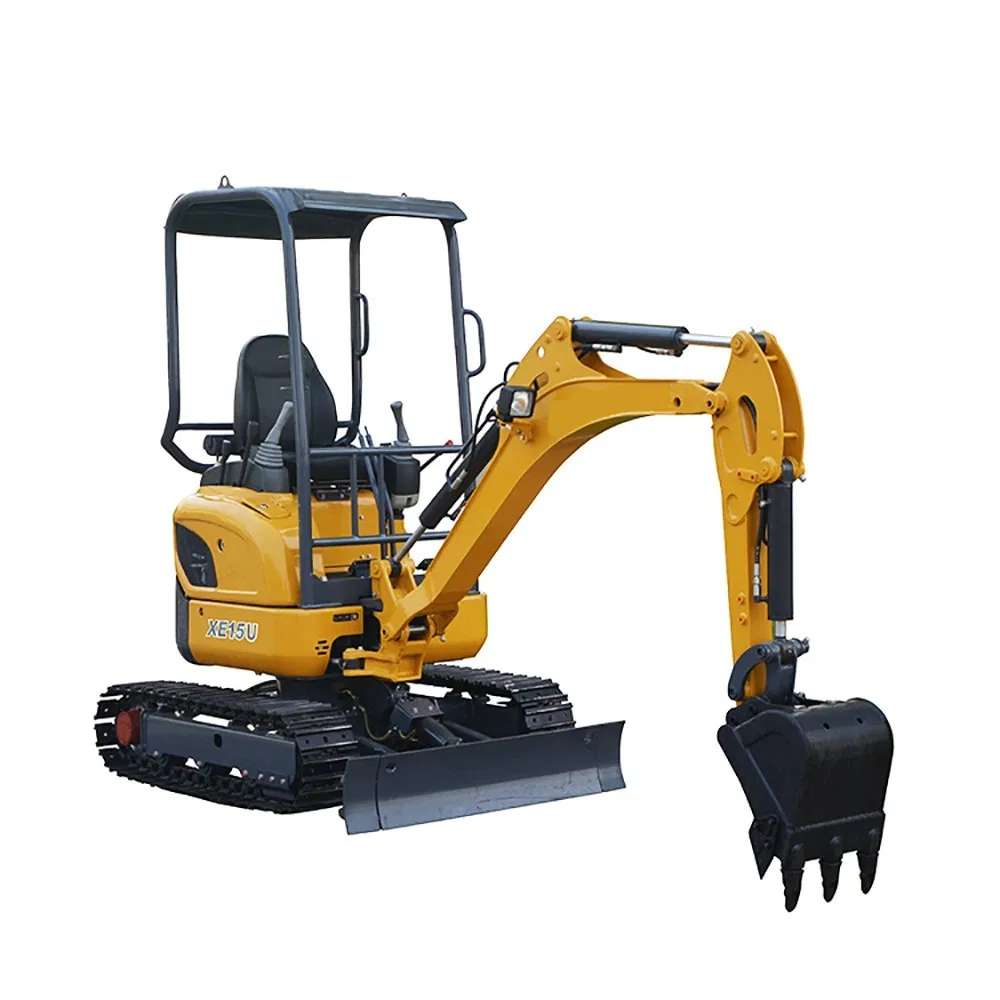

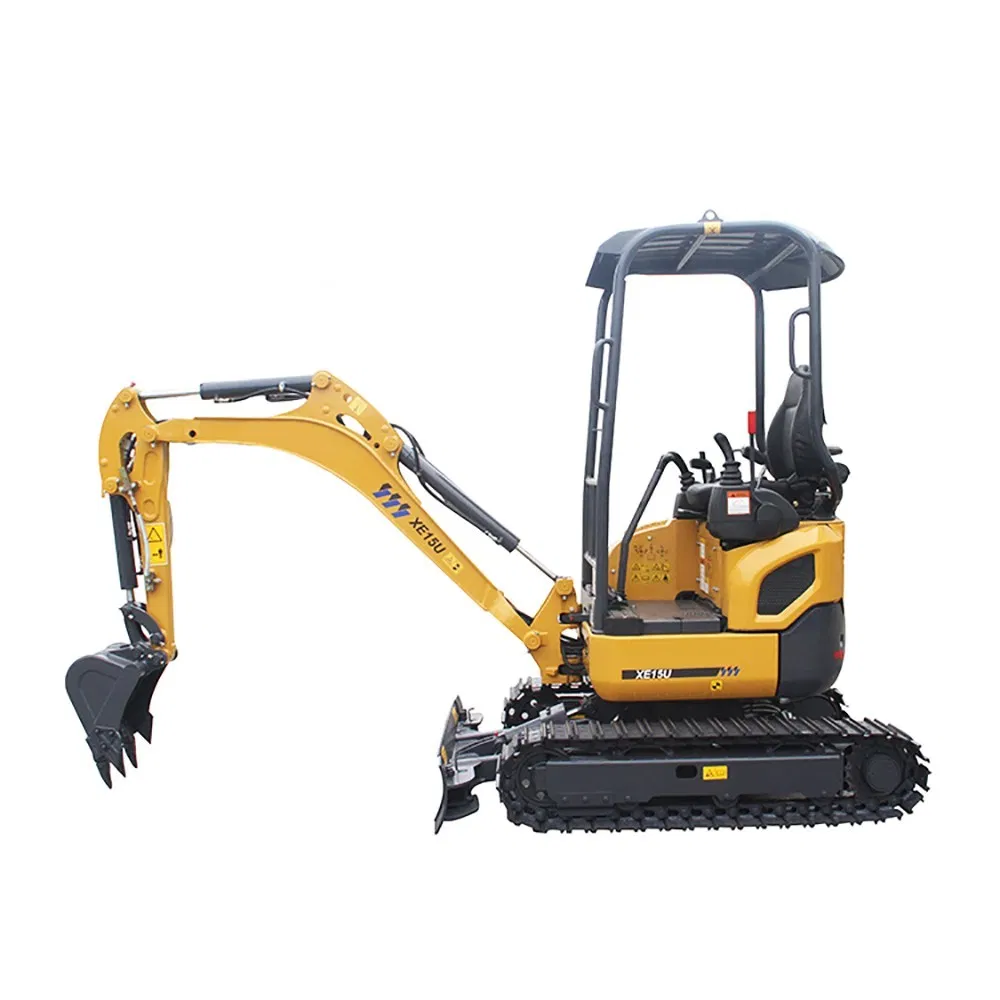

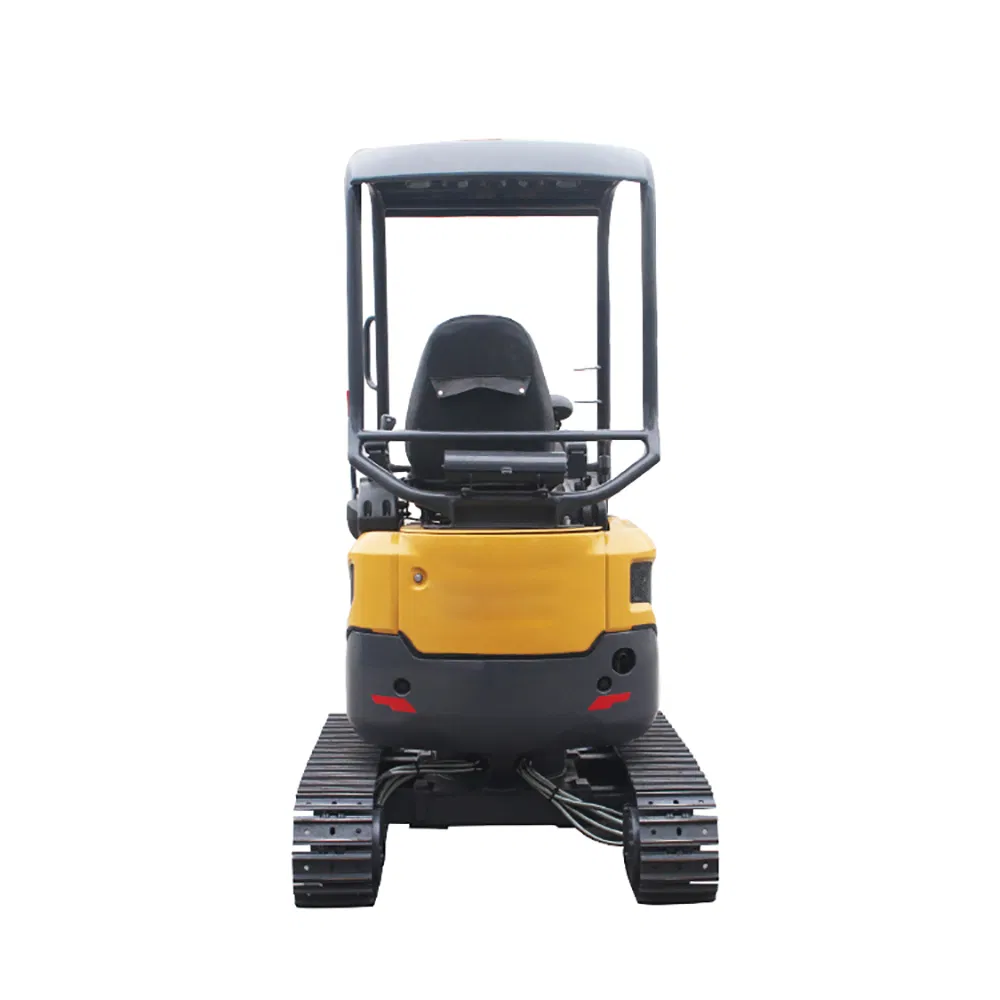

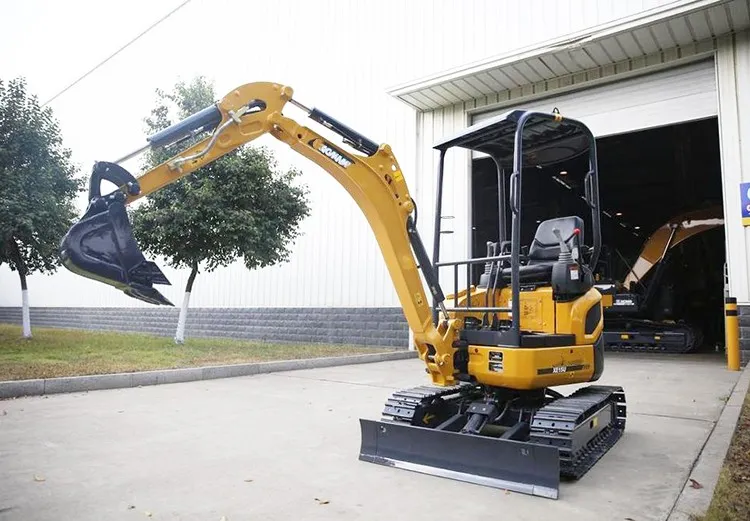

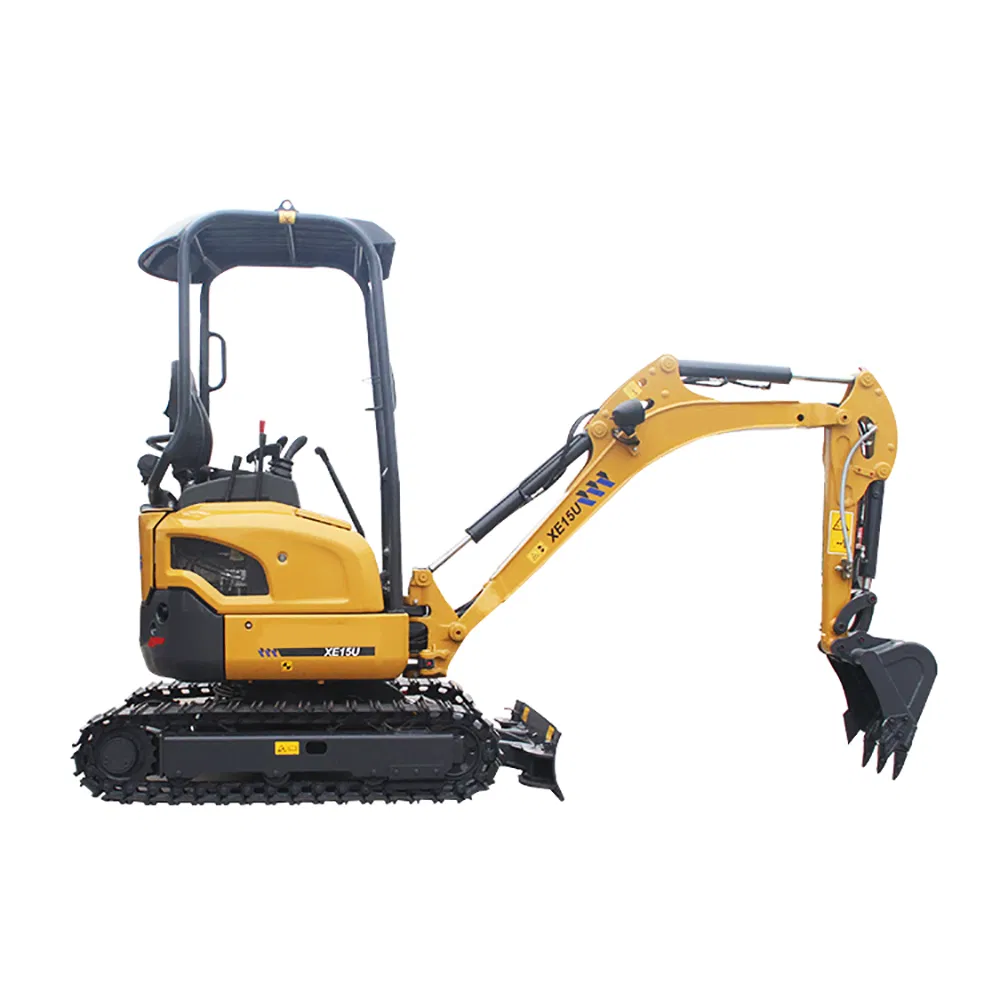

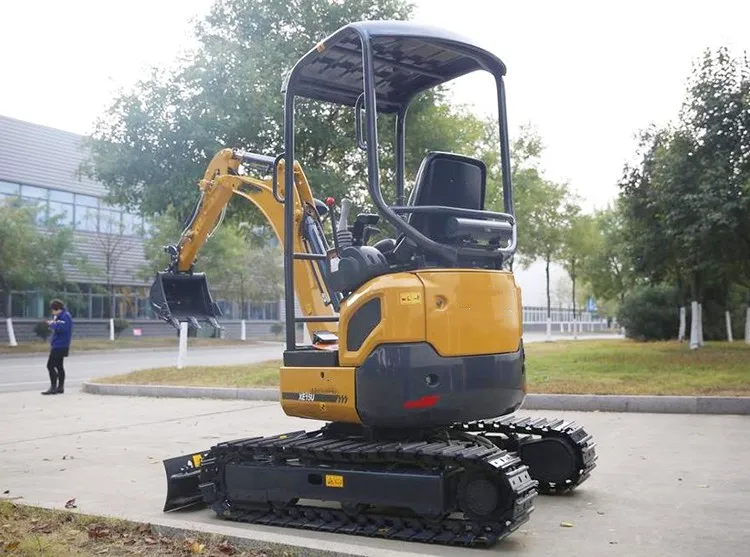

The XE15U hydraulic excavator utilizes a mechanical injection oil engine that adheres to international emission standards. It is characterized by its powerful performance, energy conservation, and environmental protection capabilities. With high reliability and excellent operational performance, this 1.5-ton mini excavator is an ideal choice for diverse working conditions.
Equipped with the latest technological advancements, the key hydraulic components offer low energy consumption and rapid response speeds. The precise control system ensures small impact forces while maintaining robust mining capacity and high operational efficiency.
| Category | Description | Unit | Value |
|---|---|---|---|
| Basic | Operating weight | kg | 1795 |
| Bucket capacity | m³ | 0.04 | |
| Engine | Model | / | D782-E3B |
| Output power | kw/rpm | 9.8/2300 | |
| Displacement | L | 0.778 | |
| Performance | Travel speed (H/L) | km/h | 4.3/2.2 |
| Gradeability | ° | 30° | |
| Max. Digging Reach | mm | 3900 | |
| Dimensions | Overall Length | mm | 3560 |
| Overall Width | mm | 1240 | |
| Overall Height | mm | 2348 |
