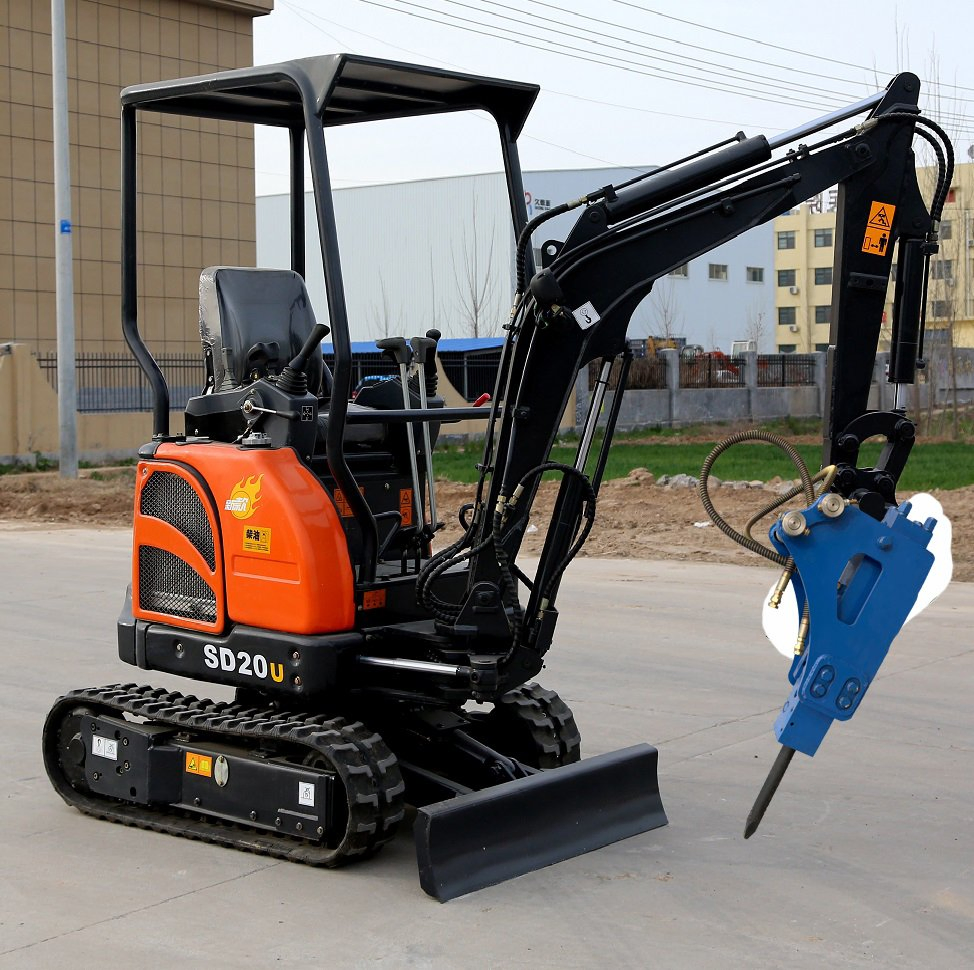

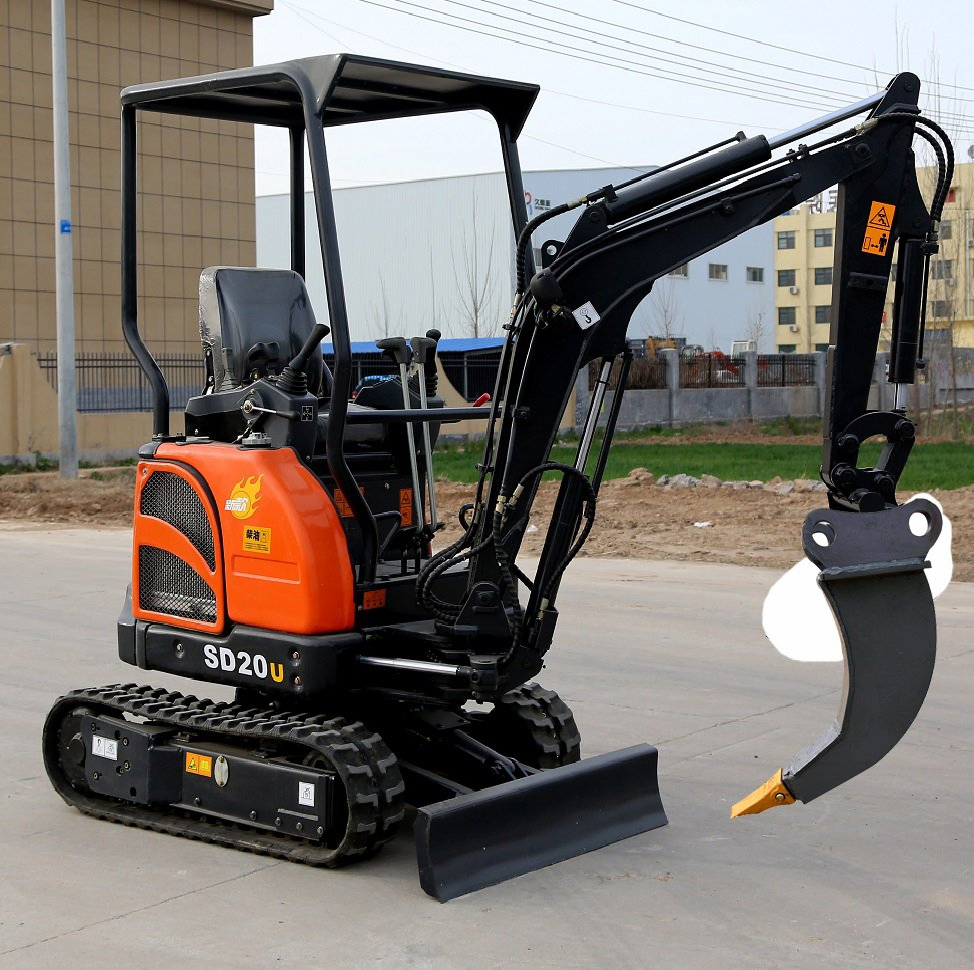

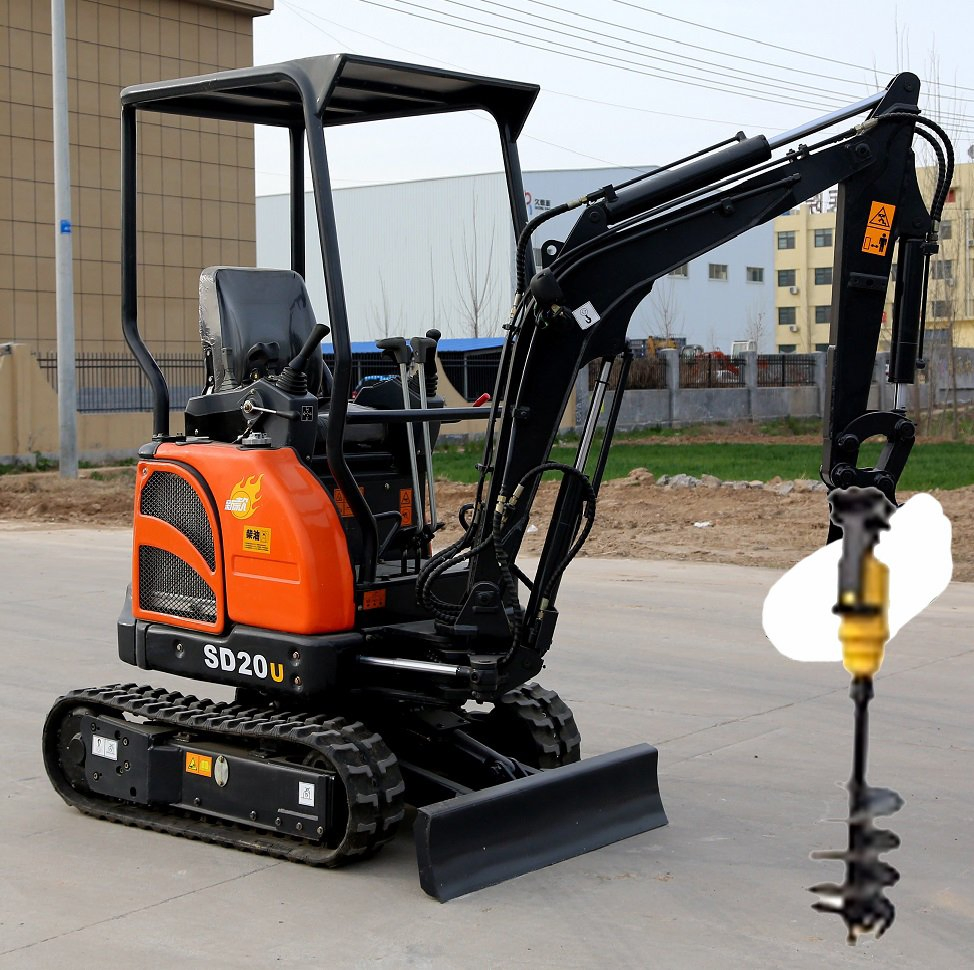

2 Ton Real Zero Tail Mini Excavator Digger Optional Euro 5 EPA Perkins Yanmar Engine Boom Swing Retractable Undercarriage CE Certified SD20u
2 Ton Real Zero Tail Mini Excavator Digger Optional Euro 5 EPA Perkins Yanmar Engine Boom Swing Retractable Undercarriage CE Certified SD20u
2 Ton Real Zero Tail Mini Excavator Digger Optional Euro 5 EPA Perkins Yanmar Engine Boom Swing Retractable Undercarriage CE Certified SD20u
2 Ton Real Zero Tail Mini Excavator Digger Optional Euro 5 EPA Perkins Yanmar Engine Boom Swing Retractable Undercarriage CE Certified SD20u
2 Ton Real Zero Tail Mini Excavator Digger Optional Euro 5 EPA Perkins Yanmar Engine Boom Swing Retractable Undercarriage CE Certified SD20u
1 / 5
2 Ton Real Zero Tail Mini Excavator Digger Optional Euro 5 EPA Perkins Yanmar Engine Boom Swing Retractable Undercarriage CE Certified SD20u
2 Ton Real Zero Tail Mini Excavator Digger Optional Euro 5 EPA Perkins Yanmar Engine Boom Swing Retractable Undercarriage CE Certified SD20u
2 Ton Real Zero Tail Mini Excavator Digger Optional Euro 5 EPA Perkins Yanmar Engine Boom Swing Retractable Undercarriage CE Certified SD20u
2 Ton Real Zero Tail Mini Excavator Digger Optional Euro 5 EPA Perkins Yanmar Engine Boom Swing Retractable Undercarriage CE Certified SD20u
2 Ton Real Zero Tail Mini Excavator Digger Optional Euro 5 EPA Perkins Yanmar Engine Boom Swing Retractable Undercarriage CE Certified SD20u

2 Ton Real Zero Tail Mini Excavator Digger Optional Euro 5 EPA Perkins Yanmar Engine Boom Swing Retractable Undercarriage CE Certified SD20u

Customization: Available
Type: Crawler Excavator
Usage: Mining Excavator
Send Inquiry

Product Description

Basic Specifications

Model NO.
SD20U
Bucket
Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Transport Package
Wooden Box
Origin
China
HS Code
8429521200
Production Capacity
10000 Units

Product Overview

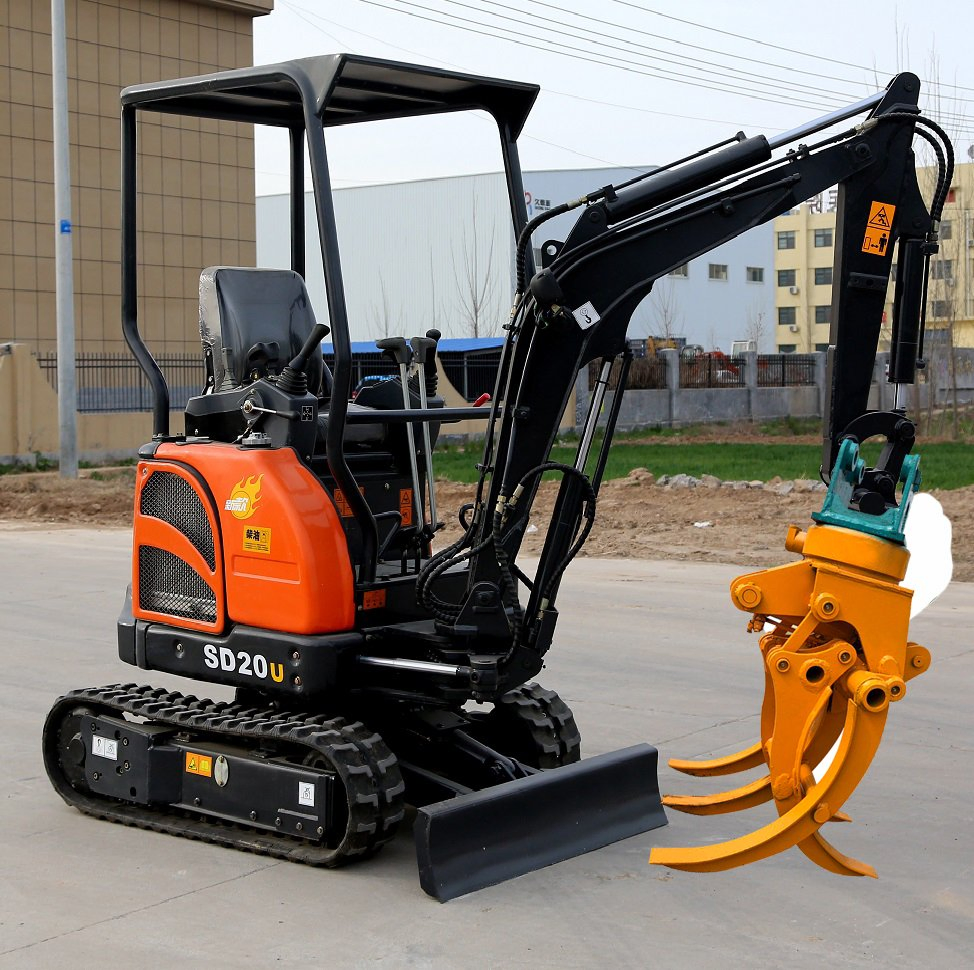

2 ton real zero tail mini excavator digger optional euro 5 epa perkins yanmar engine boom swing retractable undercarriage CE certified SD20U

Buy a 2 ton excavator with a true zero tail function and choose SD20U. It can be equipped with PERKINS, YANMAR engine, EURO 5 & EPA engine, optional boom swing, optional chassis extension, optional dual-speed travel. Customers can customize different configuration combinations according to budget.

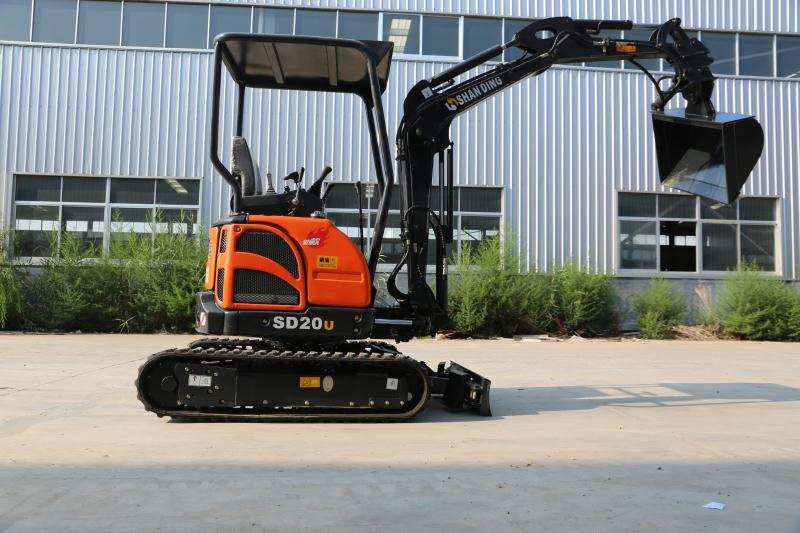

SD20U Mini Excavator

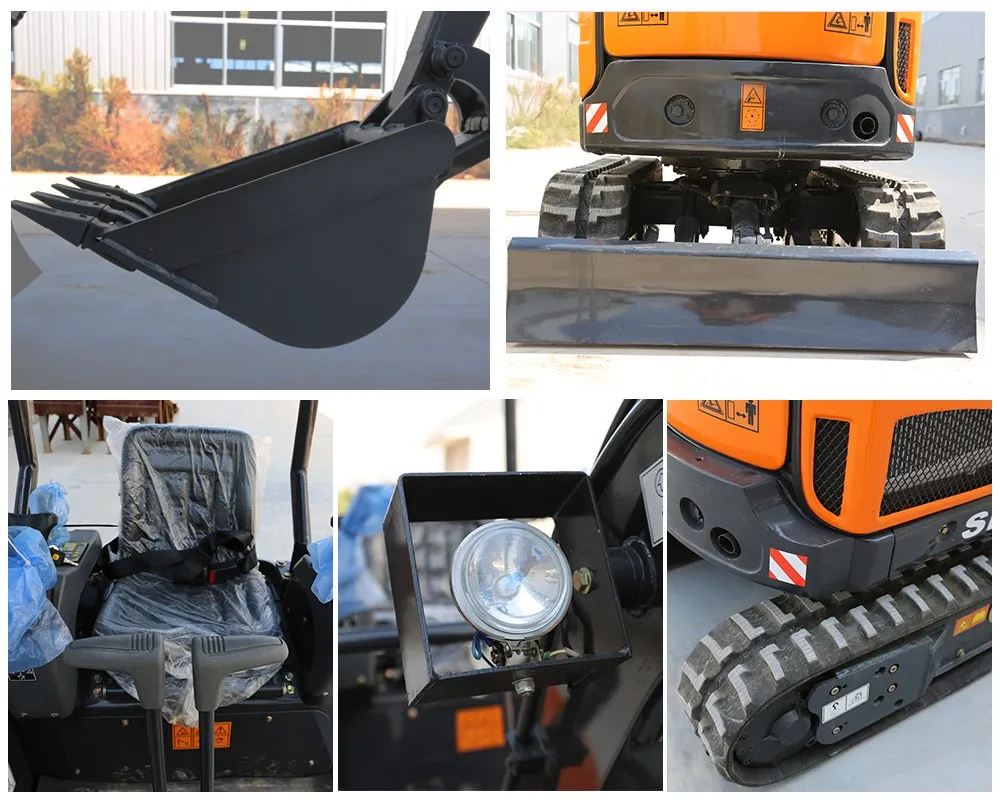

Zero Tail Excavator Detail

Technical Parameters

Machine Configuration
ModelSD20U
Operating modeHydraulic lever
Operating weight1970kg
Bucket capacity0.07cbm
Bucket width430mm (Customizable)
EnginePerkins(UK) 403D-11, 14.7kw/2200r/min
Main ValveHUSCO (USA)
Walking MotorEATON OMB195 (USA)
Rotary MotorEATON SW2K-195 (USA)
Chassis ScalableYes
Track typeRubber Track
Physical Size & Working Range
Total Dimensions4090x1200x2310 mm
Track Size1570mm * 230mm
Max. Digging Depth2405 mm
Max. Digging Height3330 mm
Max. Digging Radius3975 mm
Bucket Digging Force15.7kn
Dimensions
Features
Performance
Engine Options
Hydraulic System
Control System
Chassis
Quality Control

Frequently Asked Questions

What engine brands can be equipped on the SD20U?
The SD20U mini excavator offers versatile engine options including PERKINS (UK), YANMAR, and engines meeting EURO 5 & EPA standards to suit different regional requirements.
Is the SD20U a true zero-tail swing excavator?
Yes, the SD20U features a real zero-tail swing design, making it ideal for operating in confined spaces where the rear of the machine stays within the width of its tracks.
What is the operating weight and digging capacity?
The machine has an operating weight of 1970kg and comes with a standard bucket capacity of 0.07cbm (supporting bucket widths of 430mm or customized sizes).
Does the machine feature a retractable undercarriage?
Yes, the SD20U is designed with a scalable/retractable chassis, allowing it to pass through narrow passages and then expand for better stability during operation.
What are the maximum digging dimensions?
The SD20U can reach a maximum digging depth of 2405 mm, a maximum digging height of 3330 mm, and a maximum digging radius of 3975 mm.
What certifications does this model hold?
The SD20U is fully certified with CE and ISO9001:2000 standards, ensuring compliance with international quality and safety regulations.
