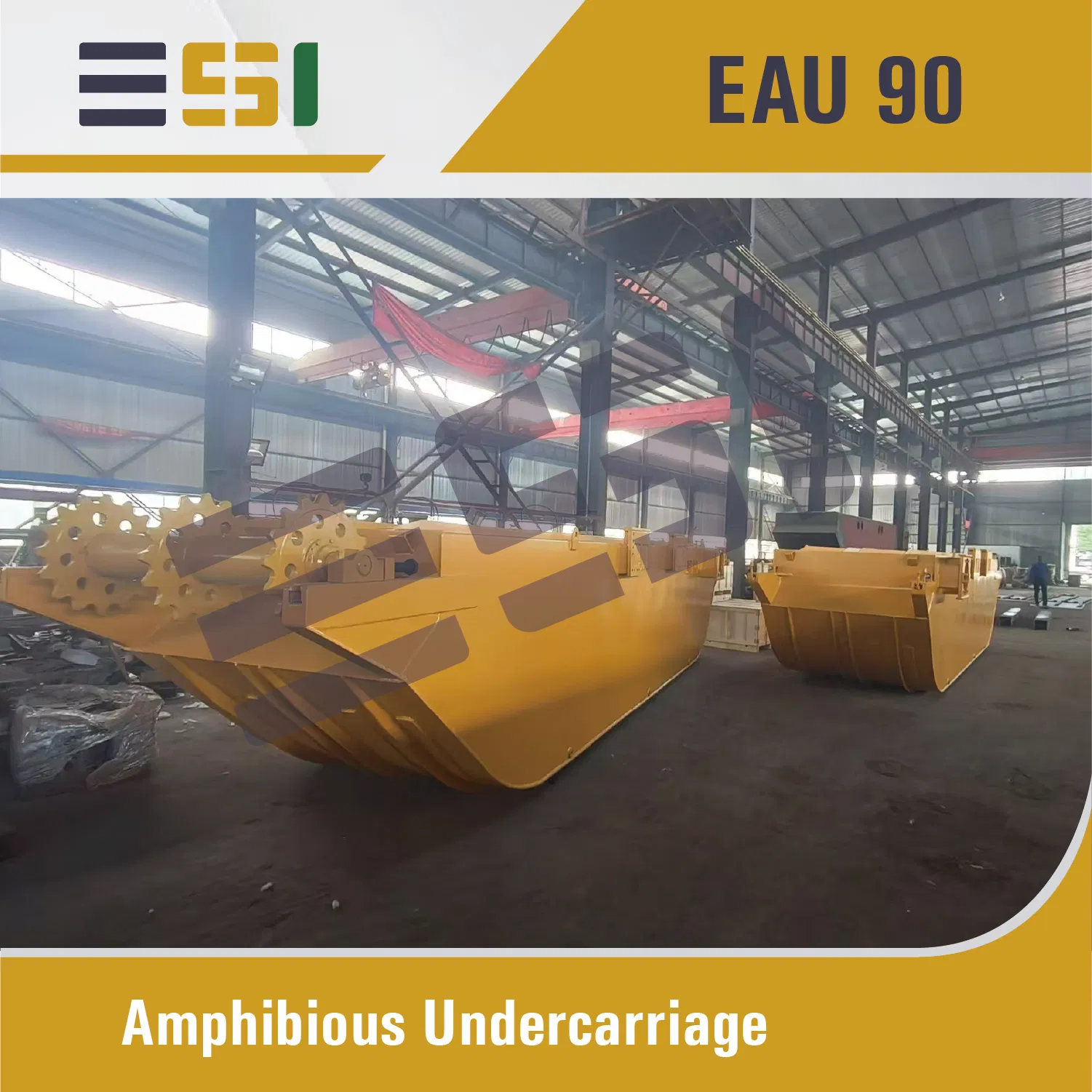

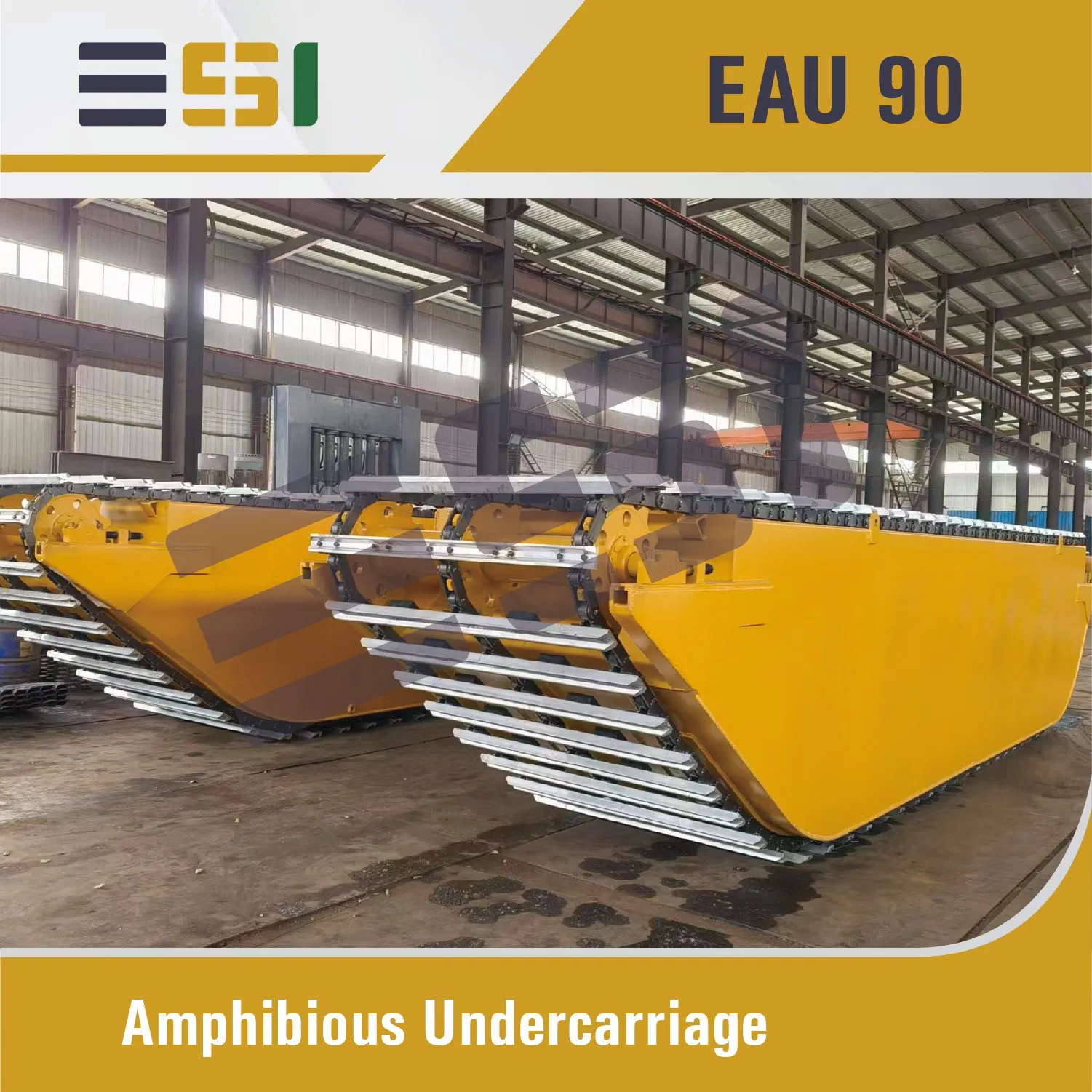

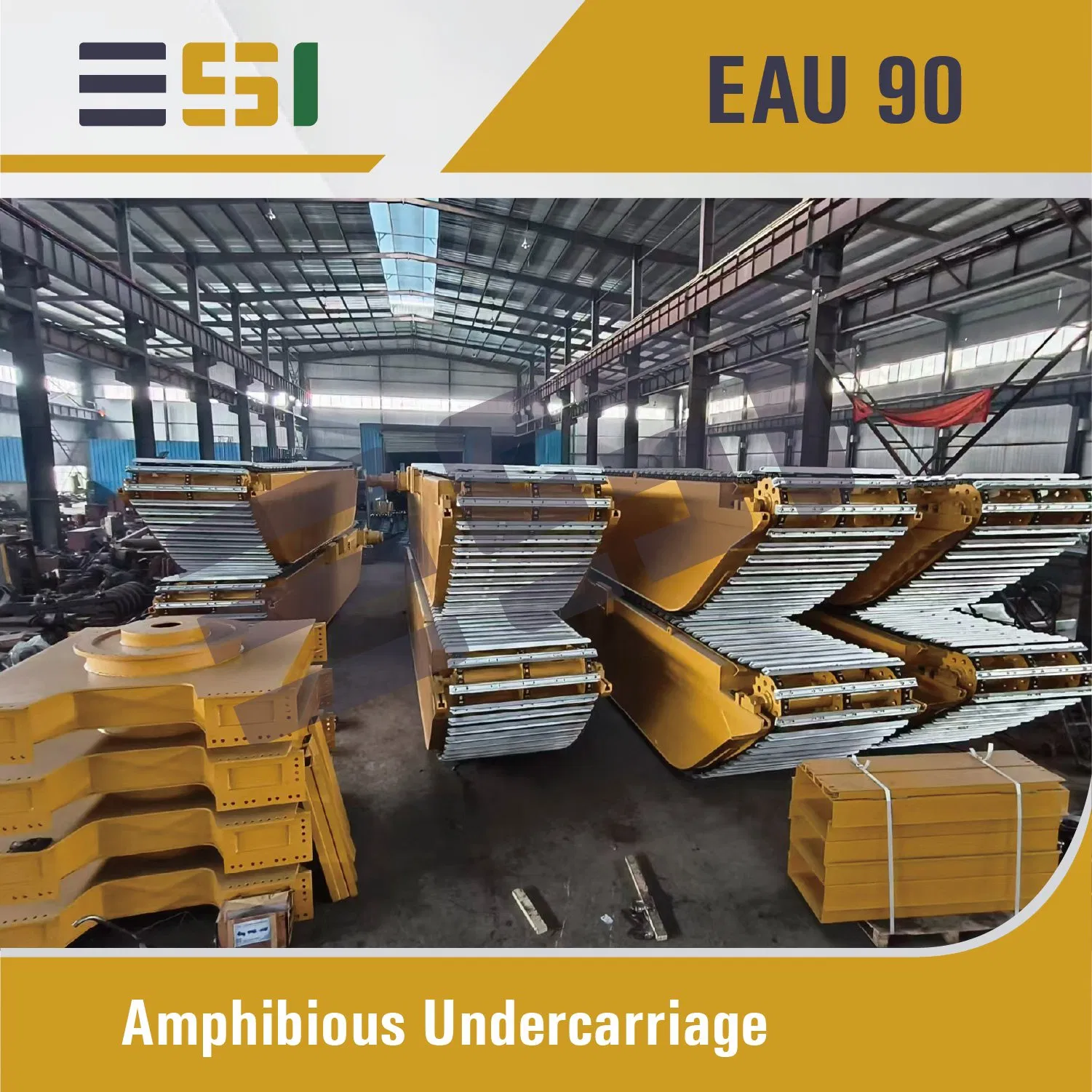

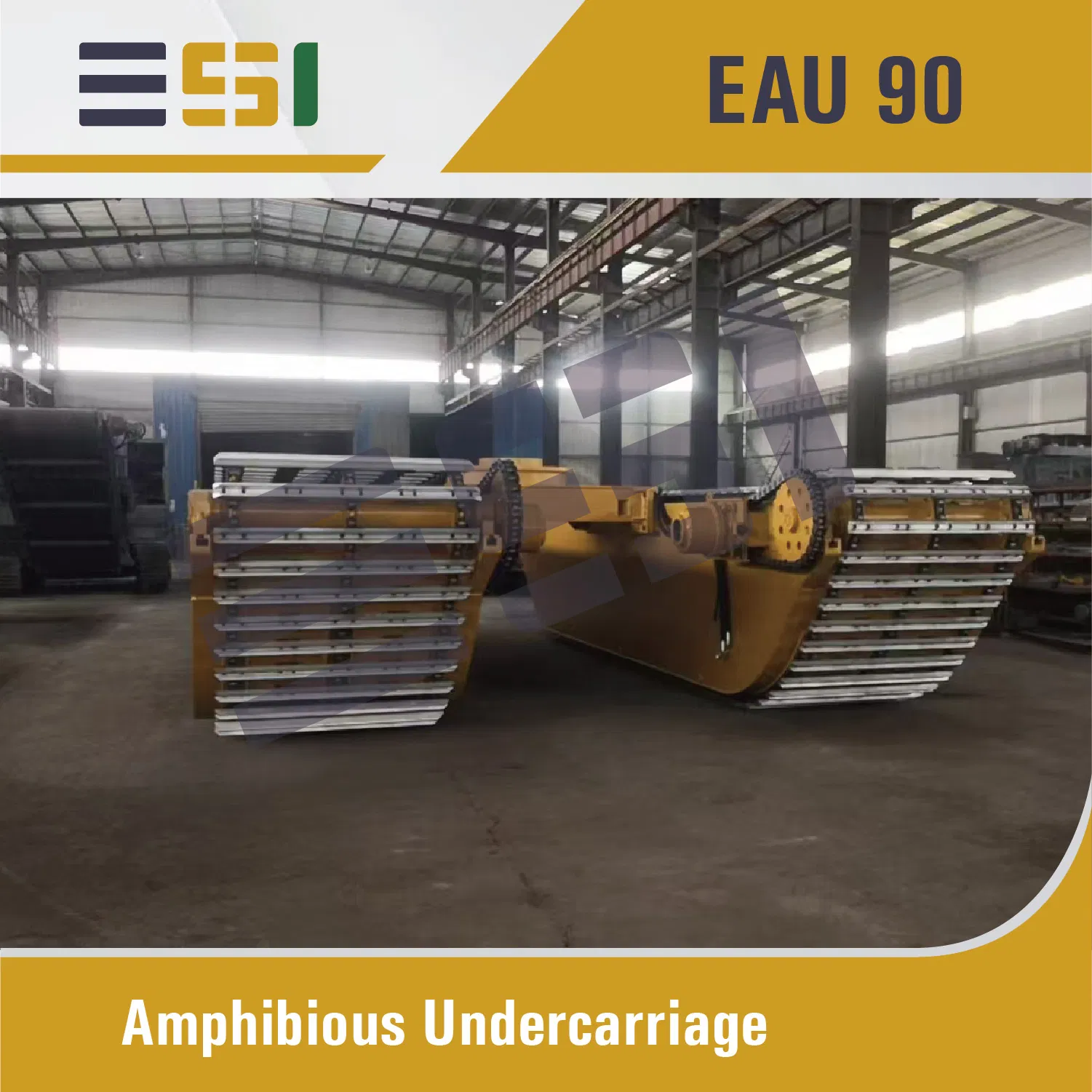

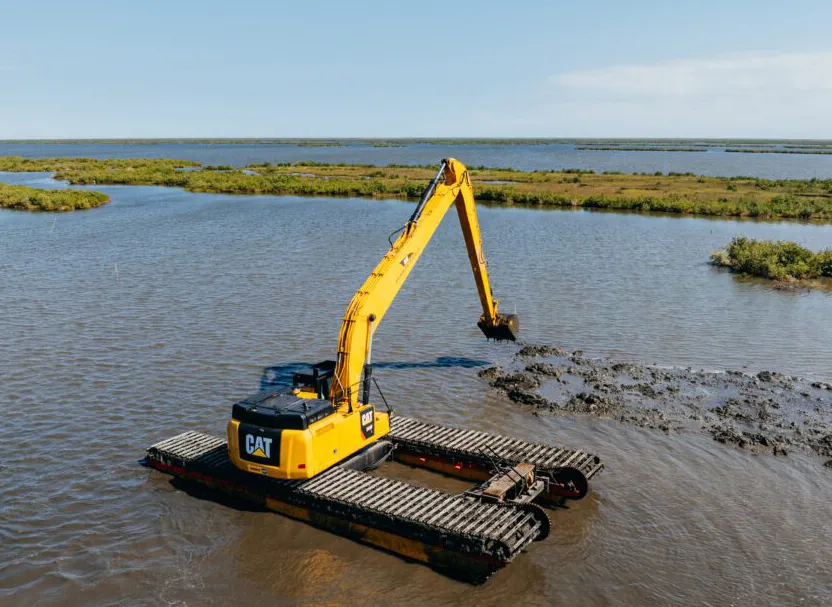

The Hydraulic Amphibious Undercarriage is designed for applications in waters, muddy, and swamp areas. Equipped with a pair of large steel pontoons with internal compartments, this equipment operates in soft terrain with much lower ground pressure than standard crawler excavators. It can float in water and self-propel, making it a trusted tool for challenging environments.
| EAU 90 Performance Data | |
|---|---|
| Operating Weight | 9,900 kg |
| Pontoon Size | 8500 × 1300 × 1500 mm |
| Track Cleat | 3-inch Aluminum Track Cleat TC-1200 |
| Chain Link | 4-inch heavy duty roller chain |
| Overall Width | 4300 mm |
| Overall Height | 1800 mm |

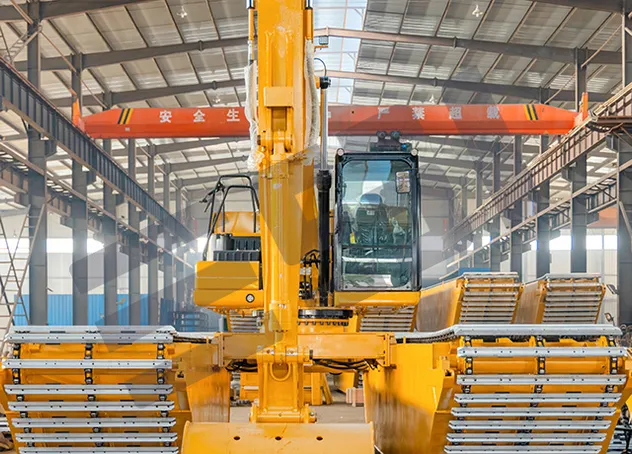

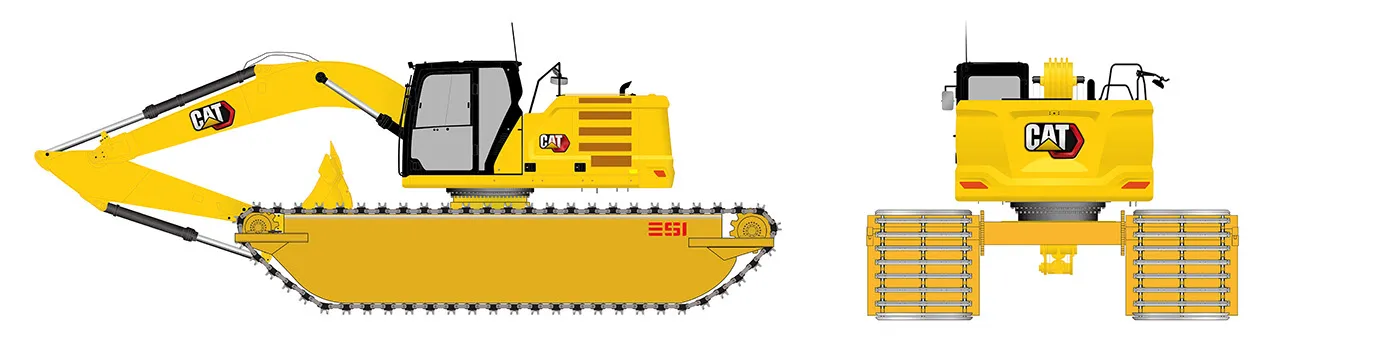

Right Elevation

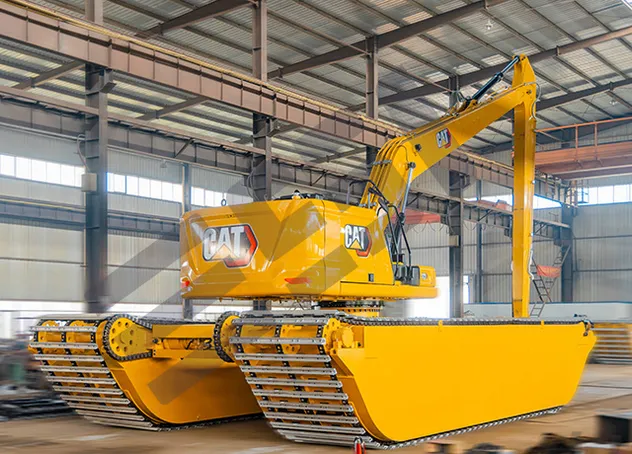

Left Elevation

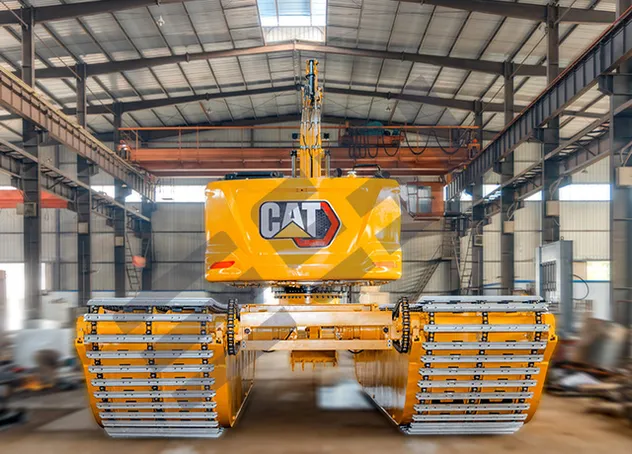

Front Elevation
