BTEra Excavator
1 / 5

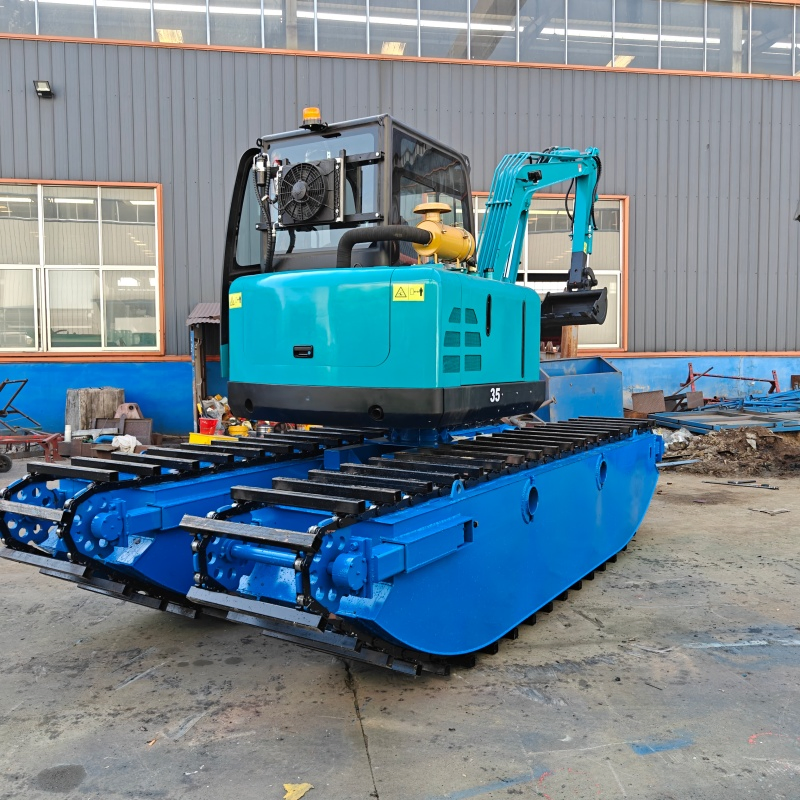

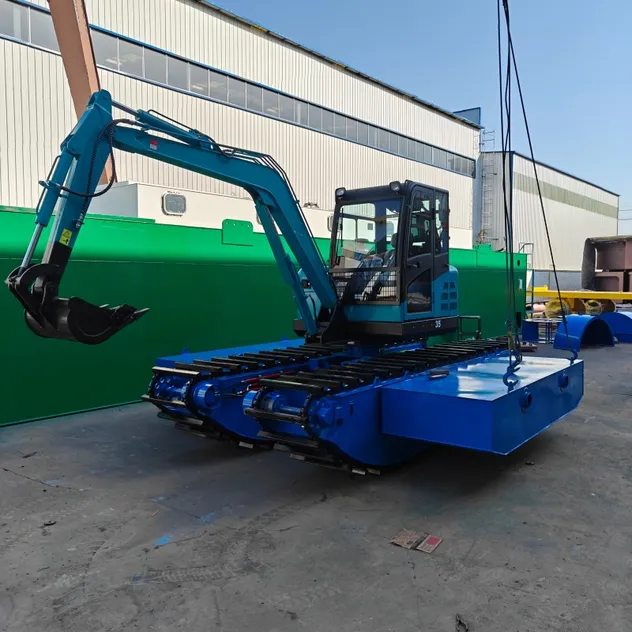

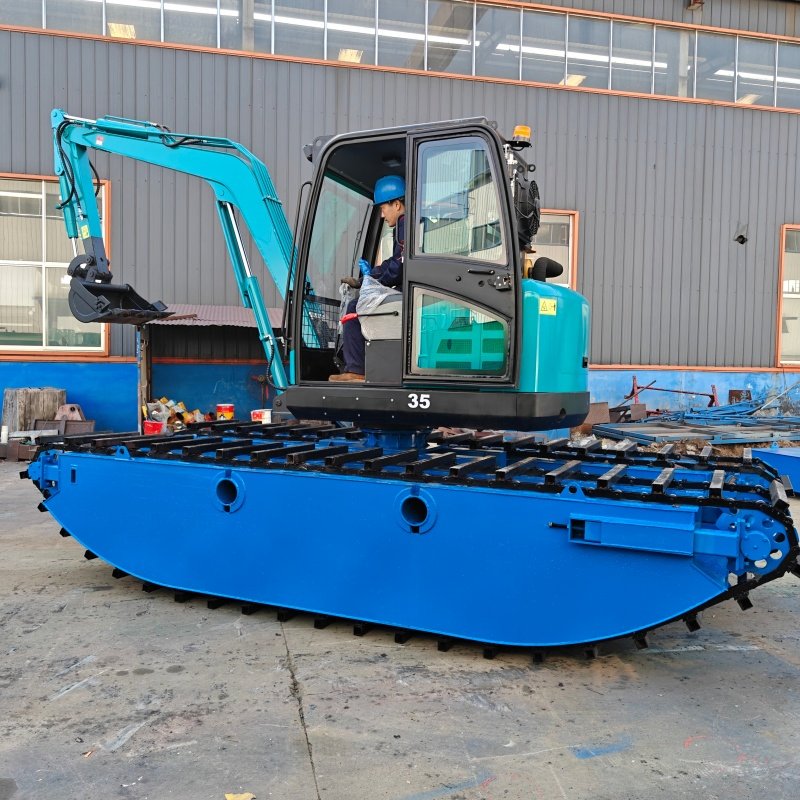

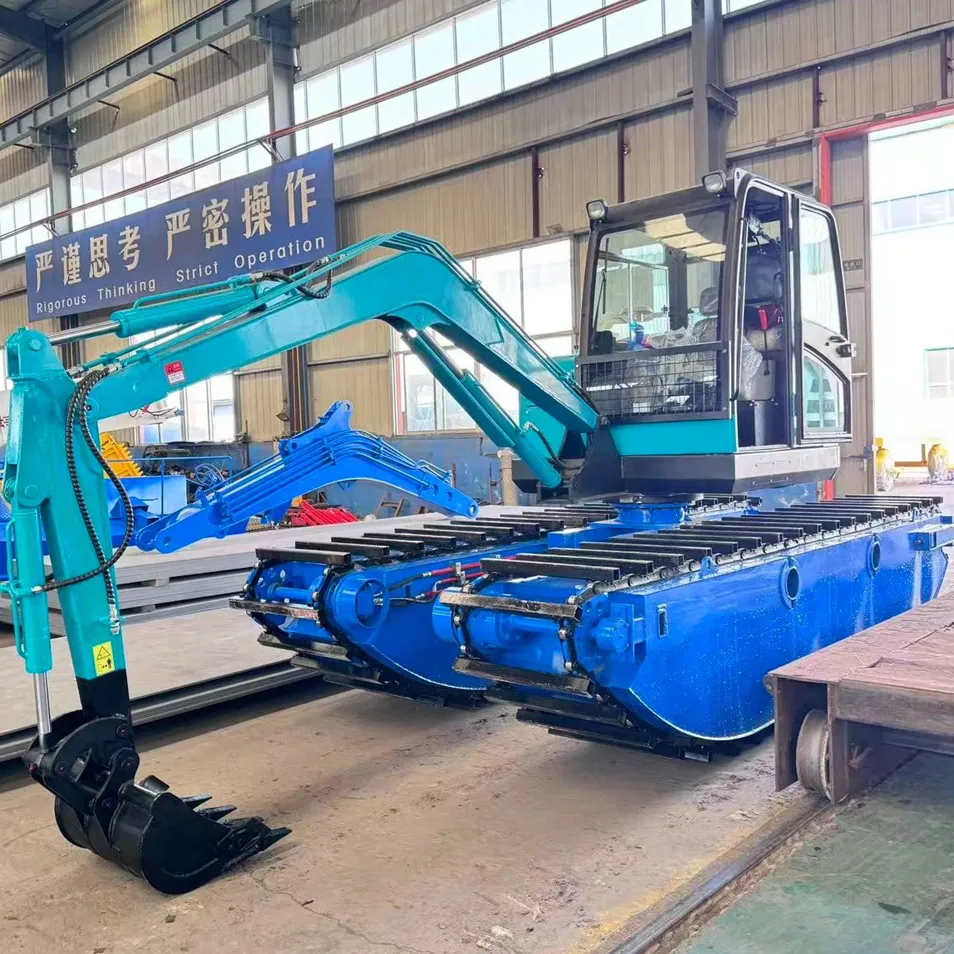

An amphibious excavator is a specialized engineering machine designed for excavation, dredging, and leveling operations in challenging environments including land, swamps, tidal flats, and shallow water. This machine combines the powerful performance of traditional tracked excavators with the buoyancy of a boat.

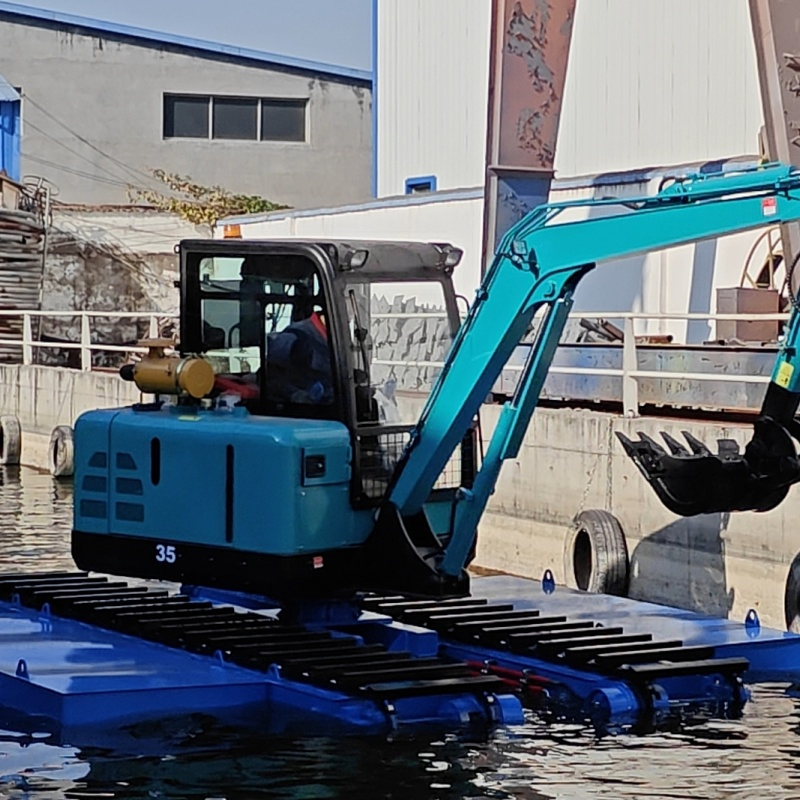

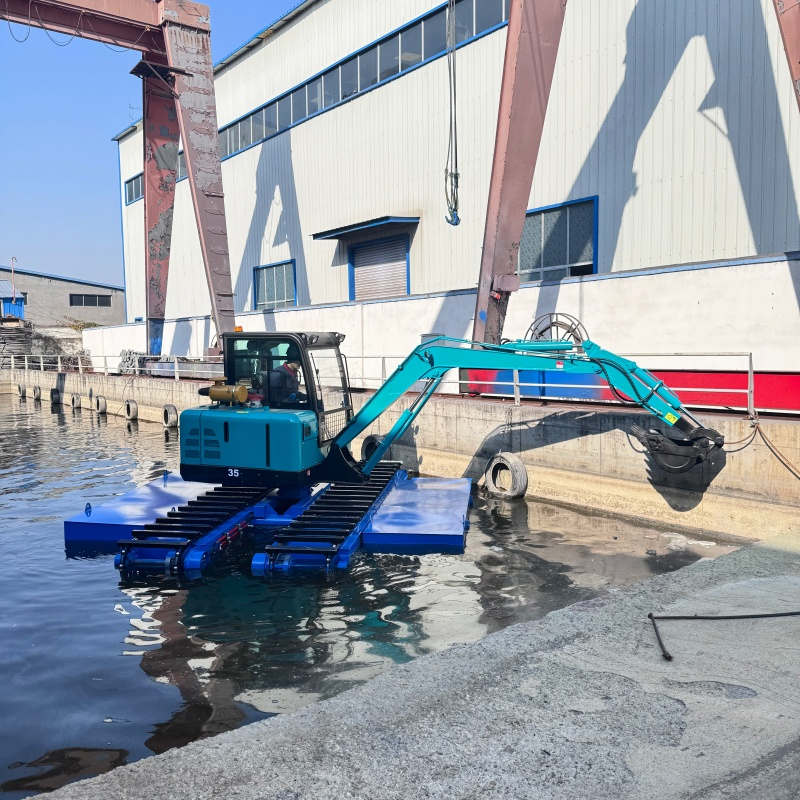

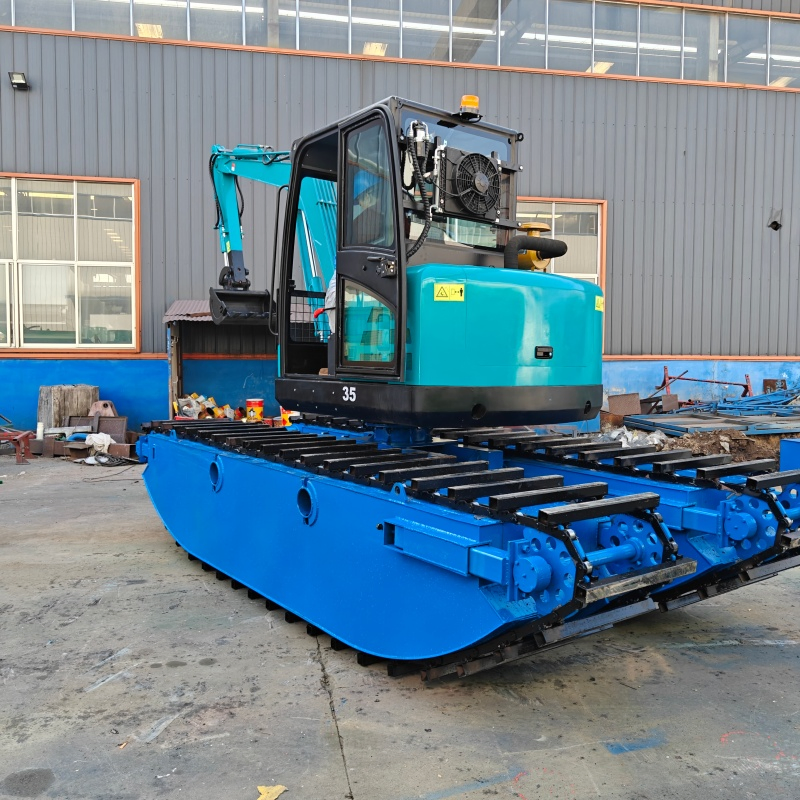

Amphibious Mobility: Equipped with sealed floating pontoon tracks, allowing operations in water depths of 1.5-3 meters. Buoyancy is managed via a dedicated drainage system for smooth land-to-water transitions.

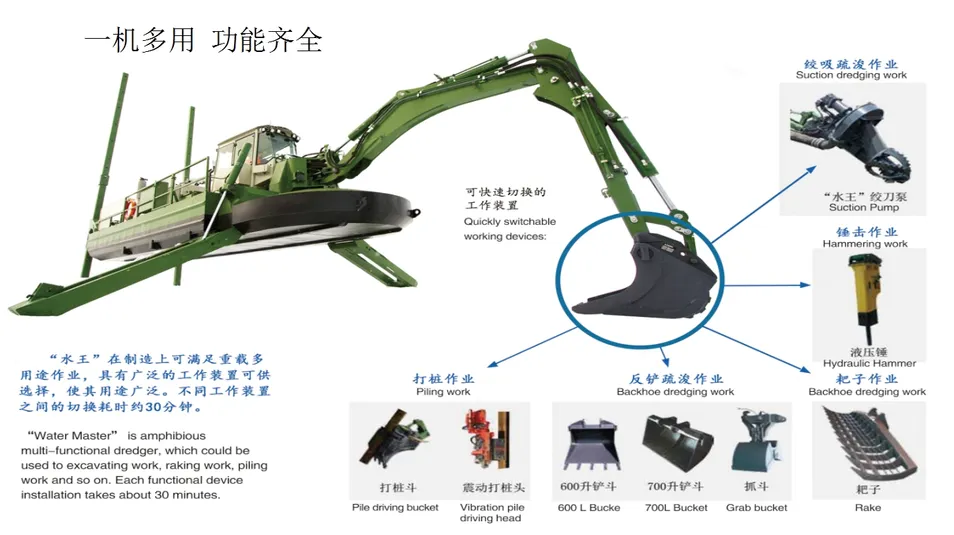

Attachment Compatibility: Supports standard buckets, hydraulic shears, log grapples, and spiral drum digging devices for high-viscosity sludge.
Intelligent Control: Integrated GPS and tilt sensors for automatic slope control. Some models support remote control for hazardous or deep-water operations.
| Parameter | Model 35 Value |
|---|---|
| Dimensions | 7.5 x 2.25 x 3.2 m |
| Travel Speed | 2-4 kw/h |
| Max Ground Clearance | 0.7 m |
| Bucket Digging Force | 30 KN |
| Max Digging Height | 4.8 m |
| Float Dimensions | 4.5 x 0.8 x 1 m |
| Float Material | 4mm Steel Plate |
| Hydraulic Motor Brand | Eddie (STM02) |
| Chain Pitch | 125 mm |
| Side Floats | 3 * 0.75 * 0.75 (2 pcs) |
Specialized in environmental protection dredging equipment, offering customized solutions for global water-based engineering projects. Products are certified by major classification societies including CCS, ABS, and BV.
