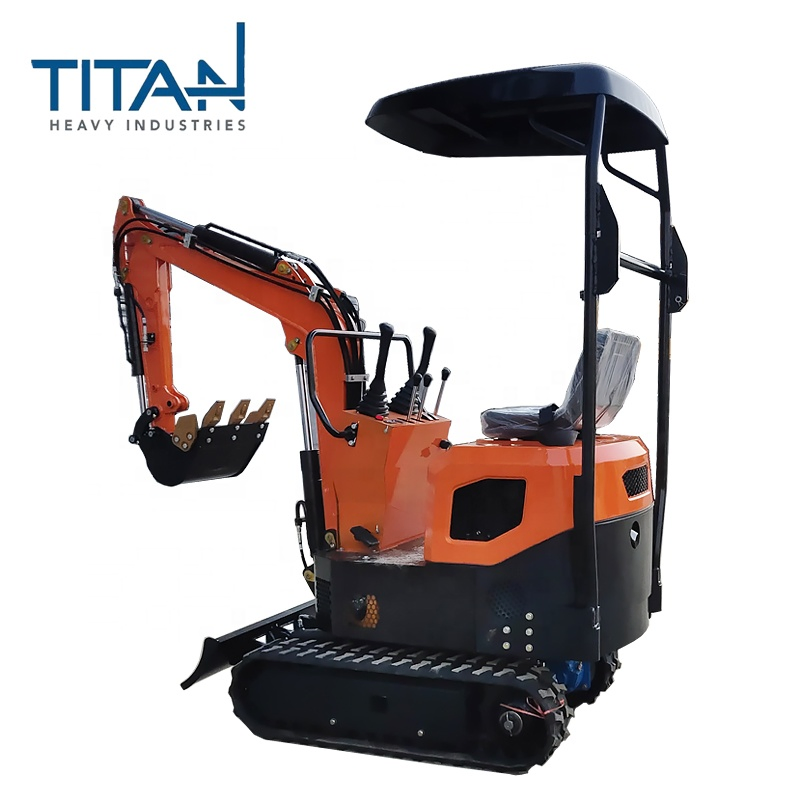

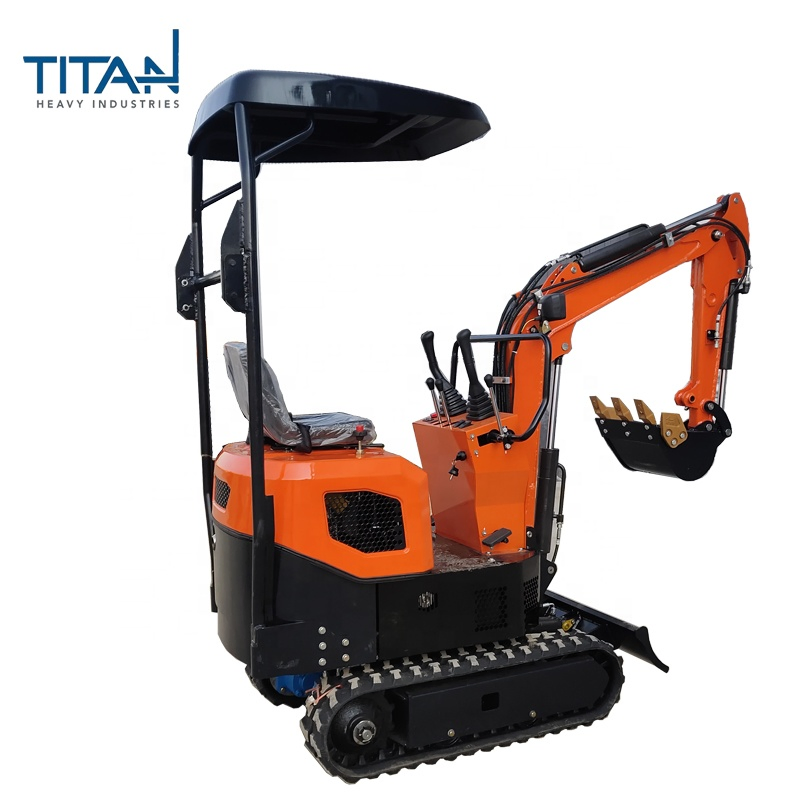

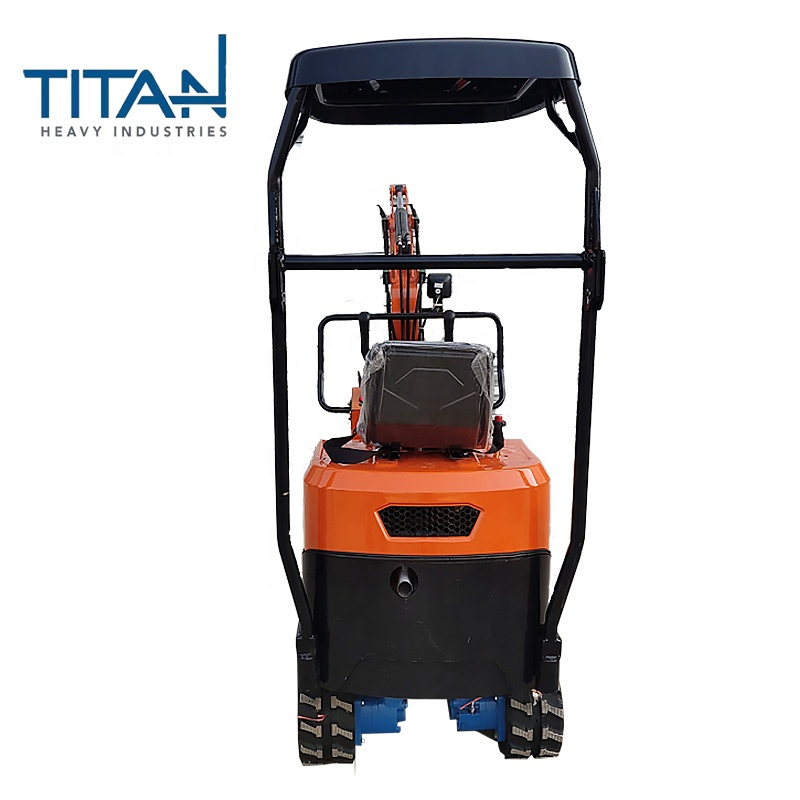

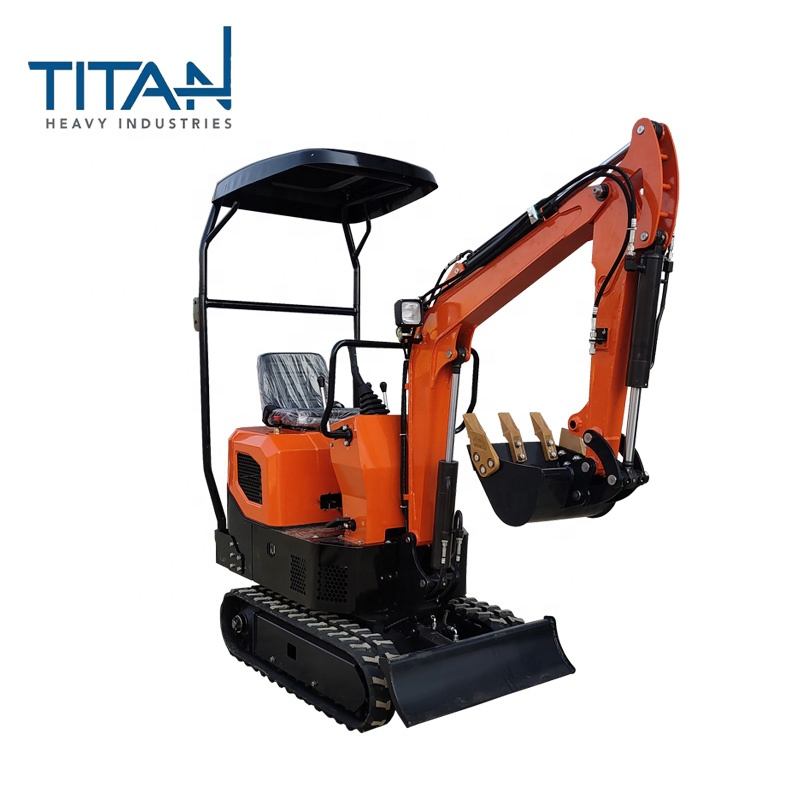

TL10E mini amphibious excavator 950kg in excavating machinery small digger

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model:TL10E
Operating Weight:950kg
Engine Model:Koop KD192F
Power:7kw / 3000rpm
Bucket Capacity:0.023m³
Drive Type:Internal Combustion
Transmission:Hydraulic
Traveling Speed:2km/h
Max Digging Depth:1715mm
Overall Width:880mm

Product Description

The TL10E mini amphibious excavator is a 950kg class excavating machine designed for efficiency in small-scale projects and tight spaces.

Main Features

  • Compact size for easy transport via light truck or small trailer (6 units fit in one 20GP container).
  • Stable quality ensured by famous brand hydraulic system components.
  • Boom deflection design tailored for narrow working conditions.
  • Reinforced rubber tracks to protect road surfaces.
  • Extended hydraulic lines for various attachment compatibility.
  • Versatile application in gardening, orchards, farming, and basement reconstruction.

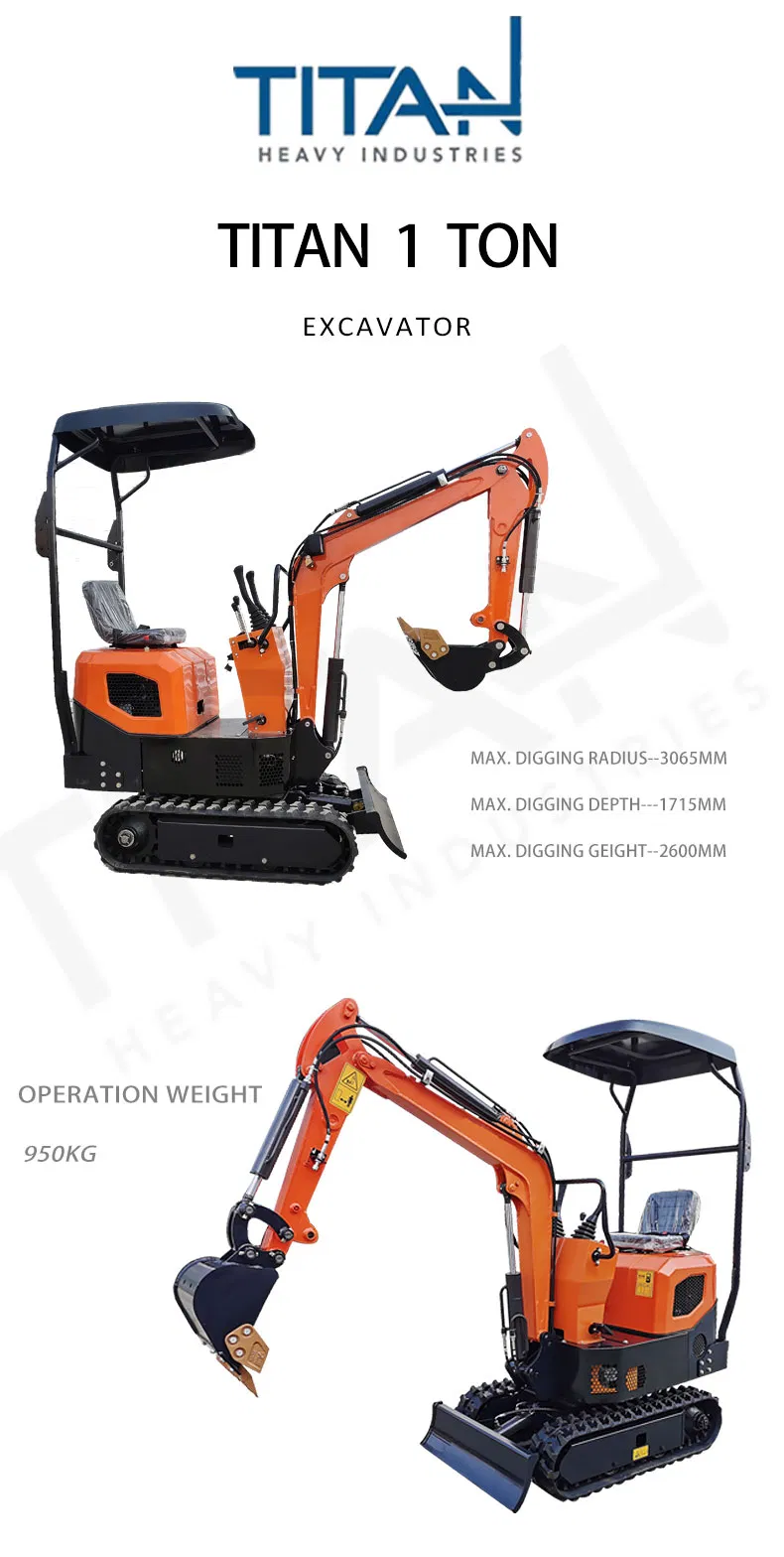

TL10E Mini Excavator
Engine System
ModelKOOP KD192F-1, Euro V Emission
TypeDirect injection, wind cooled, natural intake
Cylinders1
Performance Parameters
Swing Speedr/min0-13
Traveling Speedkm/h2
Gradeability°30°
Bucket Digging ForceKN7.2
Arm Digging ForceKN4.6
Hydraulic System
Working PressureMpa16
Pump Type-Gear Pump
Flow RateL/min18
Fuel Tank CapacityL26
Operation Dimensions
Max. Digging Radiusmm3065
Max. Digging Depthmm1715
Max. Digging Heightmm2600
Max. Dumping Heightmm1830
Overall Heightmm2200

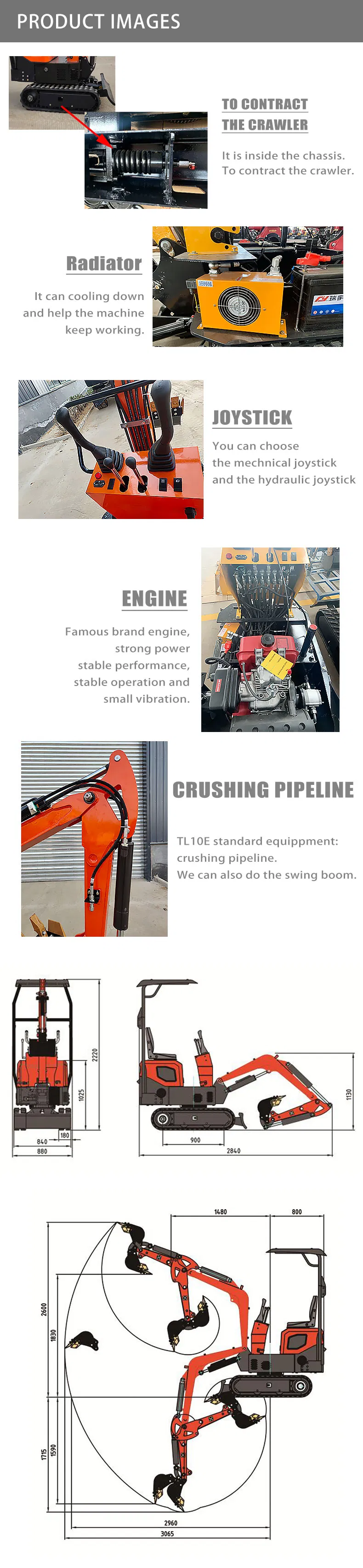

Product Details

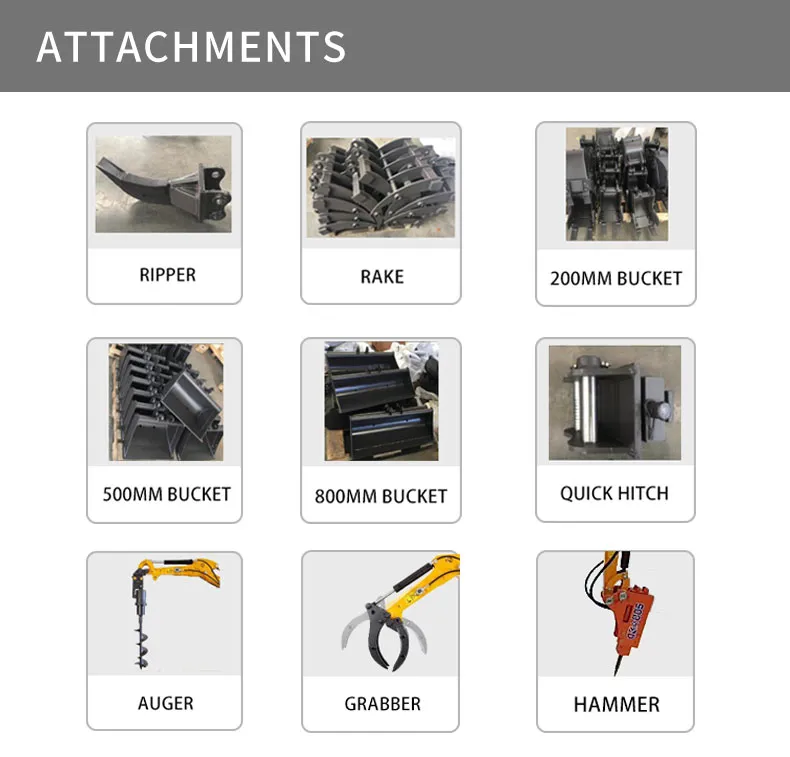

Attachments & Packing

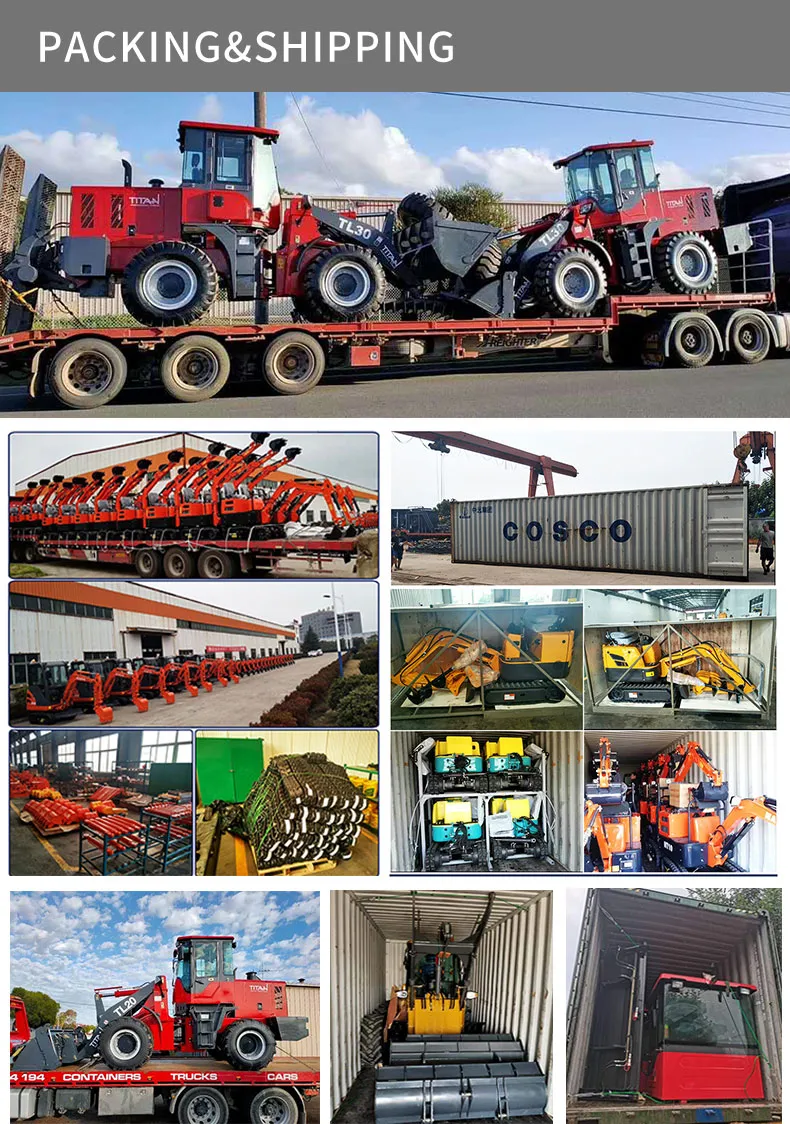

Attachments Packing and Shipping

Our Service

Pre-Sales Support

  • Inquiry and consulting support.
  • Sample testing support.
  • Factory inspection availability.

After-Sales Service

  • Comprehensive machine installation and operation training.
  • Engineers available for overseas machinery service.
Operation Gallery

Frequently Asked Questions

Q1: What is the primary use for the TL10E mini excavator? A: It is ideal for small works including gardening, orchard maintenance, farmland management, municipal projects, and vegetable greenhouses.
Q2: How is the machine transported? A: Due to its compact 880mm width and 950kg weight, it can be loaded onto light trucks or trailers. Up to 6 units can fit into a 20GP container.
Q3: What kind of engine does the TL10E use? A: It is equipped with a high-performance KOOP KD192F-1 wind-cooled diesel engine, compliant with Euro V emission standards.
Q4: Can this excavator work in very narrow spaces? A: Yes, its boom deflection design and small footprint make it perfect for working in confined areas where larger machines cannot enter.
Q5: What is the warranty and after-sales support? A: We provide life-long after-sales support including a standard one-year warranty and training on how to install and use the machine.
Q6: What are the payment and delivery terms? A: Standard delivery is typically 10-14 days after payment. Payment terms involve a 30% advance and 70% balance via T/T.
