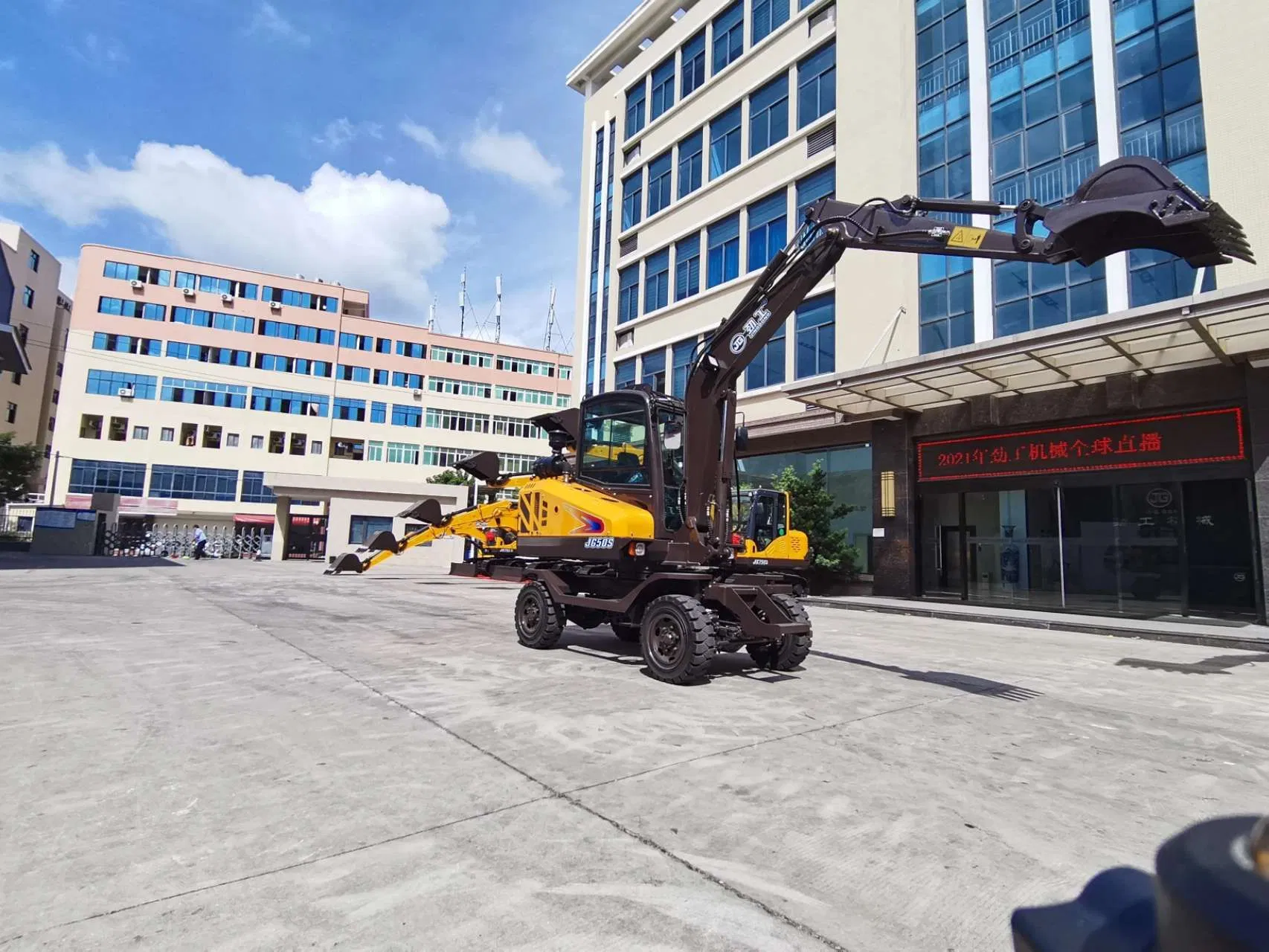

4.5 Ton Full Hydraulic Mini Wheel Excavators 4 Ton 5 Ton Wheeled Diggers Mini Excavator for Sale
4.5 Ton Full Hydraulic Mini Wheel Excavators 4 Ton 5 Ton Wheeled Diggers Mini Excavator for Sale
4.5 Ton Full Hydraulic Mini Wheel Excavators 4 Ton 5 Ton Wheeled Diggers Mini Excavator for Sale
4.5 Ton Full Hydraulic Mini Wheel Excavators 4 Ton 5 Ton Wheeled Diggers Mini Excavator for Sale
4.5 Ton Full Hydraulic Mini Wheel Excavators 4 Ton 5 Ton Wheeled Diggers Mini Excavator for Sale
1 / 5
4.5 Ton Full Hydraulic Mini Wheel Excavators 4 Ton 5 Ton Wheeled Diggers Mini Excavator for Sale
4.5 Ton Full Hydraulic Mini Wheel Excavators 4 Ton 5 Ton Wheeled Diggers Mini Excavator for Sale
4.5 Ton Full Hydraulic Mini Wheel Excavators 4 Ton 5 Ton Wheeled Diggers Mini Excavator for Sale
4.5 Ton Full Hydraulic Mini Wheel Excavators 4 Ton 5 Ton Wheeled Diggers Mini Excavator for Sale
4.5 Ton Full Hydraulic Mini Wheel Excavators 4 Ton 5 Ton Wheeled Diggers Mini Excavator for Sale

4.5 Ton Full Hydraulic Mini Wheel Excavators 4 Ton 5 Ton Wheeled Diggers Mini Excavator for Sale

Customization: Available
After-sales Service: Supported
Warranty: 1 Year
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
JG50S
Type
Wheel Excavator
Usage
Special, Mining, GM, Mini Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion
Bucket Capacity
0.12cbm
Certification
CE, ISO9001: 2000
Trademark
JingGong
Machine Weight
4500kg

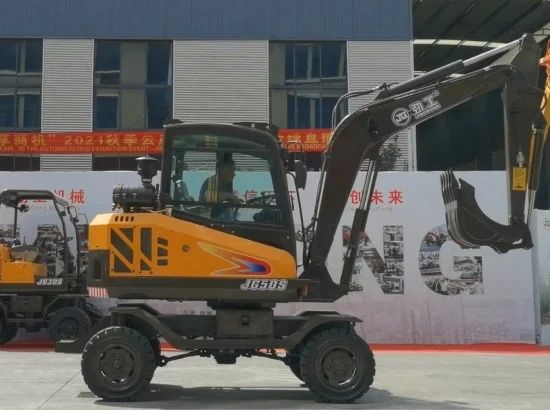

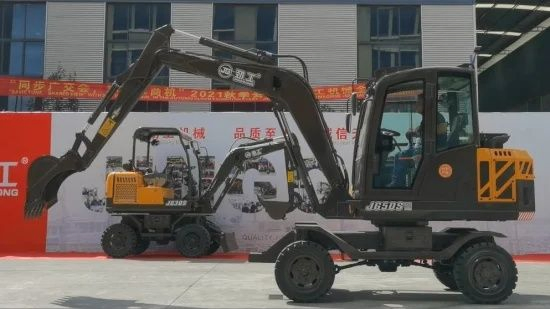

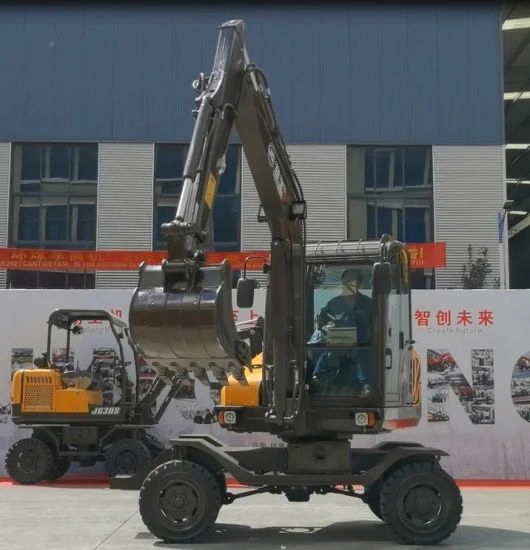

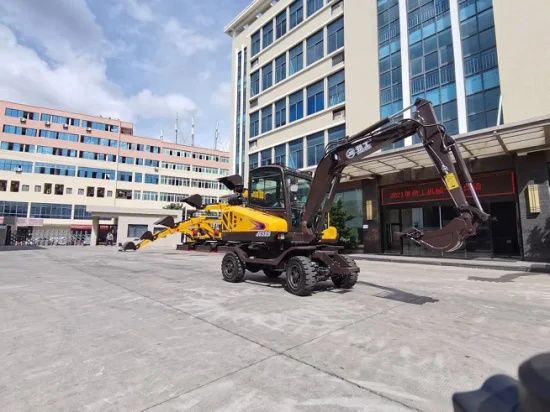

JG50S 4.5 Ton Full Hydraulic Mini Wheel Excavator

JG50S Wheel Excavator
★

Core Advantages

  • Premium Configuration: Beautiful appearance, high configuration, superior performance, and low fuel consumption with a wide working range.
  • Load-Sensing Technology: The hydraulic system provides excellent operation performance and smooth movements for precise control.
  • 360° Rotation: Ideal for safe operations in confined spaces such as vegetable greenhouses, municipal greening, orchard nurseries, and narrow construction sites.

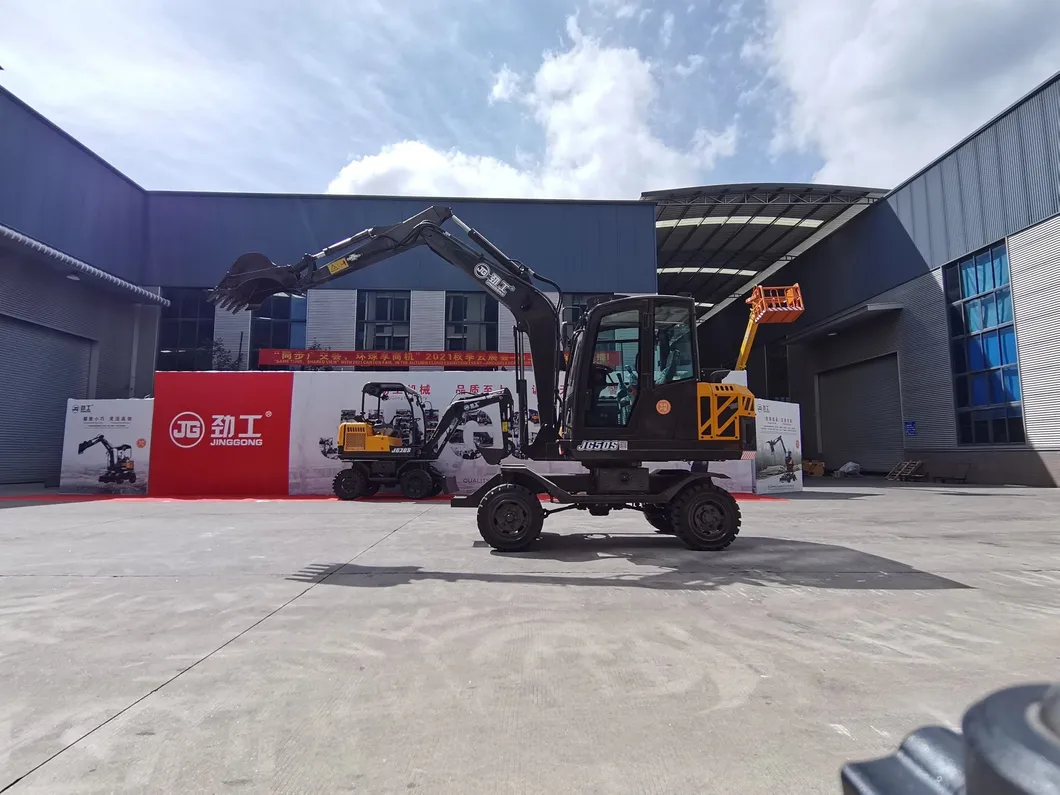

Mini Excavator Operation Compact Digger Design Wheel Excavator for Sale
⚙

Technical Parameters

RANGE OF OPERATION TECHNICAL PARAMETERS
Boom Length2000mm Engine ModelXIN CHAI
Arm Length1150mm Rated Power36.8kw / 2200r/min
Max Digging Reach5700mm Hydraulic Flow60L/min
Max Digging Depth2380mm Machine Weight4500kg
Max Digging Height5480mm Walking Speed0-12KM/h
Max Dumping Height3800mm Bucket Volume0.12m³
Overall Dimension5350*1500*2680mm Fuel Tank Capacity45L

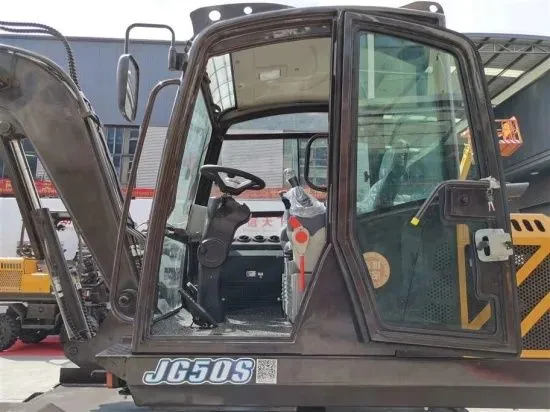

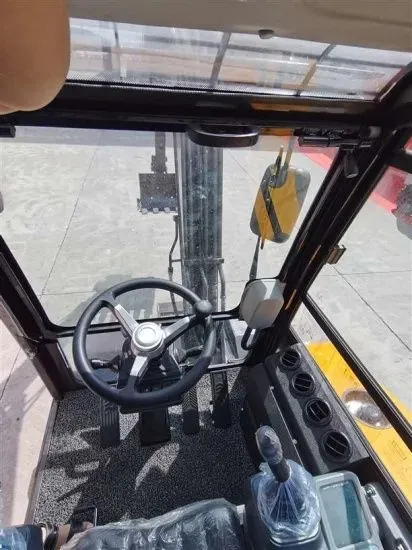

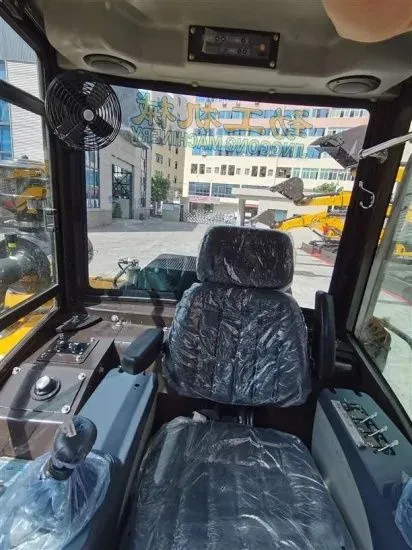

Product Detail 1 Product Detail 2 Product Detail 3
▣

Industry Expertise & Range

Providing specialized solutions in engineering, forestry, and harvesting machinery. Products are suitable for road transportation, municipal administration, gardens, farmland, and railway maintenance.

Industry Applications
Engineering: Wheel and Crawler Excavators
Forestry: Log and Sugarcane Grapple Loaders
Harvesting: Sugarcane Combine Harvesters
Railway: Sleepers changing, Ballast tamping machines

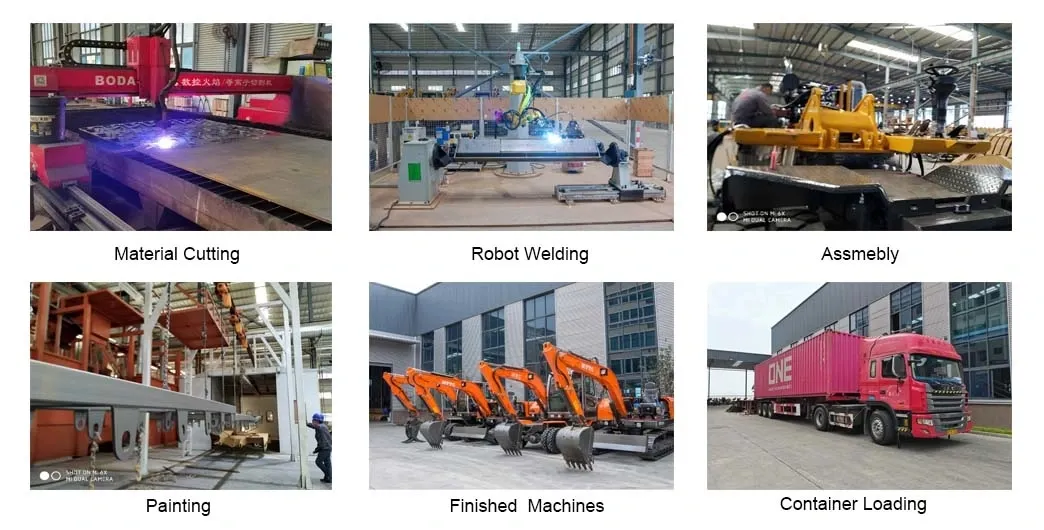

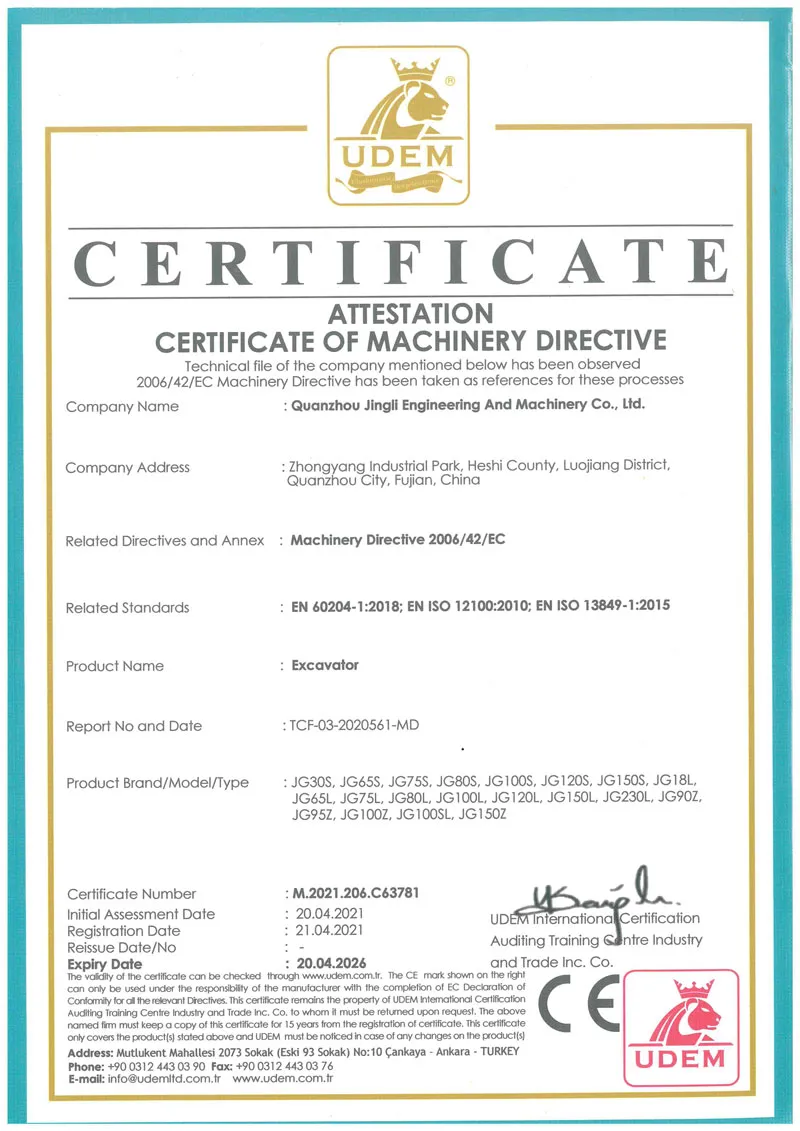

Machinery Overview Technical Drawing Certification Info
?

Frequently Asked Questions

What is the machine weight and bucket capacity of the JG50S?
The JG50S has a machine weight of 4500kg (4.5 Ton) and a standard bucket capacity of 0.12m³.
Is this excavator suitable for work in narrow spaces?
Yes, the JG50S features 360° rotation, making it perfect for safe and efficient operations in restricted areas like greenhouses, orchards, and narrow urban construction sites.
What kind of engine power does the JG50S provide?
It is equipped with a XIN CHAI engine providing a rated power of 36.8kw at 2200r/min.
What are the primary applications for this wheel excavator?
It is widely used for loosening soil, greening, tree planting, crushing concrete pavements, and mixing materials in municipal, agricultural, and garden settings.
Can the machinery be customized to specific needs?
Yes, product customization is available according to customer requirements, which is a key competitive advantage of our equipment range.
What is the maximum digging depth of this model?
The JG50S mini wheel excavator can reach a maximum digging depth of 2380mm.
