BTEra Excavator
1 / 5

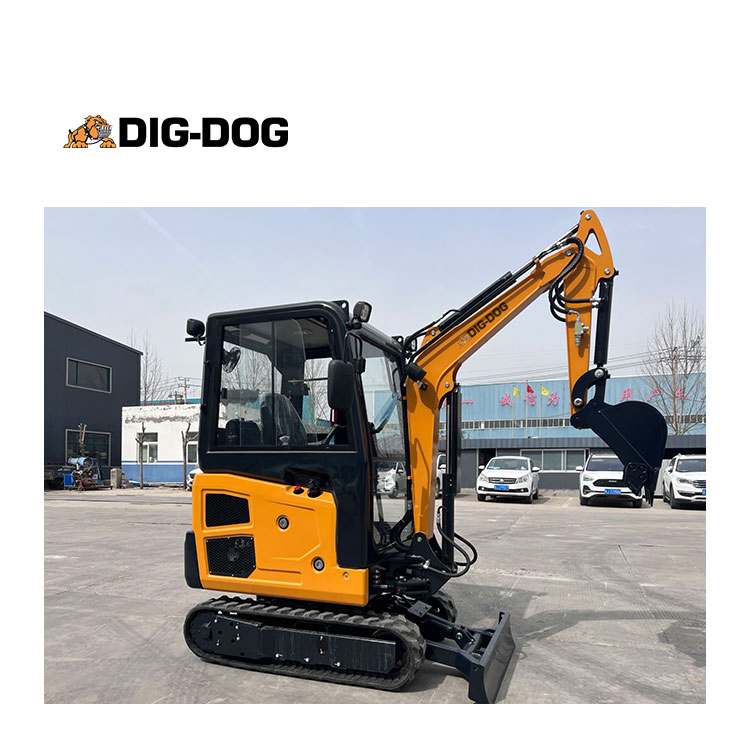

| Model NO. | DG18 | Type | Crawler Excavator |
| Usage | Special, Marine, Mining, GM Excavator | Bucket | Backhoe |
| Transmission | Hydraulic | Drive Type | Internal Combustion |
| Bucket Capacity | 0.06m³ | Engine Brand | Kubota |
| Certification | CE, ISO9001: 2000 | Condition | New |
| Power | 18.4kw | HS Code | 8429521200 |

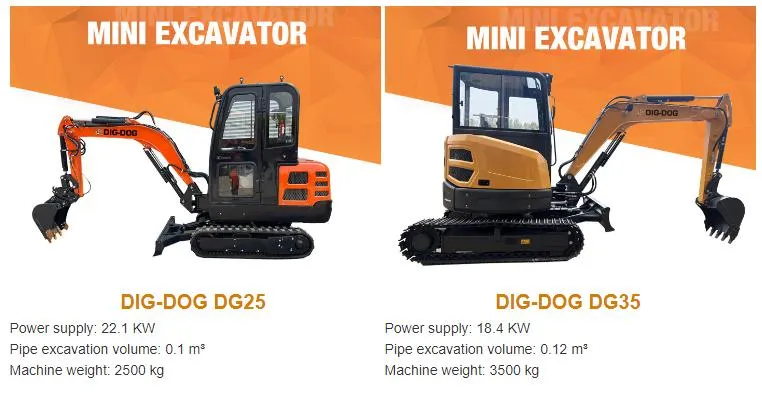

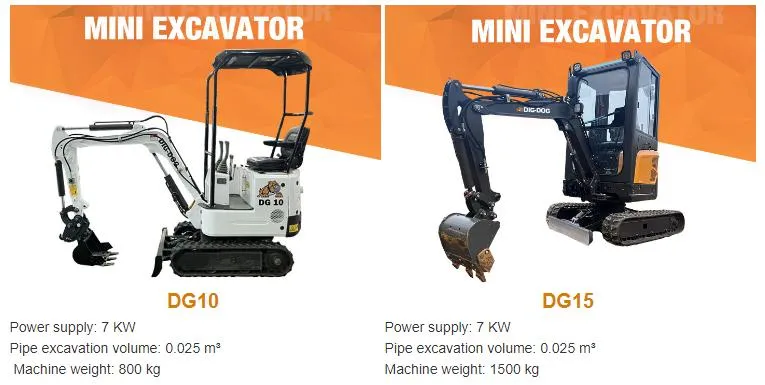

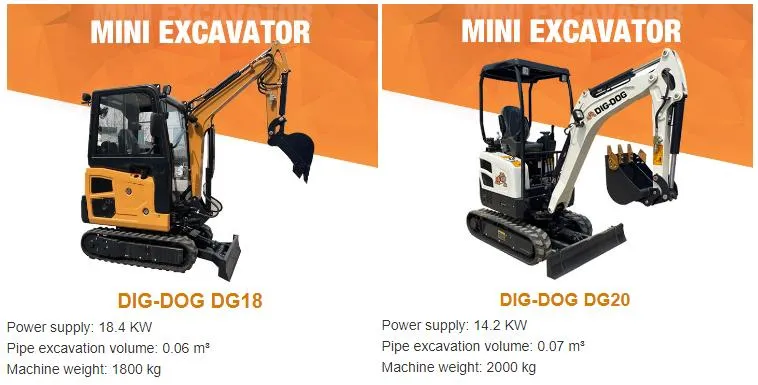

For Consumers: Our products offer an affordable solution with a long service life. Models range from 1 ton to 20 tons to meet diverse operational needs with support for customization.

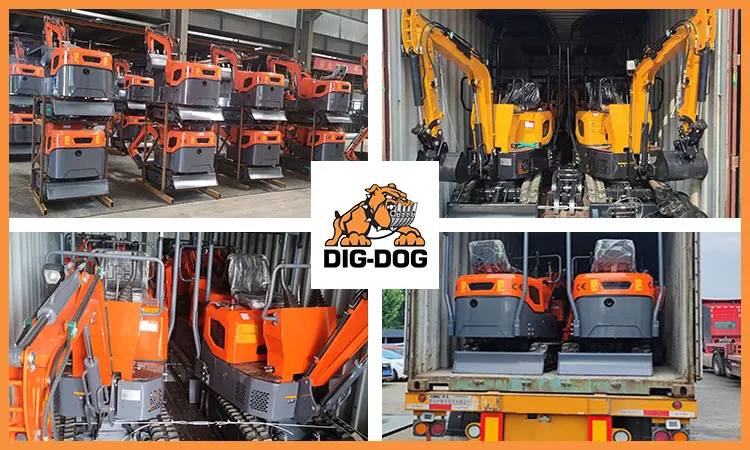

For Suppliers: We provide competitive profit margins and comprehensive after-sales service (1-3 years). All units undergo rigorous testing before leaving the factory. We also support customized colors and branding requirements.

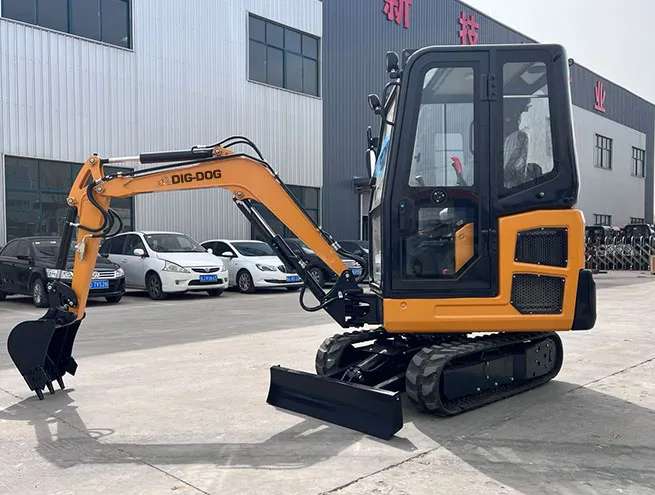

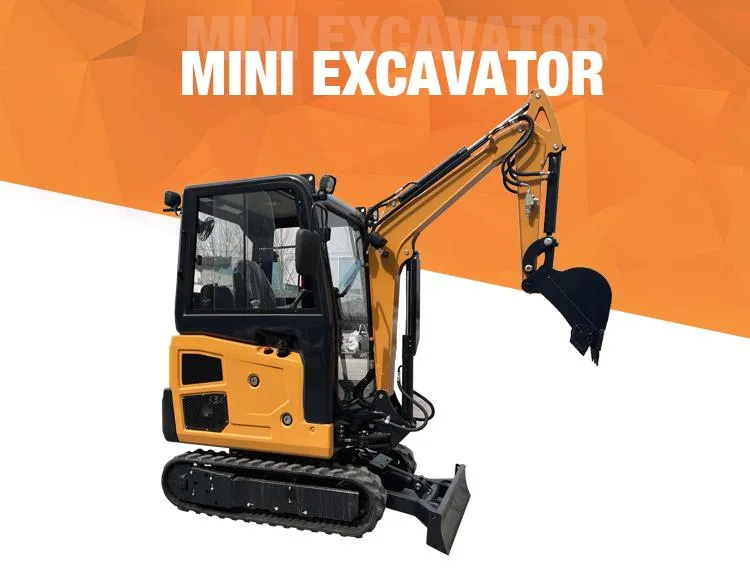

Latest Configuration Notice: Mini Excavators can now be equipped with an enclosed cab and air conditioning, alongside high-power brand engines to ensure a superior work experience.
Small wing structure and boom-side-shift option for narrow-space operations.

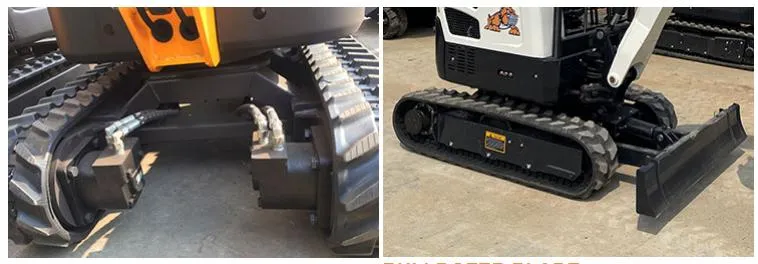

Retractable chassis and changeable rubber tracks for versatile terrain adaptability.

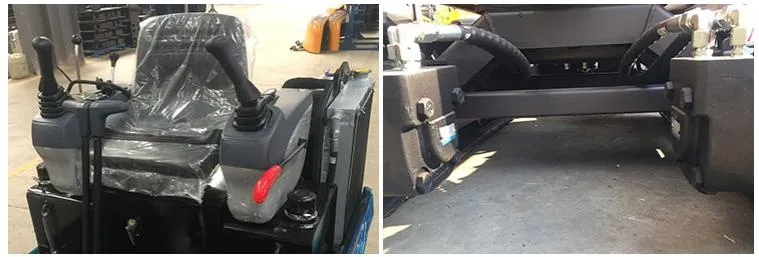

Load pilot operating system with Eaton walking and rotary motors.
Environmental protection standard (Euro V/EPA) compliant engines.

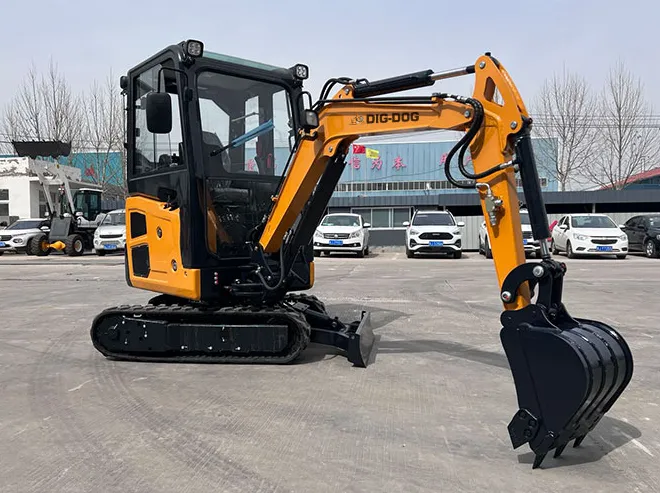

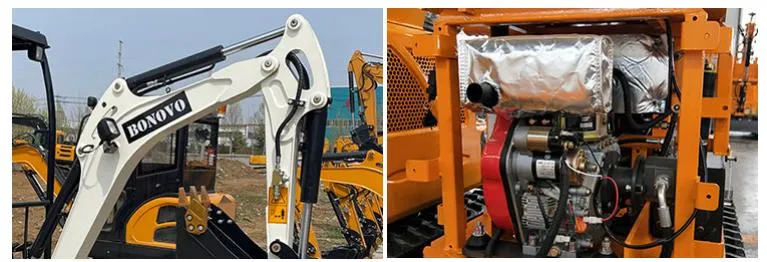

Bucket cutting plates are manufactured from special wear-resistant steel, designed for heavy-load requirements. Thickened steel plates and side reinforcing plates significantly improve wear resistance during operation.
The system features a new cooling fan and large muffler to reduce operational noise. Advanced turbocharging technology enhances plateau adaptability, while the unique funnel mouth fan cover improves air intake and heat dissipation.

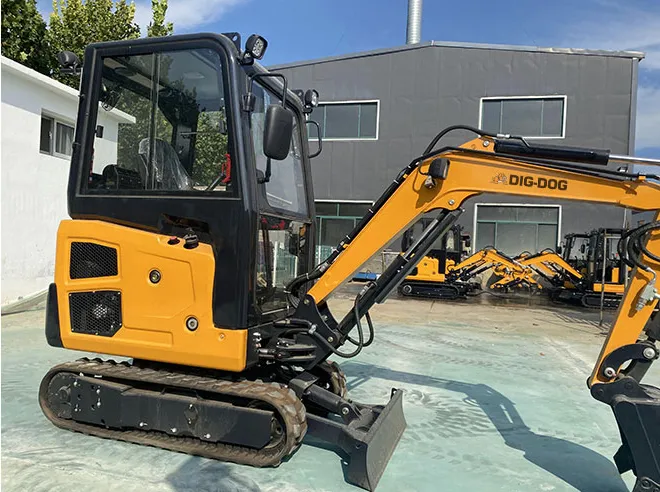

| Operating Weight | 1800kg |
| Bucket Width | 435mm |
| Engine Type | 3-cylinder (Euro V/EPA) |

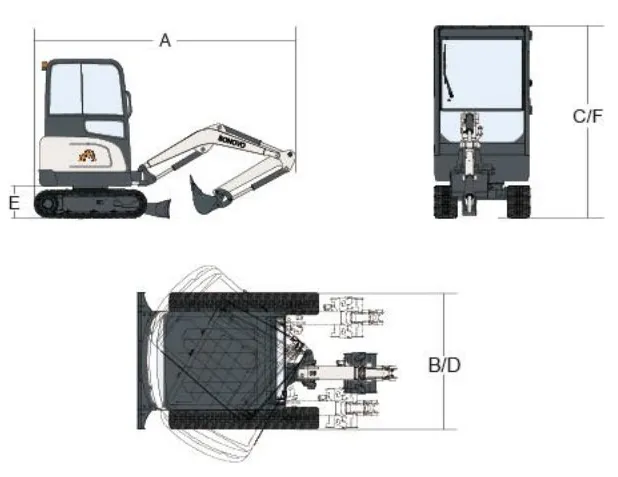

| Overall Length | 3865mm |
| Overall Width | 1050mm |
| Overall Height | 2270mm |

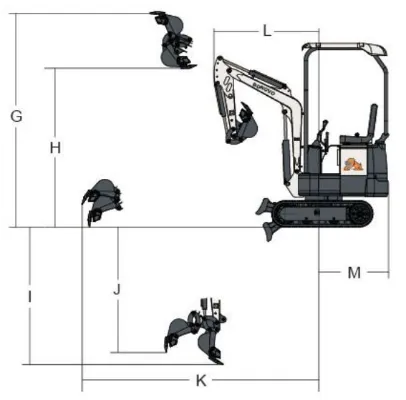

| Max Digging Height | 3365mm |
| Max Dumping Height | 2385mm |
| Max Digging Depth | 2050mm |
| Max Digging Radius | 3860mm |
Side swing support for various accessories, improving working speed while reducing fuel consumption.
Provides more convenient and stable control for a superior driving and work experience.

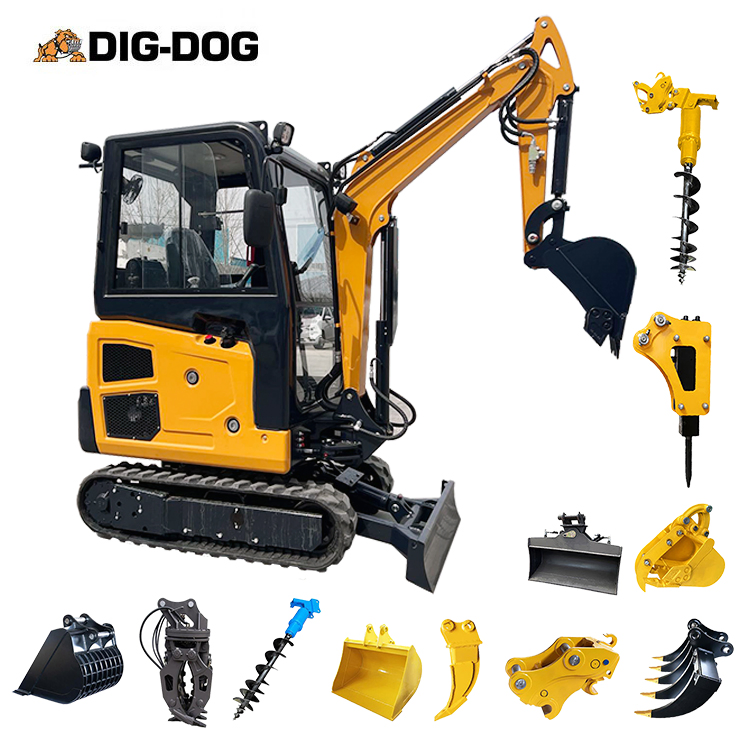

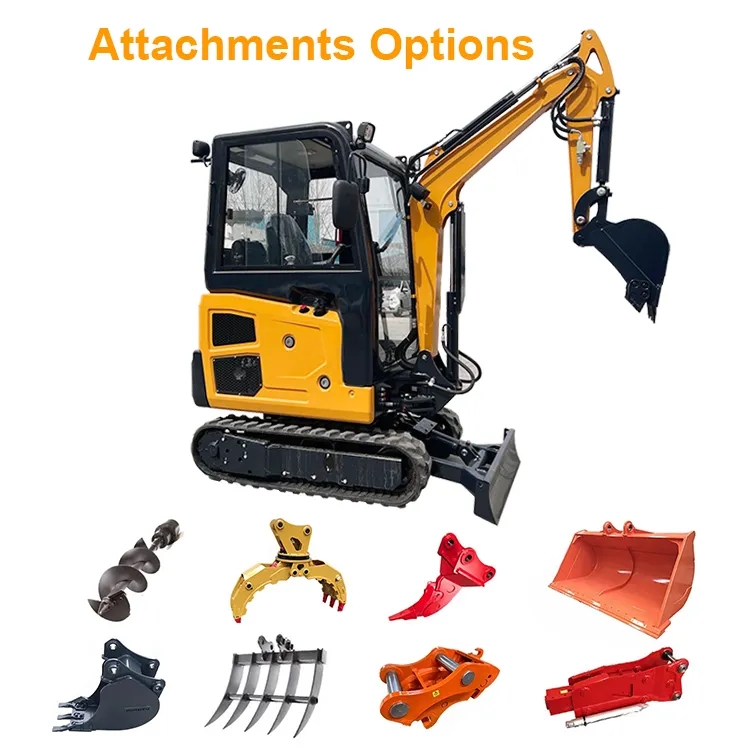

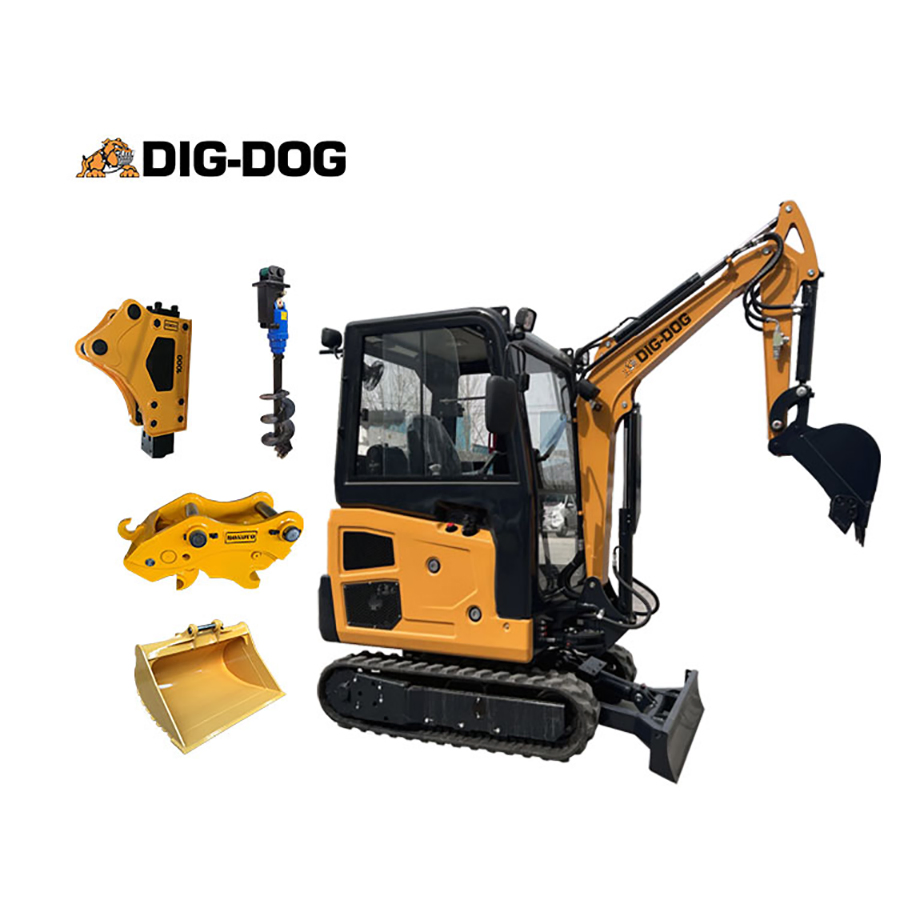

Standard Configuration: Broken pipeline for crushing hammers, wood grabbers, and augers. Interchangable iron and rubber tracks for various construction conditions.
Customized Options: Quick change couplers, hydraulic thumbs, narrow buckets (260-300mm), and cleaning buckets (800-1000mm).
We are dedicated to excavation projects in the construction machinery market. We provide multi-functional excavators and full ranges of customized attachments to handle loading, transporting, trenching, and road laying.
