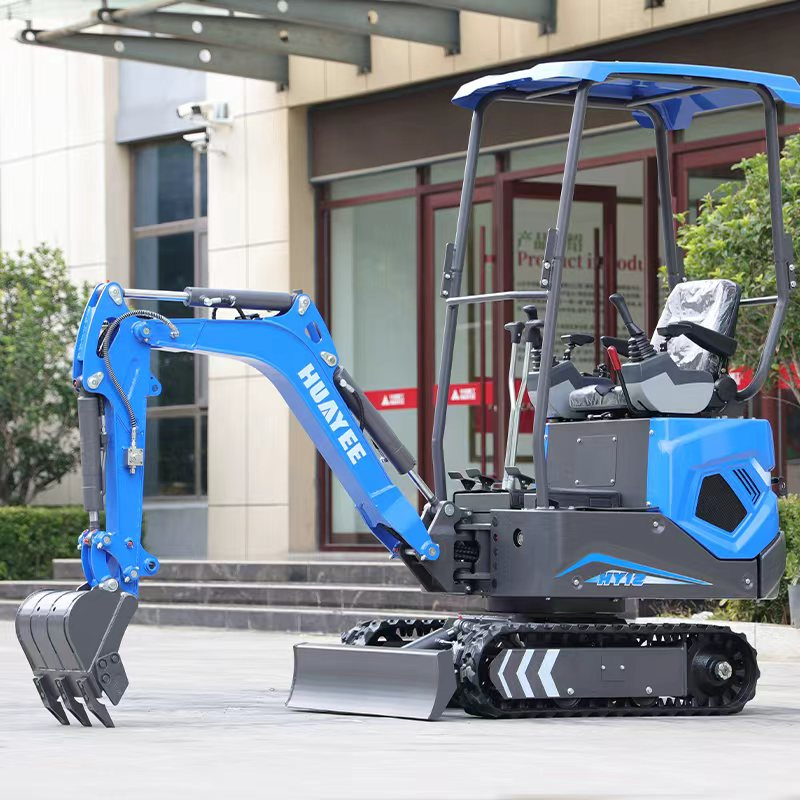

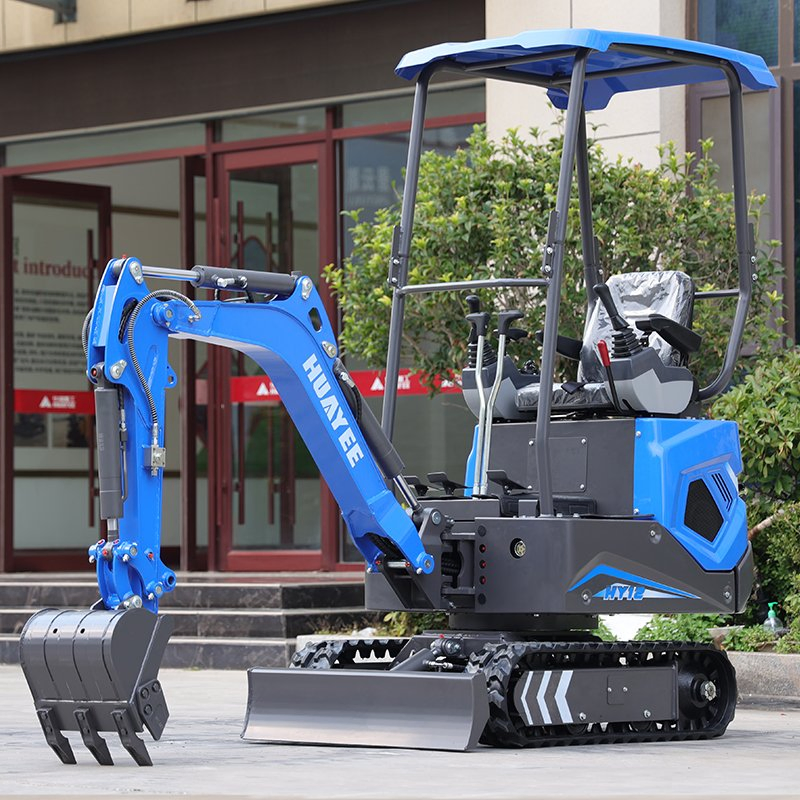

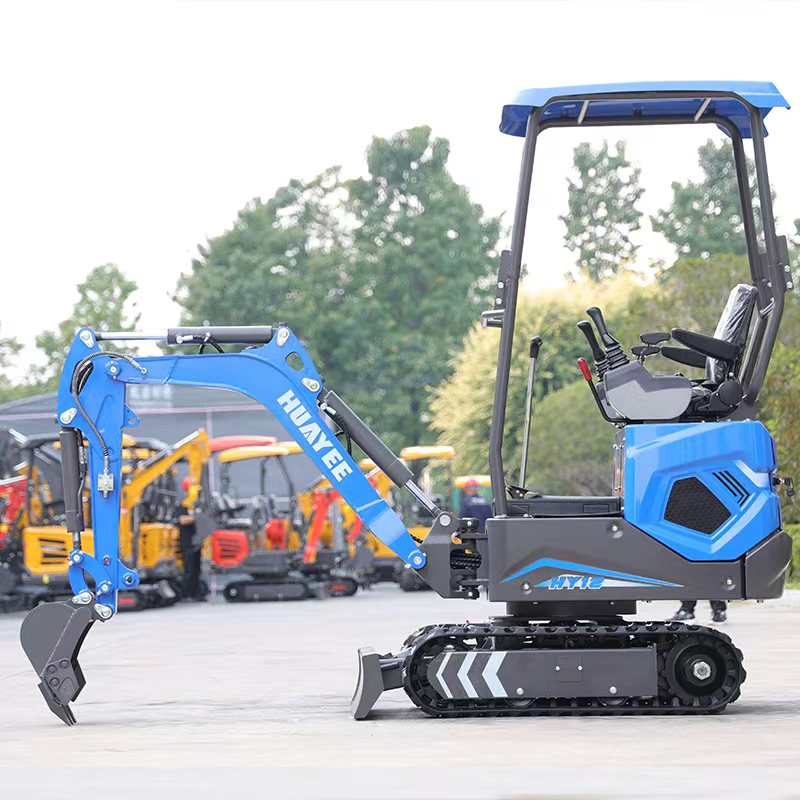

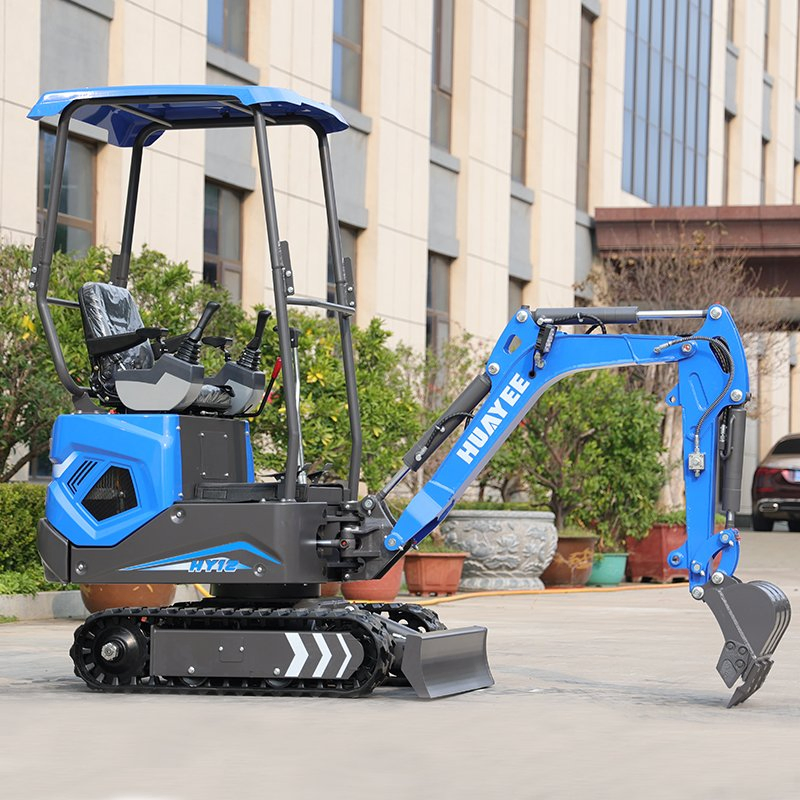

Welcome to our professional manufacturing facility. We specialize in the production of high-quality small excavators designed to meet diverse operational needs. Whether you require a machine for specialized mining, marine projects, or household landscaping, our range of customizable excavators delivers exceptional efficiency and durability.
| Basic Info | |

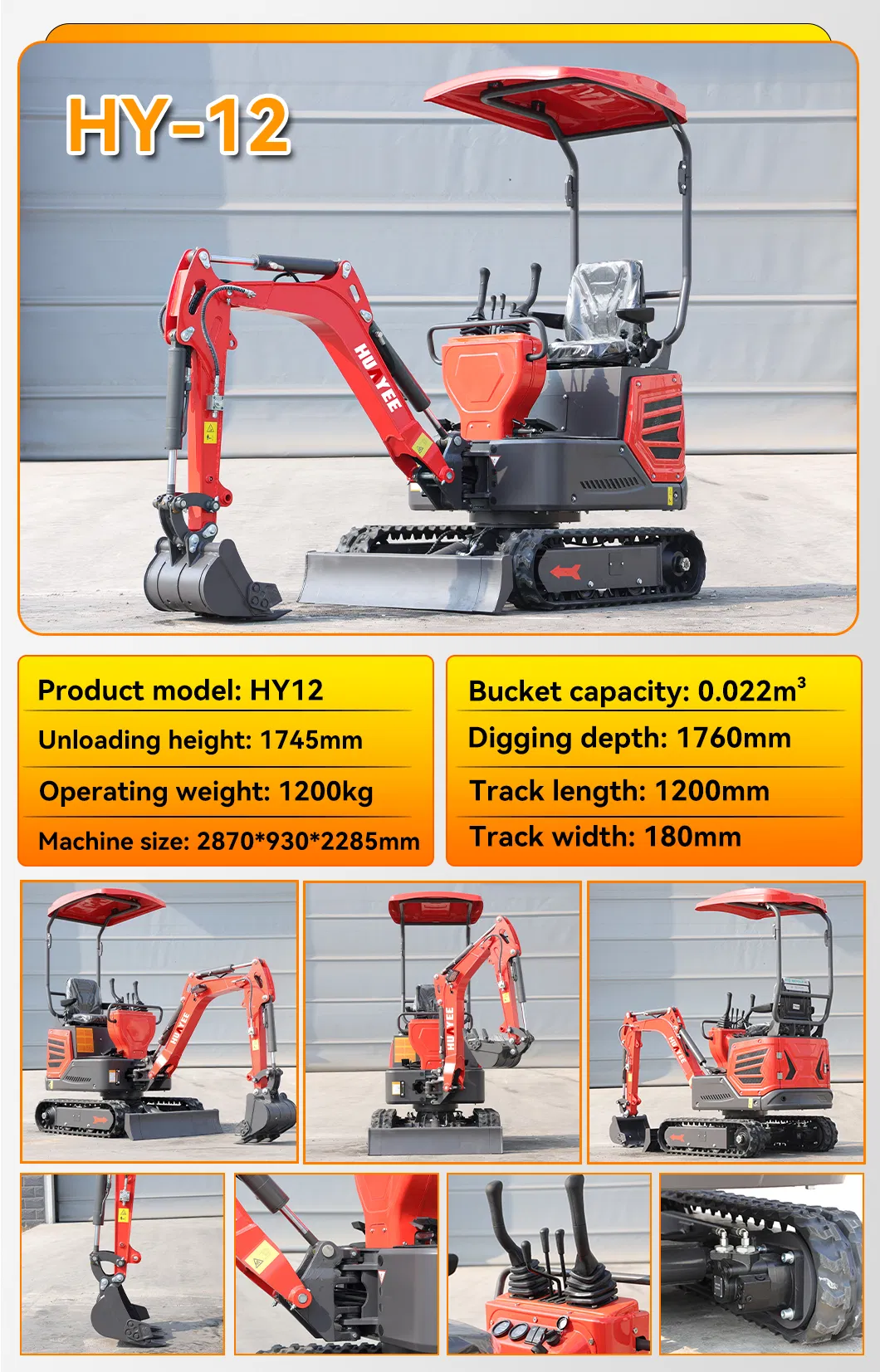

| Model | HY12 |
| Type | Crawler Excavator |
| Bucket | Backhoe (0.022 m³) |
| Transmission | Hydraulic Transmission |
| Operating Weight | 1200 kg |
| Engine Power | 10 HP (KOOP192FA) |
| Fuel Tank Volume | 5.5 L |
| Max. Digging Height | 2490 mm |
| Max. Digging Depth | 1725 mm |
| Max. Digging Radius | 2940 mm |
| Transport Dimensions | 2870 * 930 * 2030 mm (Without Canopy) |
| Scope of Work & Dimensions | |
| Overall Length (Transport) | 2870 mm |
| Overall Width | 930 mm |
| Overall Height (With Roof) | 2285 mm |
| Bulldozer Width/Height | 937 mm / 210 mm |
| Maximum Unloading Height | 1745 mm |
| Minimum Turning Radius | 1490 mm |
| Standard Track Shoe Width | 180 mm |
| Platform Ground Clearance | 405 mm |
Quality is defined by attention to detail. Our mini excavators are built to last with high-end components:
• TUV Certified Quality Control
• Factory Visitation Support
• Multiple Secure Payment Methods
• Professional Consultation Team
• Production Process Visualization
• Packaging Process Inspection
• Real-time Transportation Tracking
• 1-3 Year Warranty Service
• Lifetime VIP Technical Support
• Exclusive Discounts for Returning Clients
Superior Engineering: Our machines undergo rigorous testing to ensure reliability and durability in the toughest conditions.
Powerful Performance: Compact design for tight spaces without sacrificing power for digging, trenching, and material handling.
Fuel Efficiency: Optimized engines reduce long-term operational costs and environmental impact.
Versatility: Support for various attachments including different bucket sizes, hydraulic thumbs, and augers.
A: Our 1-ton mini excavators typically offer a digging depth ranging from 1.5 to 2 meters, depending on the specific configuration and model chosen.
A: They are designed with high-efficiency engines that consume significantly less fuel than standard models, making them perfect for cost-effective extended use.

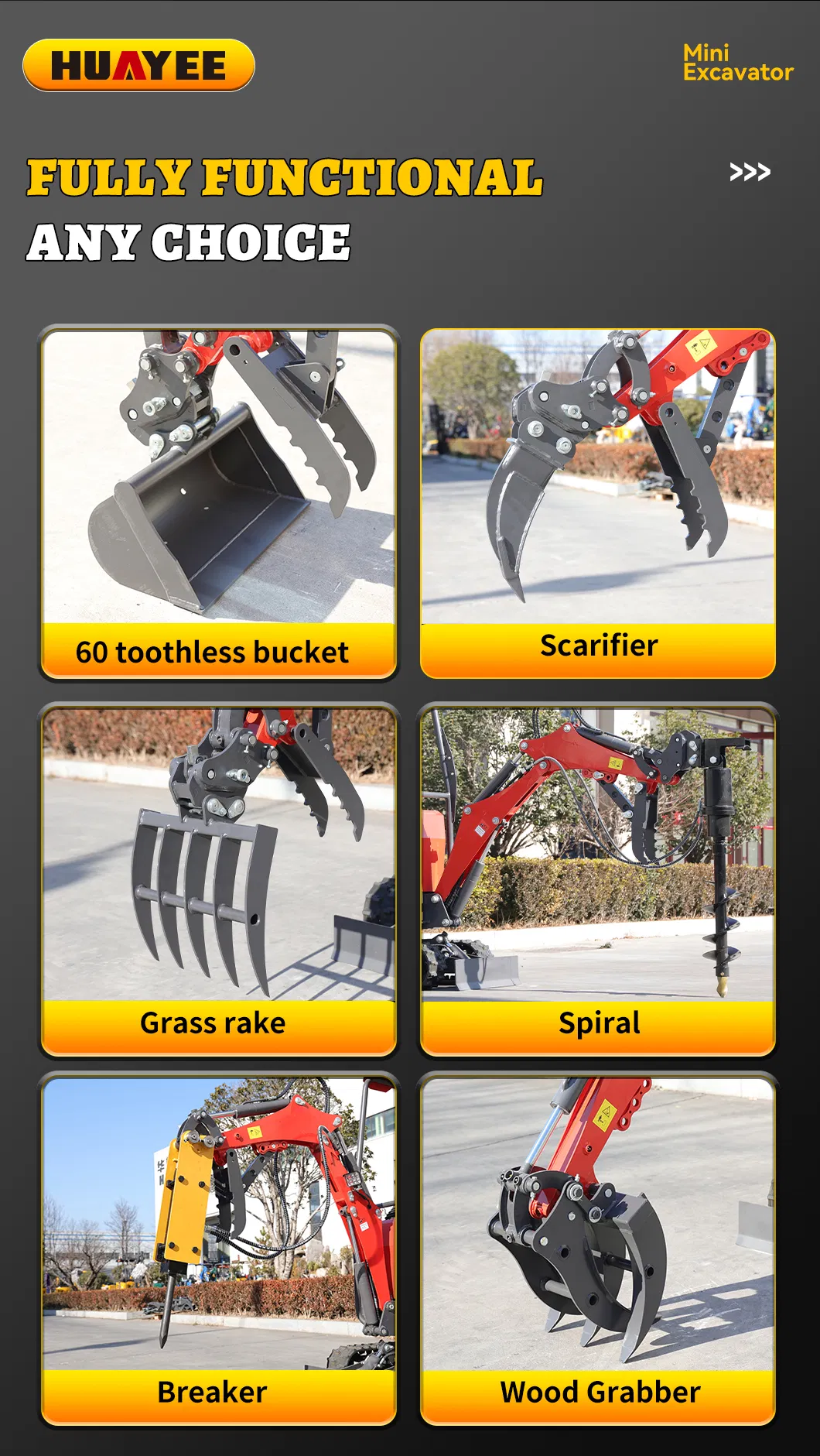

A: Yes, we offer a wide range of attachments including multiple bucket sizes, hydraulic thumbs, augers, and rakes to suit various job requirements.
A: We typically provide a 1-2 year warranty on major components, with extended service options available based on your location and model.
A: For optimal performance, we recommend regular servicing every 500 operational hours. Detailed maintenance schedules are provided in the user manual.
A: Absolutely. With an overall width of just 930mm, these mini excavators are ideal for urban construction, indoor renovations, and tight garden spaces.
