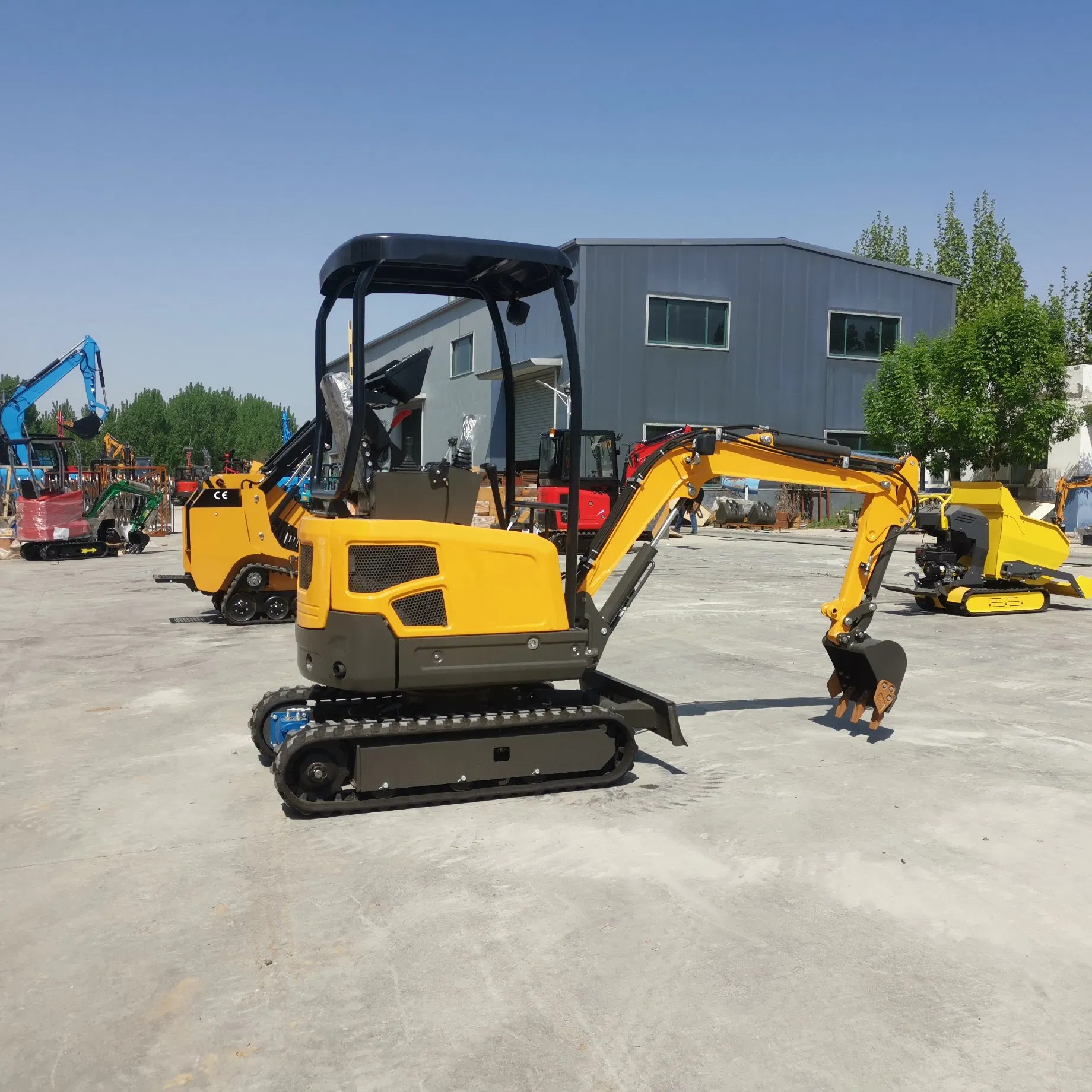

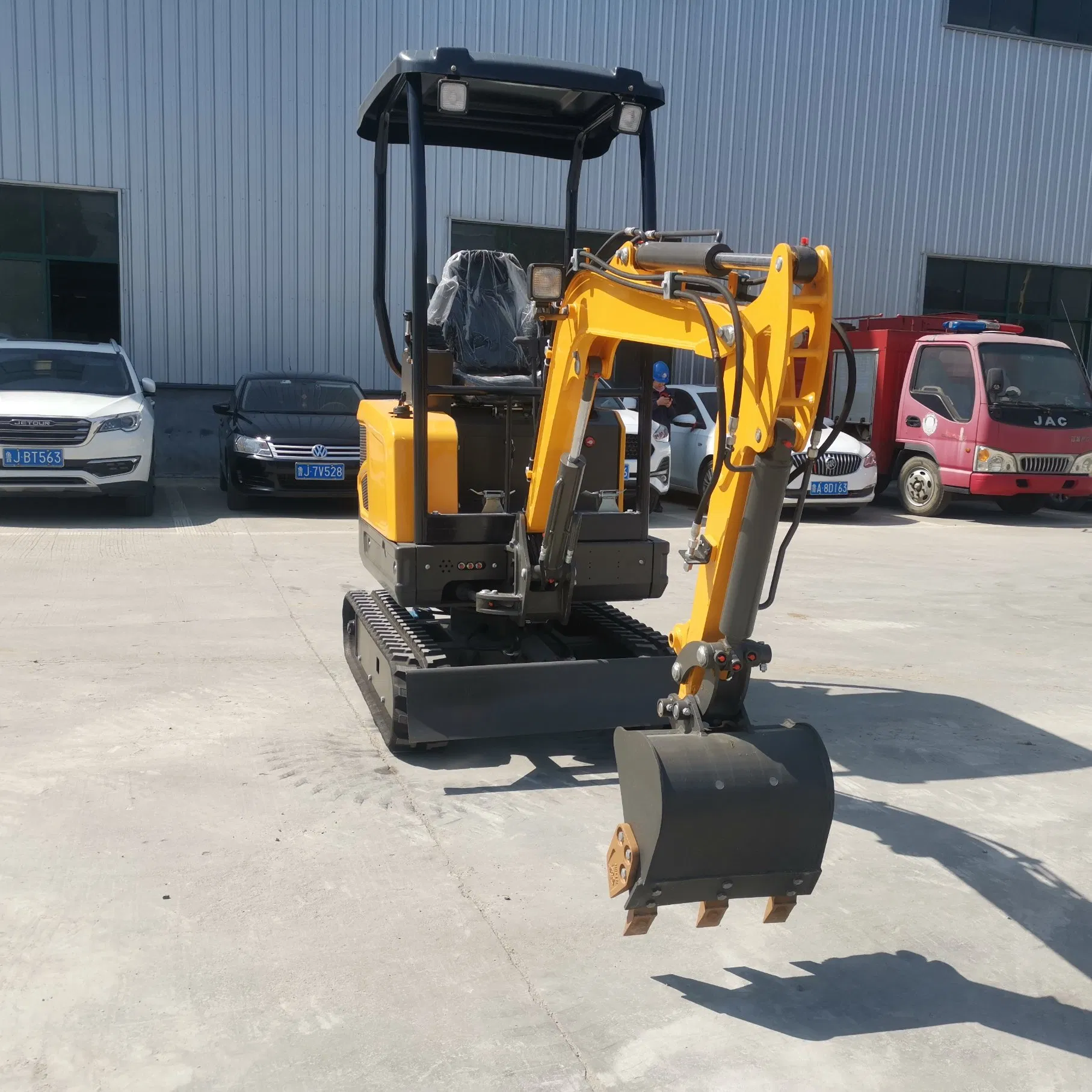

Mini Digger CE/EPA Compact Mini Excavators 1.5 Ton with Hydraulic Thumb Hammer and Bucket
Mini Digger CE/EPA Compact Mini Excavators 1.5 Ton with Hydraulic Thumb Hammer and Bucket
Mini Digger CE/EPA Compact Mini Excavators 1.5 Ton with Hydraulic Thumb Hammer and Bucket
Mini Digger CE/EPA Compact Mini Excavators 1.5 Ton with Hydraulic Thumb Hammer and Bucket
Mini Digger CE/EPA Compact Mini Excavators 1.5 Ton with Hydraulic Thumb Hammer and Bucket
1 / 5
Mini Digger CE/EPA Compact Mini Excavators 1.5 Ton with Hydraulic Thumb Hammer and Bucket
Mini Digger CE/EPA Compact Mini Excavators 1.5 Ton with Hydraulic Thumb Hammer and Bucket
Mini Digger CE/EPA Compact Mini Excavators 1.5 Ton with Hydraulic Thumb Hammer and Bucket
Mini Digger CE/EPA Compact Mini Excavators 1.5 Ton with Hydraulic Thumb Hammer and Bucket
Mini Digger CE/EPA Compact Mini Excavators 1.5 Ton with Hydraulic Thumb Hammer and Bucket

Mini Digger CE/EPA Compact Mini Excavators 1.5 Ton with Hydraulic Thumb Hammer and Bucket

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
HX15
Type
Crawler Excavator
Usage
Mining Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.5~1.0m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Origin
China
HS Code
8429521200
Product Features

Mini Digger CE/EPA Compact Mini Excavators 1.5 Ton with Hydraulic Thumb Hammer and Bucket

✔ The easy operation and convenient operation device are in line with the new generation human engineering working environment.
✔ The engine has the features of strong power, low noise, low emission, low fuel consumption, and convenient maintenance. Performance meets highest European levels.
✔ The strengthened crawler enhances the wear resistance of the track effectively and prolongs the service life.
✔ Reasonable hydraulic layout facilitates the inspection and maintenance of hydraulic system.
✔ Precise instrument acts as an intelligent monitoring housekeeper for the excavator.

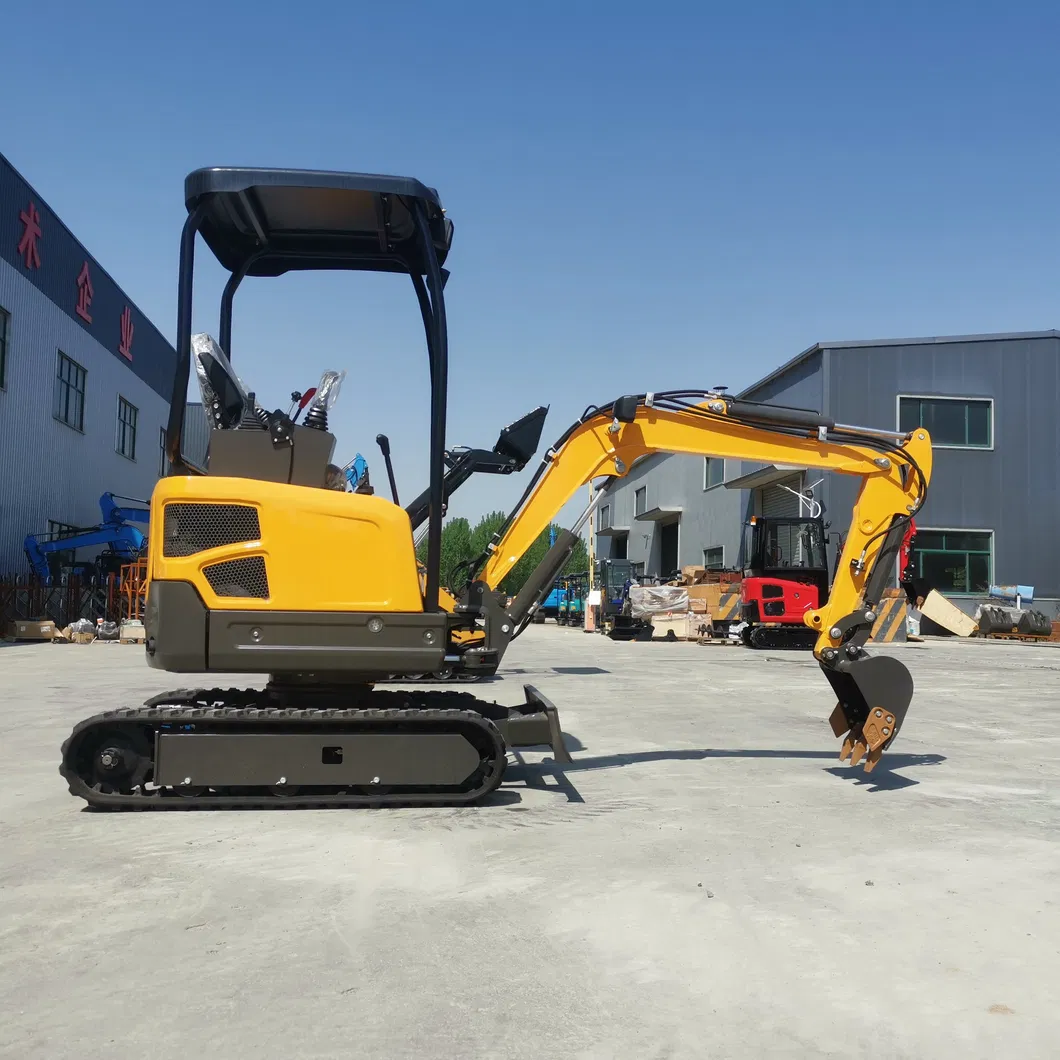

Mini Excavator Main View

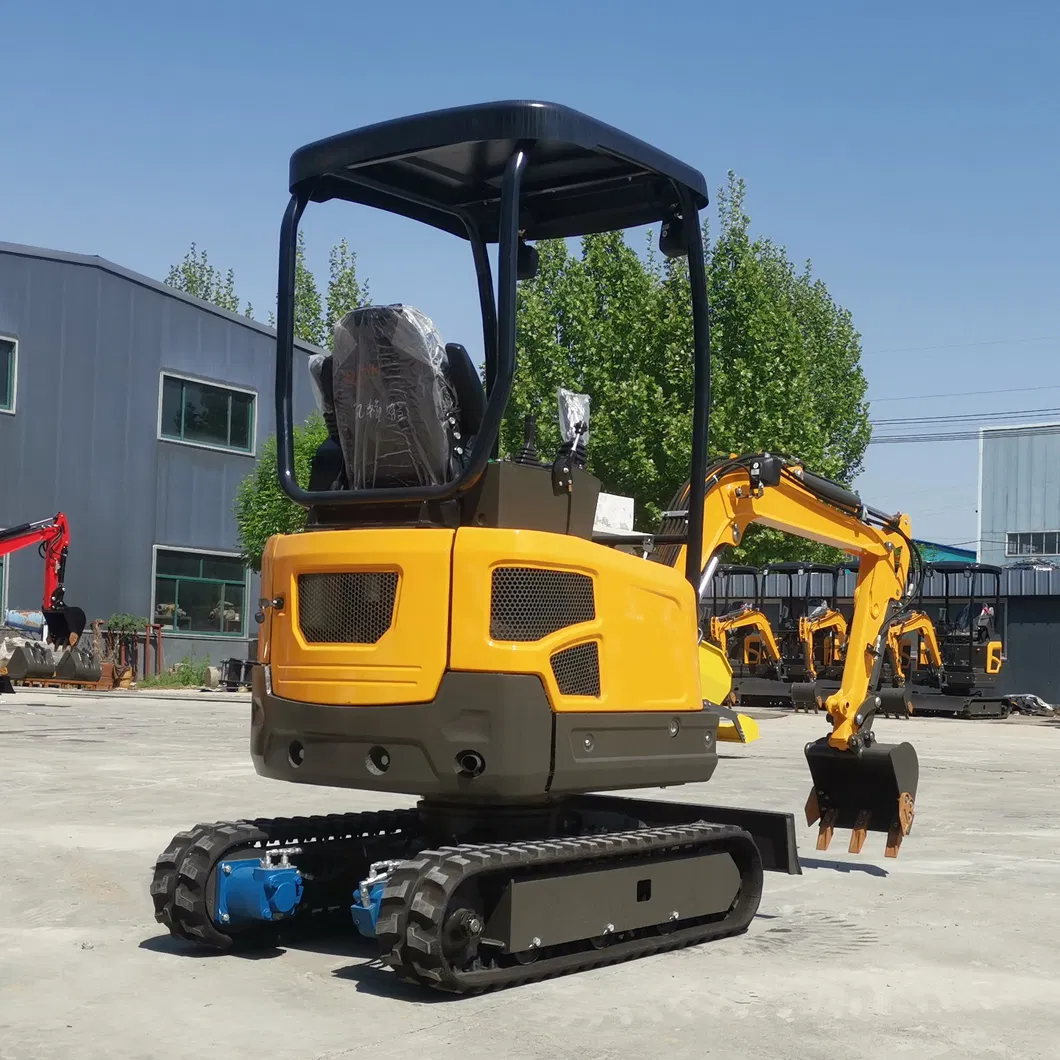

Mini Digger Detail 1
Mini Digger Detail 2

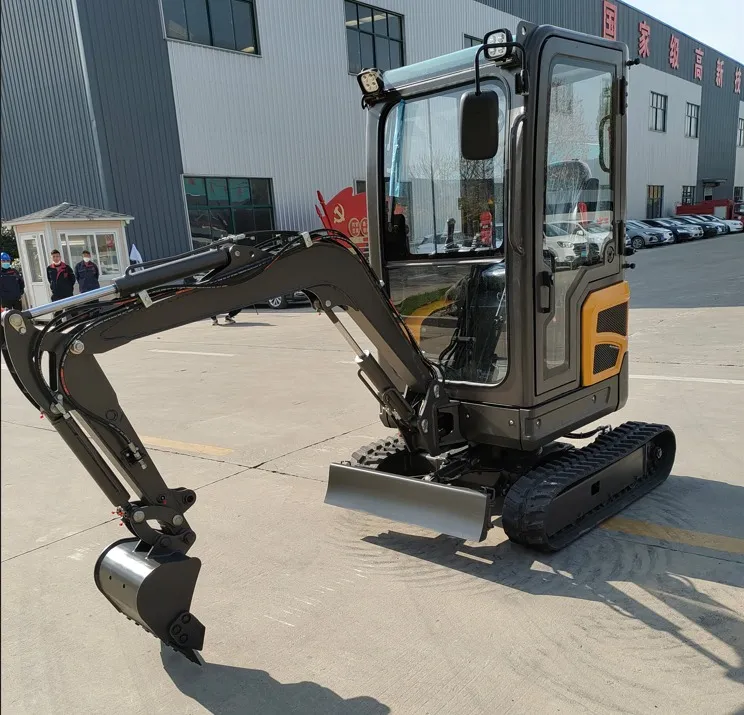

Mini Digger Detail 3
Technical Specifications (HX15/HX15T)
ENGINE
Make / ModelKUBOTA / D722
Power / Rotation speed10.4kw @ 2500rpm
Number of cylinders3
TypeIn-line, water cooled, 4-stroke, natural aspirated
Max. torque45Nm / 2500rpm
PERFORMANCE PARAMETER
Standard Bucket capacity0.025m³
Swing speed12 rpm
Maximum Grade ability58% (30°)
Machine weight1400kg (canopy) / 1500kg (cabin)
MACHINE SIZE
Overall dimension (L*W*H)3329mm * 990mm * 2267mm
Track length on ground1190mm
WORKING RANGE
Maximum Digging height2955mm
Maximum Digging depth2017mm
Maximum Digging distance3529mm

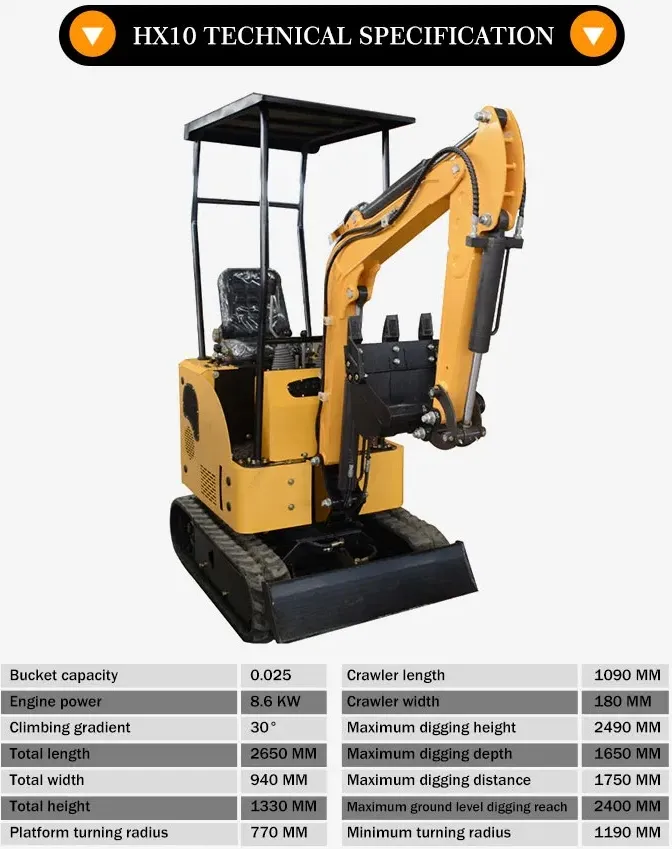

Excavator Part 1

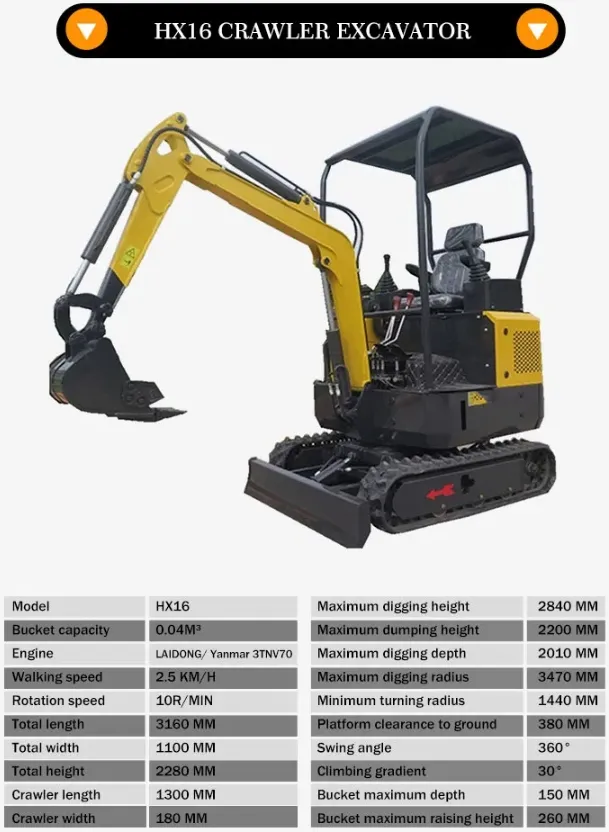

Excavator Part 2

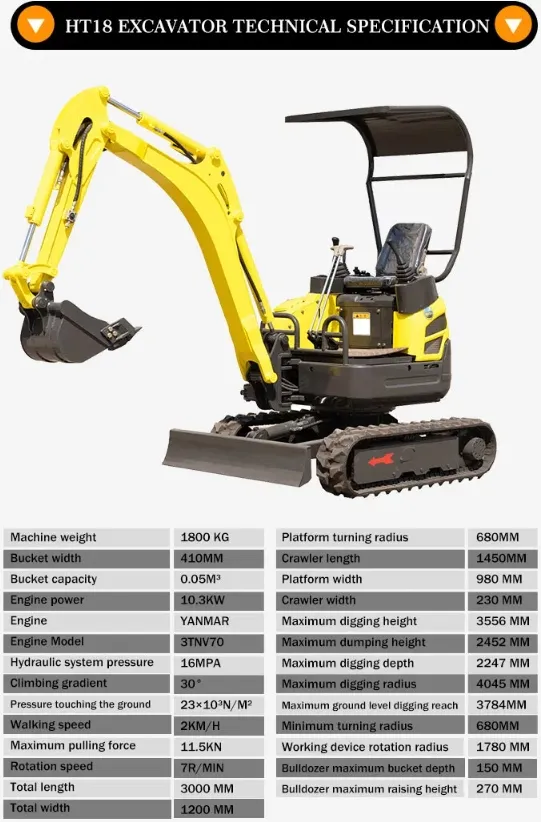

Excavator Part 3

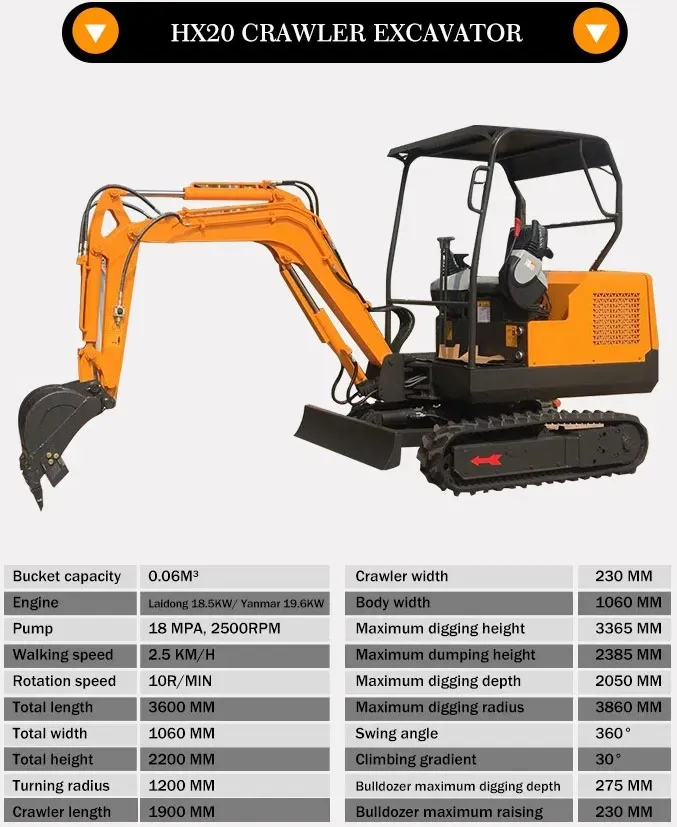

Excavator Part 4
Why Choose Our Mini Excavators
  • ● Direct factory supplier with high-quality control.
  • ● Competitive price with excellent performance.
  • ● Response quickly with effective information within 12 hours.
  • ● Highly trained professional R&D and Technical Support Team.
  • ● Exported globally including Southeast Asia, Africa, and Europe.

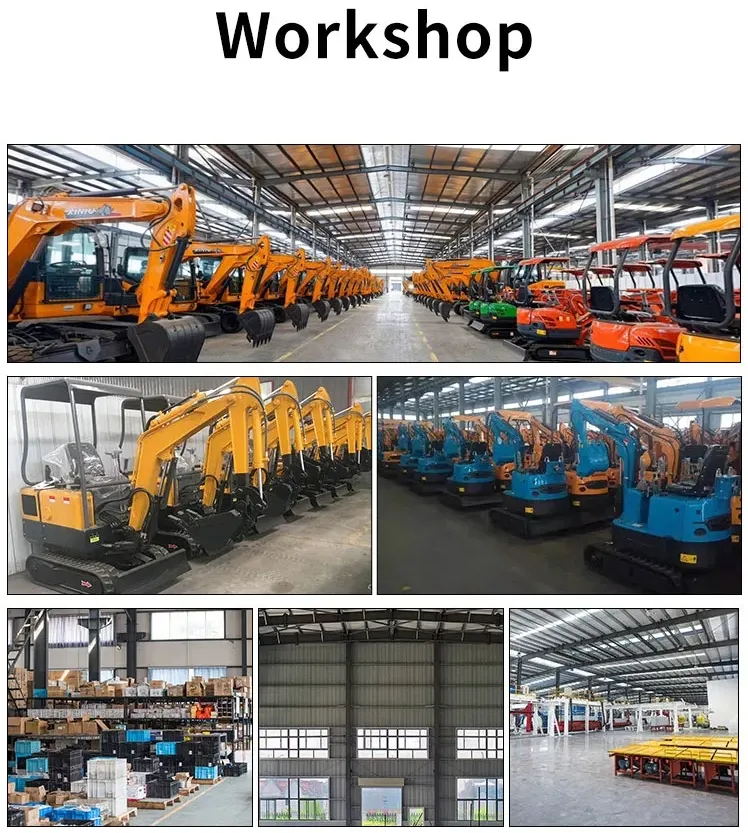

Operational View
Dimensions Detail
Engine Components
Attachment Variety
FAQ
What kind of payment terms are accepted?
We accept a 30% initial deposit to start production, and the remaining 70% when goods are ready before delivery via T/T. L/C or Trade Assurance are also acceptable options.
What is the typical delivery period?
Generally, goods can be delivered within 5 working days after receiving the deposit. For large orders, delivery times will be negotiated based on quantity and destination.
What is the minimum order quantity (MOQ)?
The MOQ is 1 set. We can provide wooden box packaging for LCL shipping to ensure safety for single-unit orders.
Can you customize products with our logo or specific colors?
Yes, we accept OEM and ODM orders. We can customize the brand logo and machine color according to your requirements.
How do you guarantee the quality of your mini diggers?
With over 10 years in the industry, our technology is mature. Every product undergoes strict testing and commissioning before delivery to ensure performance and reliability.

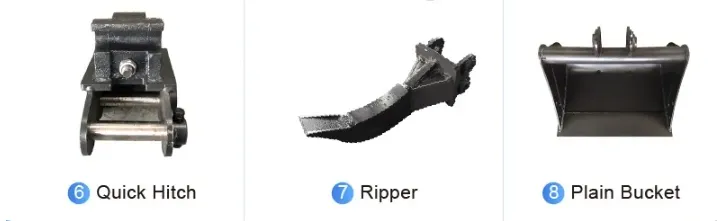

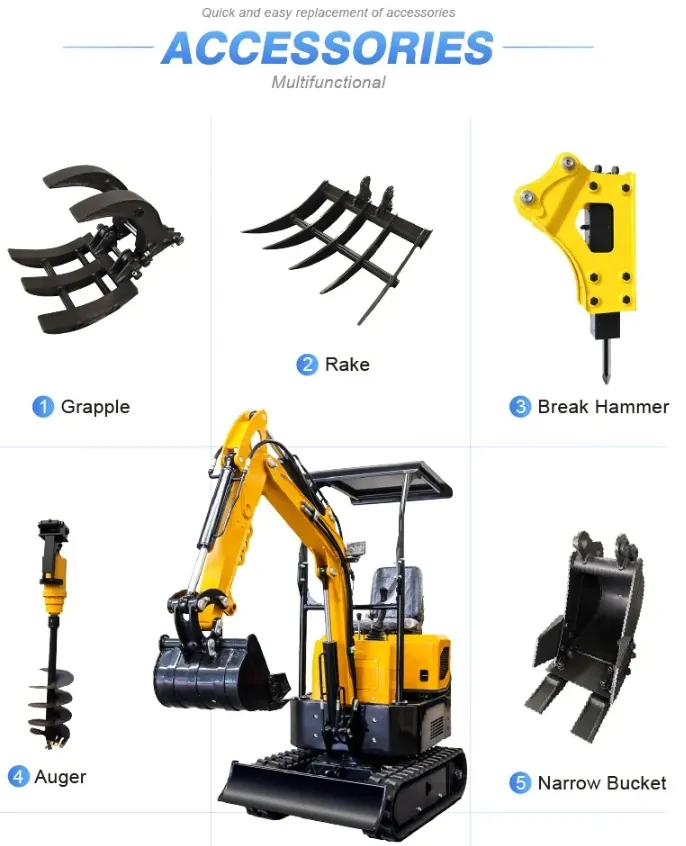

What attachments can be equipped with these mini diggers?
Almost all standard hydraulic tools can be used, including Augers, Breaking Hammers, Log Grapples, Rippers, Rakes, Thumbs, and various bucket types (Wide/Narrow).
