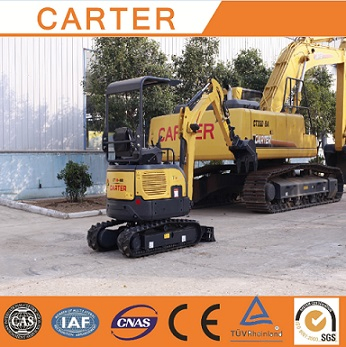

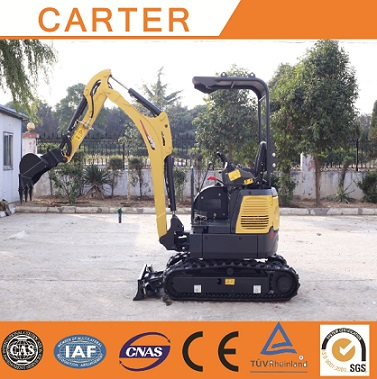

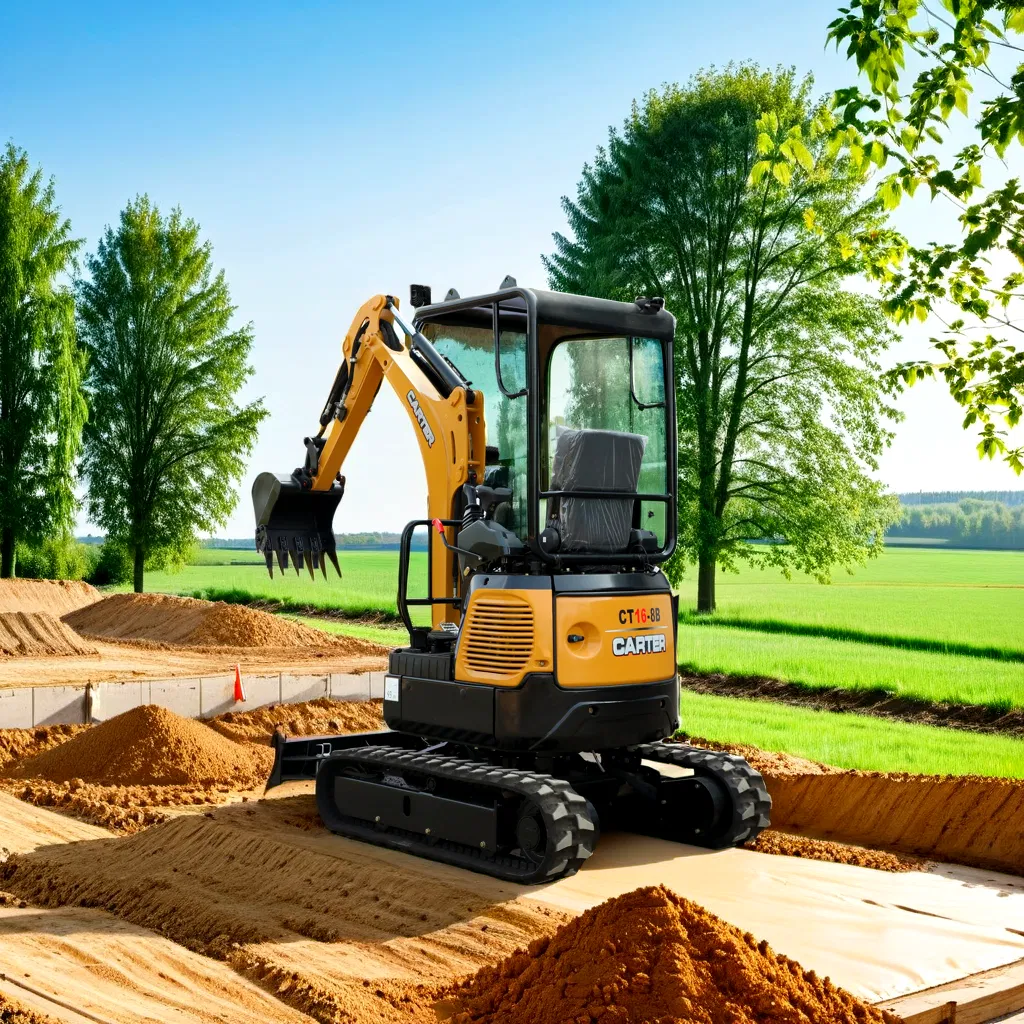

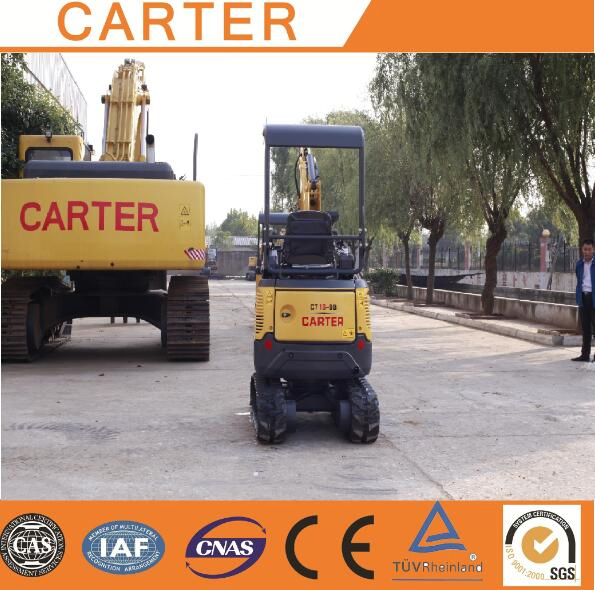

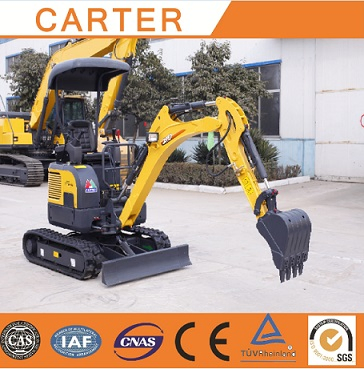

CT16-9b (Zero tail, retractable chassis) Mini Excavator with Rubber Tracks

1 / 5

CT16-9b (Zero tail, retractable chassis) Mini Excavator with Rubber Tracks

Customization:	Available
Type:	Crawler Excavator
Usage:	GM Excavator

Send Inquiry

Product Description

iBasic Information

Model NO.

CT16-9B(Zero tail, retractable chassis)

Bucket Type

Backhoe

Transmission

Hydraulic Transmission

Drive Type

Internal Combustion Drive

Bucket Capacity

0.02m3--0.1m3

Scale

Small-Scale

Certification

CE, ISO9001: 2000

Condition

New

Operating Weight

1700kg

Fuel Tank

28L

Bucket Digging Force

12.7kn

Swing Speed

8.8 R/Min

★Product Description & Features

Passed CE certificate for international safety standards.
Originally imported PERKINS engine, featuring low noise, low fuel consumption, and high torque.
Main pump, valve, swing motor, and travel motor are equipped with reliable USA Parker and Eaton components.
Optimized power and hydraulic system cooperation improves digging power by 10%.
Optional extension track available to significantly improve machine stability.
Boom deflexion capability to meet demanding narrow work conditions.
Versatile attachment options: hydraulic quick hitch, hammer, ripper, and drill.

⚙Technical Specifications

Engine & Performance		Travel System
Model	Yanmar 3TNV70	Travel motors	Eaton, USA
Type	Direct injection, water cooled	Travel speed	2.7/5.0(km/h)
Power output	10kw/2200rpm	Gradeability	58% (30°)
Max. torque	50N.m/2000rpm	Ground clearance	160mm
Hydraulic System		Working Ranges

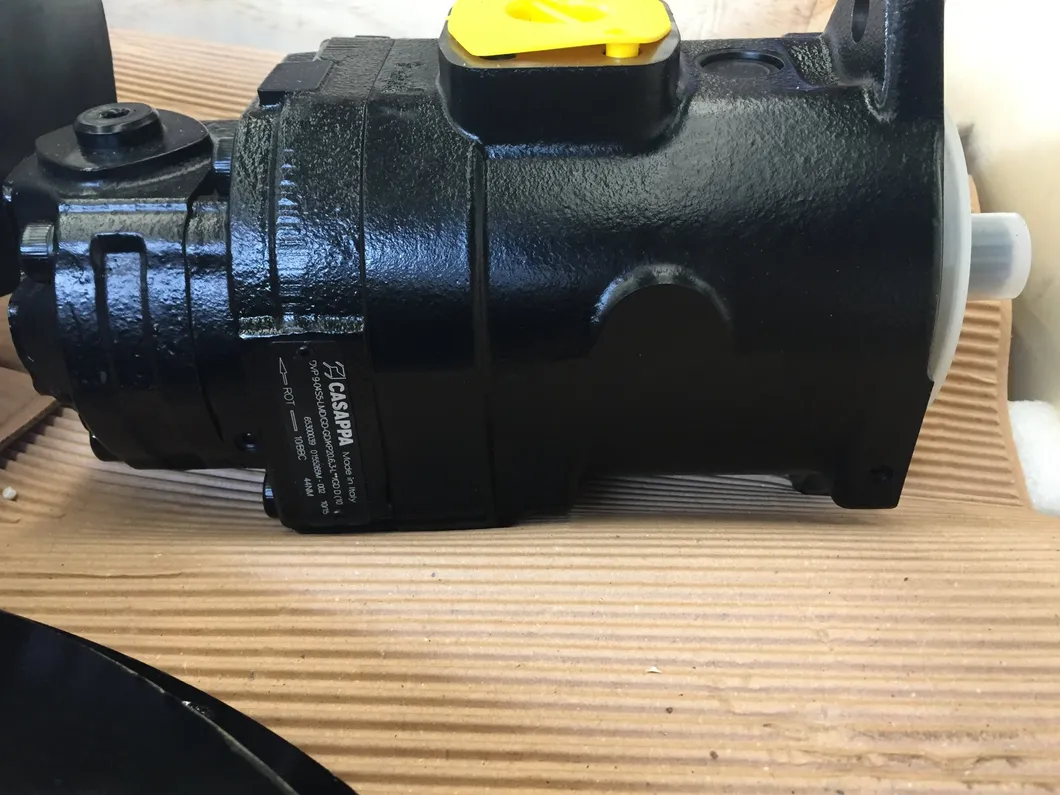

Pump	CASAPPA, Italy	Max. digging height	3281mm
Main control valves	Hydro Control, Italy	Max. digging depth	2033mm

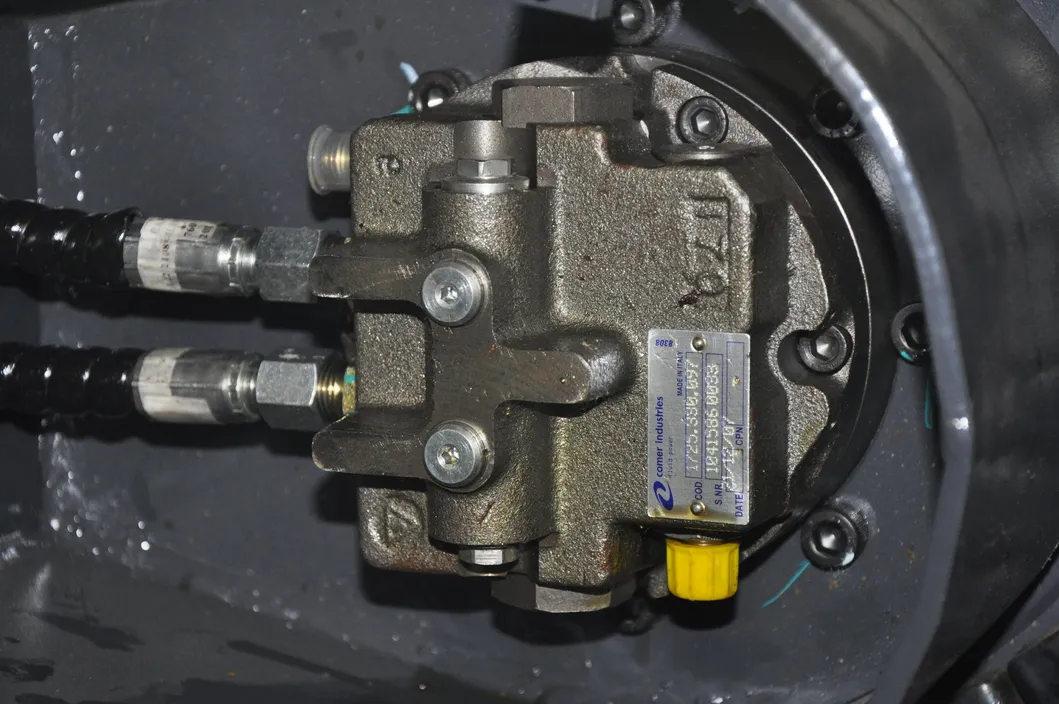

Swing motor	Eaton, USA	Max. digging distance	3941mm
Operating Weight	1700kg (with canopy)	Bucket digging force	11.2 KN

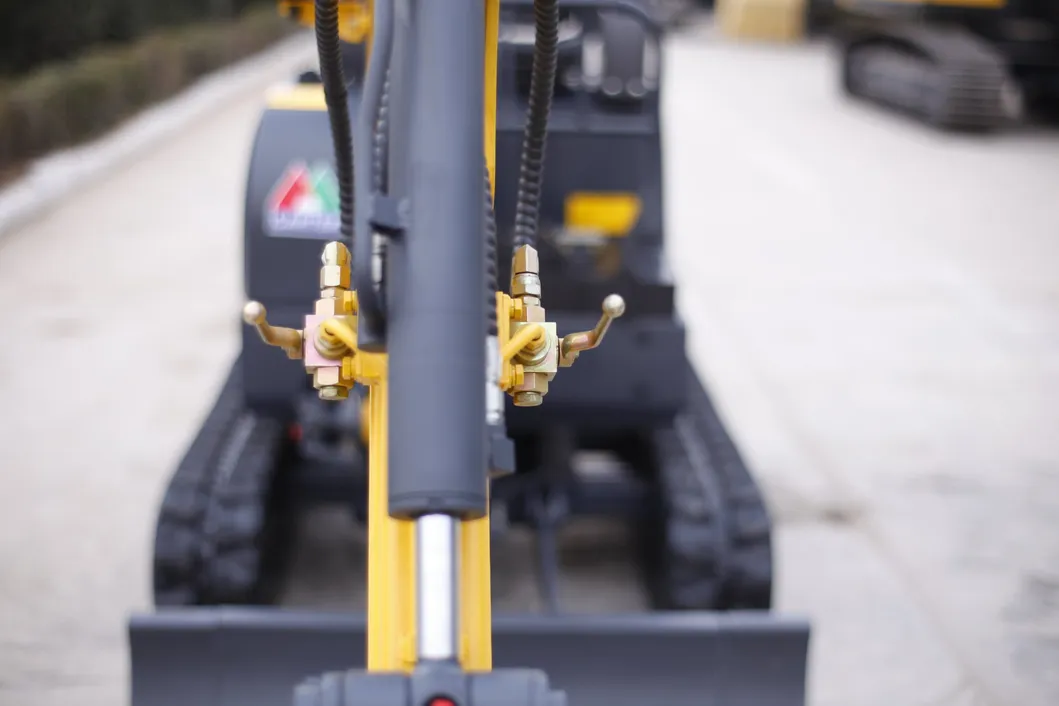

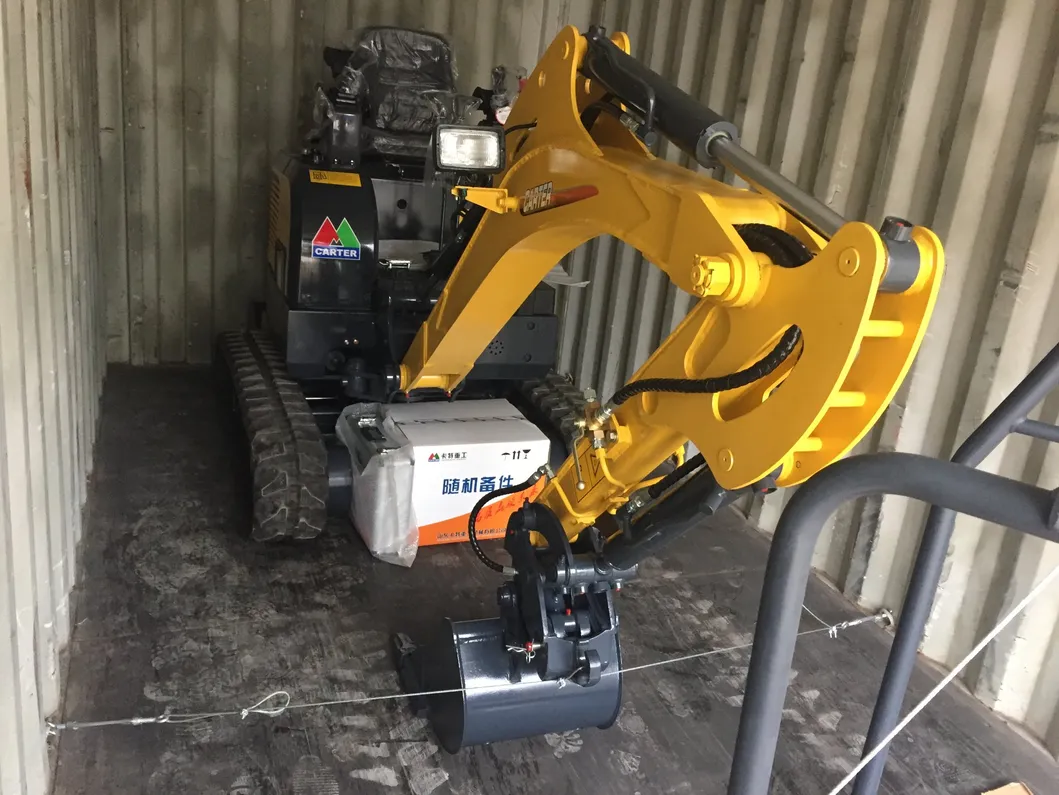

📷Product Gallery

?Frequently Asked Questions

1. What are the core advantages of the CT16-9B excavator? The CT16-9B features a zero-tail design and a retractable chassis, making it ideal for extremely narrow spaces. It is powered by a high-torque engine and features premium hydraulic components from Italy and the USA.

2. Which engine is used in this model? This model utilizes high-performance engines such as the Yanmar 3TNV70 or PERKINS options, known for their fuel efficiency, low noise, and reliability in tough working conditions.

3. Can the chassis width be adjusted? Yes, it features a retractable chassis. The track gauge can extend from 760mm to 1090mm, providing both narrow access capability and enhanced stability when working.

4. What kind of attachments can be used with the CT16-9B? The machine supports a wide range of optional attachments including hydraulic quick hitches, hammers, rippers, and drills to handle various construction and landscaping tasks.

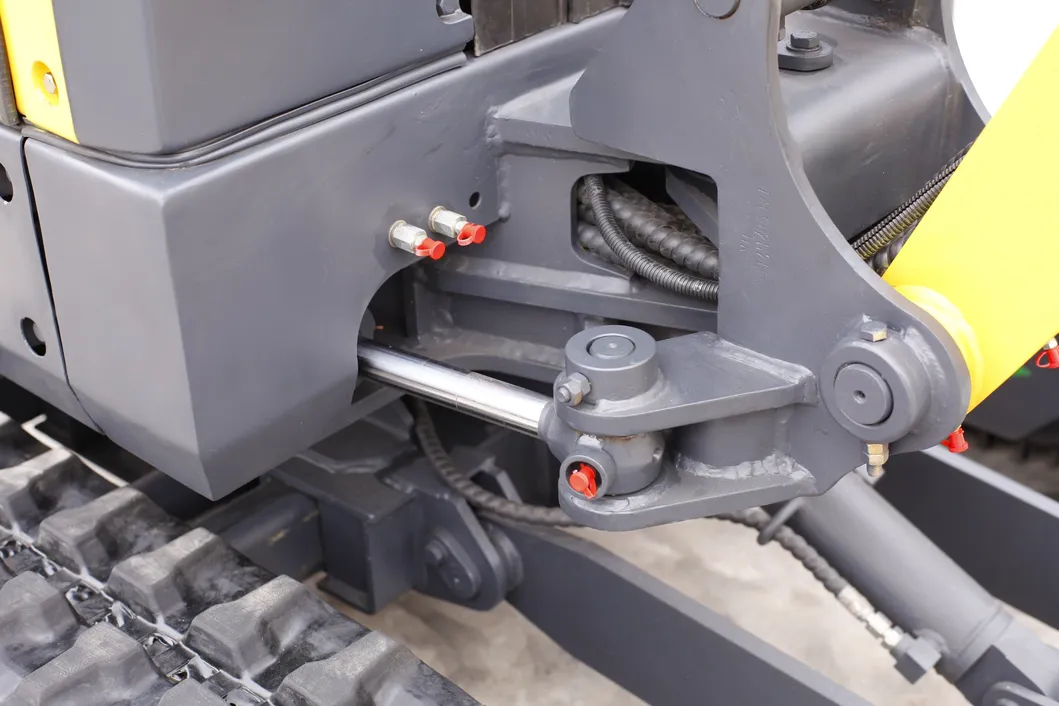

5. Does the machine have boom deflection? Yes, the boom deflexion feature allows the excavator to work effectively alongside walls or in confined areas where standard rotation is restricted.

6. Is the machine certified for international markets? Absolutely. The excavator has passed CE certification and follows ISO9001:2000 quality management standards, ensuring it meets international safety and quality requirements.
