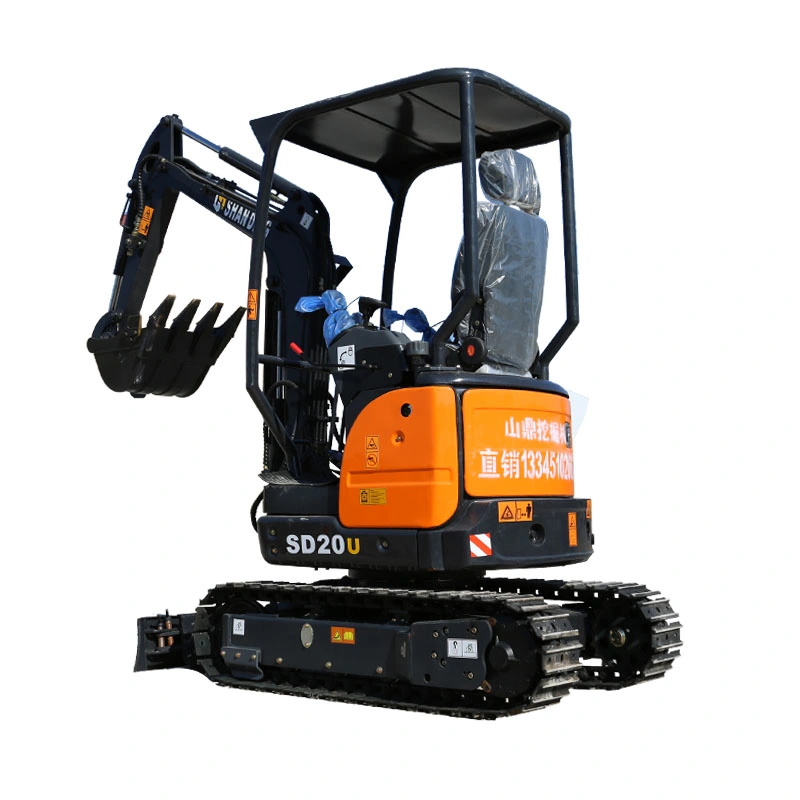

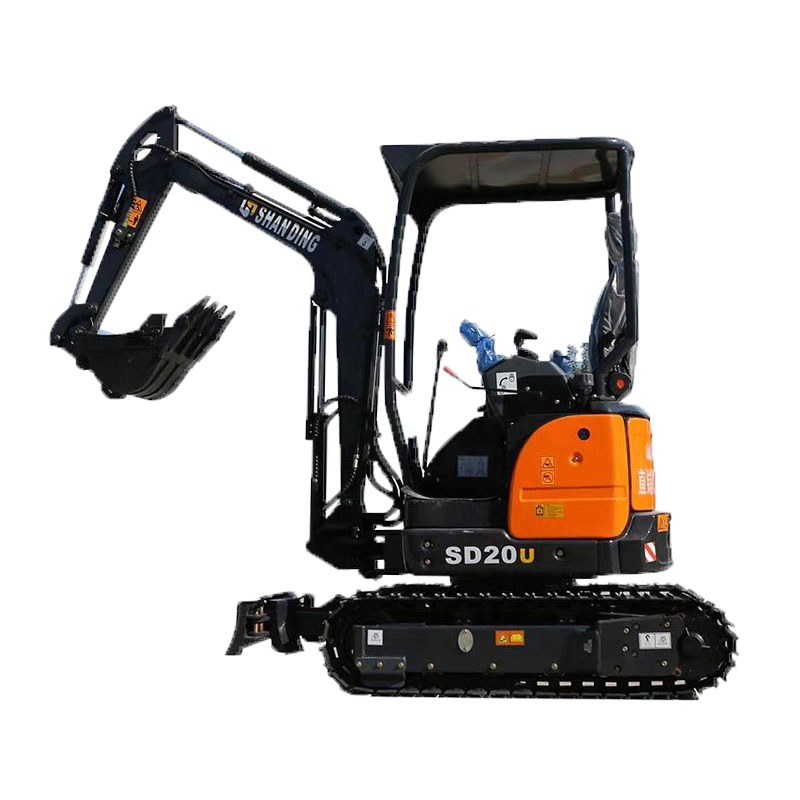

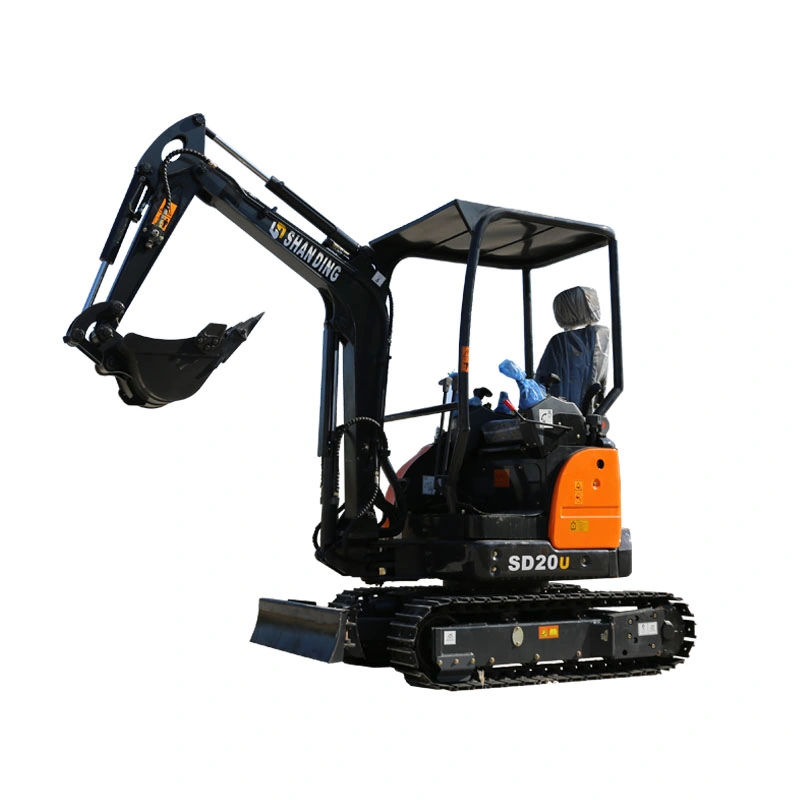

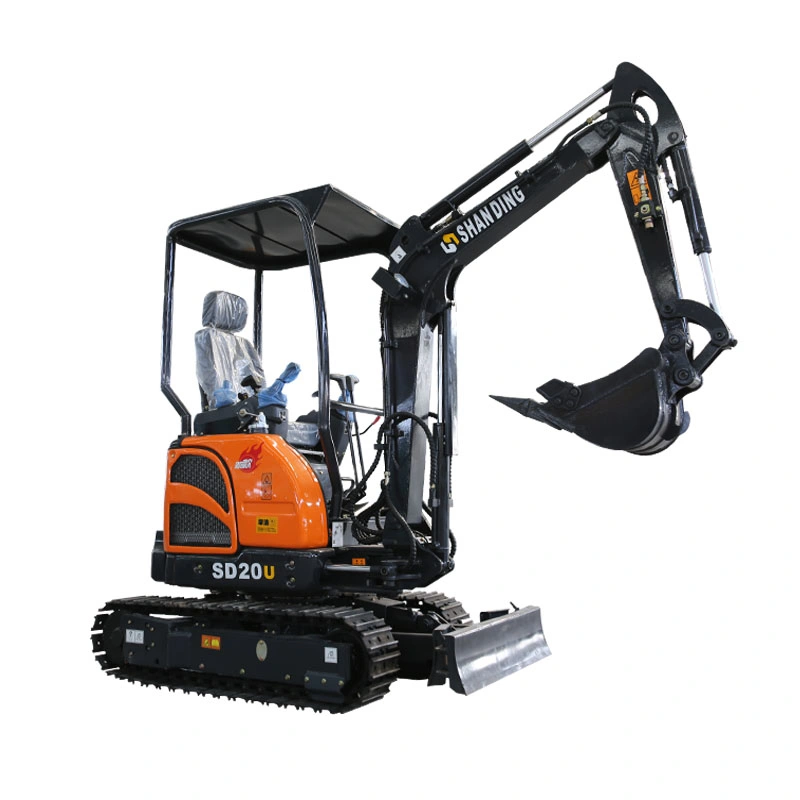

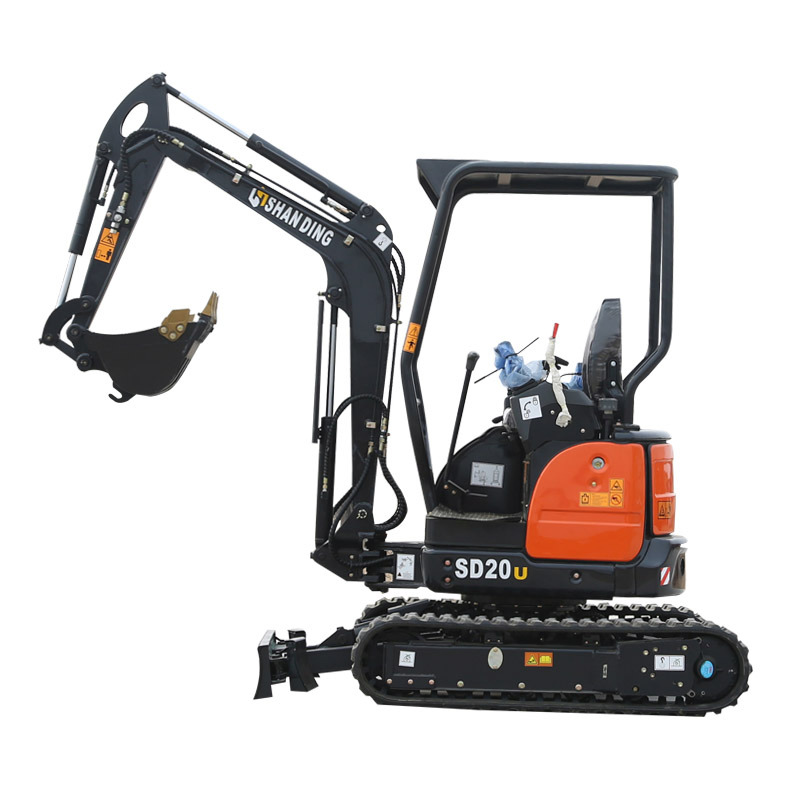

Shanding Factory 2 Ton with Retractable Undercarriage Crawler Track and Zero Tail Mini Small Excavator Digger Model SD20u
Shanding Factory 2 Ton with Retractable Undercarriage Crawler Track and Zero Tail Mini Small Excavator Digger Model SD20u
Shanding Factory 2 Ton with Retractable Undercarriage Crawler Track and Zero Tail Mini Small Excavator Digger Model SD20u
Shanding Factory 2 Ton with Retractable Undercarriage Crawler Track and Zero Tail Mini Small Excavator Digger Model SD20u
Shanding Factory 2 Ton with Retractable Undercarriage Crawler Track and Zero Tail Mini Small Excavator Digger Model SD20u
1 / 5
Shanding Factory 2 Ton with Retractable Undercarriage Crawler Track and Zero Tail Mini Small Excavator Digger Model SD20u
Shanding Factory 2 Ton with Retractable Undercarriage Crawler Track and Zero Tail Mini Small Excavator Digger Model SD20u
Shanding Factory 2 Ton with Retractable Undercarriage Crawler Track and Zero Tail Mini Small Excavator Digger Model SD20u
Shanding Factory 2 Ton with Retractable Undercarriage Crawler Track and Zero Tail Mini Small Excavator Digger Model SD20u
Shanding Factory 2 Ton with Retractable Undercarriage Crawler Track and Zero Tail Mini Small Excavator Digger Model SD20u

Shanding Factory 2 Ton with Retractable Undercarriage Crawler Track and Zero Tail Mini Small Excavator Digger Model SD20u

Customization: Available
Type: Crawler Excavator
Usage: Mining Excavator
Send Inquiry

Product Description

Basic Information

Model NO.
SD20U
Bucket
Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Trademark
shanding
Origin
China
HS Code
8429521200
Capacity
10000 units

Product Features

⚙️
Buy a 2 ton excavator with a true zero tail function and choose SD20U. It can be equipped with PERKINS, YANMAR engine, EURO 5 & EPA engine, optional boom swing, optional chassis extension, optional dual-speed travel. Customers can customize different configuration combinations according to budget.
SD20U zero tail excavator

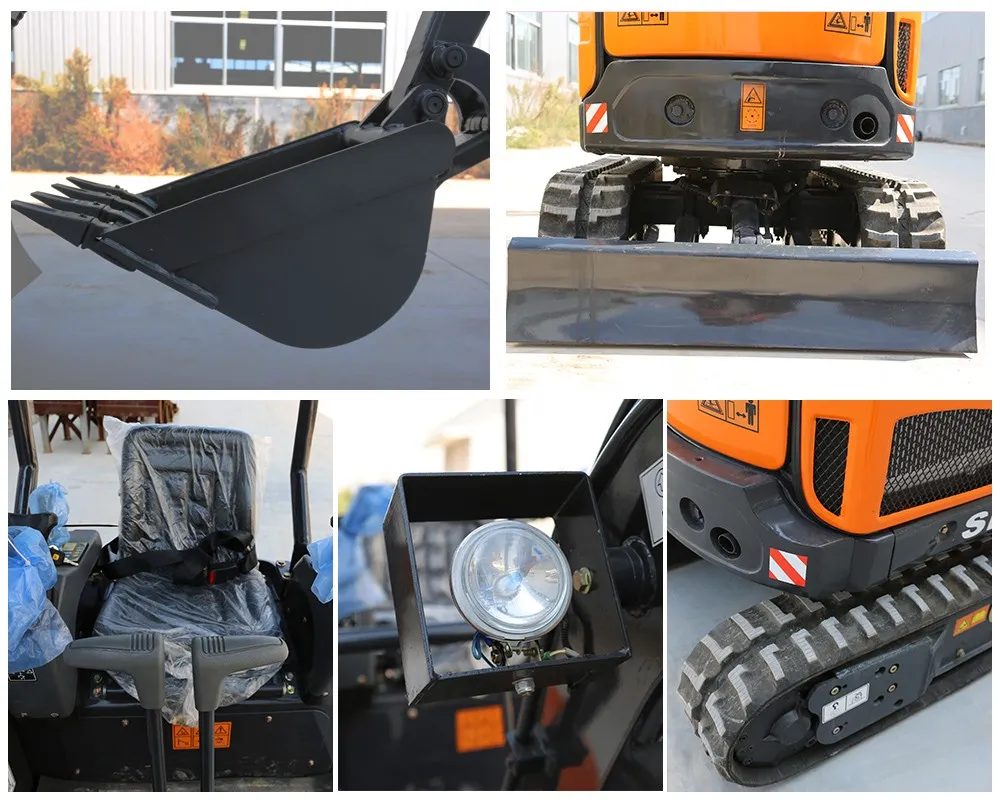

SD20U retractable undercarriage
SD20U mini small excavator

Technical Specifications

Machine Performance
BrandSHANDING
ModelSD20U
Operating modeHydraulic lever
Operating weight1970kg
Bucket capacity0.07cbm
Bucket width430mm (Customizable)
EnginePerkins(UK) 403D-11, 14.7kw/2200r/min
Pump / ValveFUTAI 309 / HUSCO (USA)
MotorEATON (USA) Walking & Rotary
Chassis ScalableYes
Walking speed3.9km/h
Physical Size
Total Size (L*W*H)4090x1200x2310 mm
Track Size1570mm * 230mm
Chassis width1160 mm
Working Range
Max. digging depth2405 mm
Max. digging height3330 mm
Max. digging radius3975 mm

Product Gallery

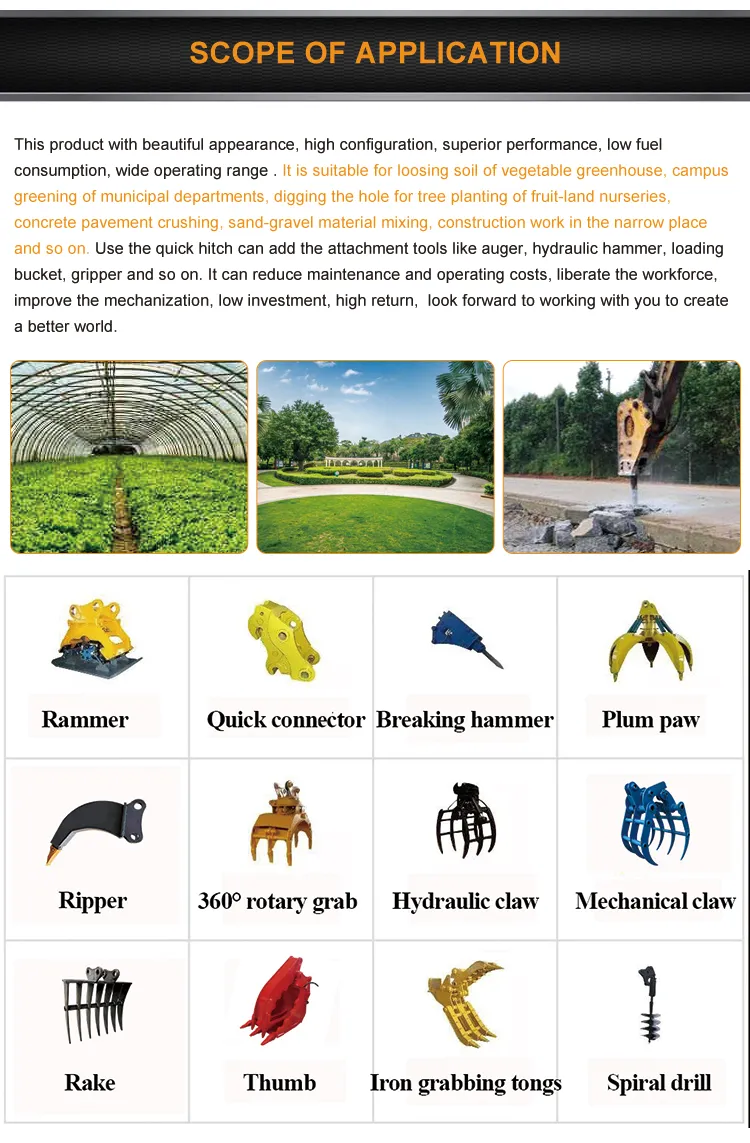

SD20U detail 1
SD20U detail 2

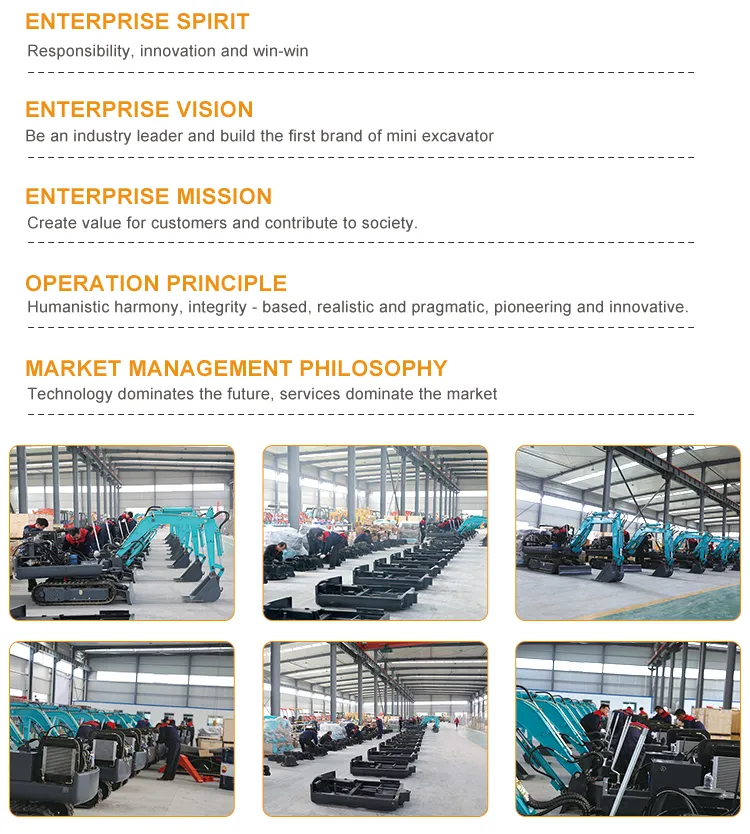

SD20U detail 3

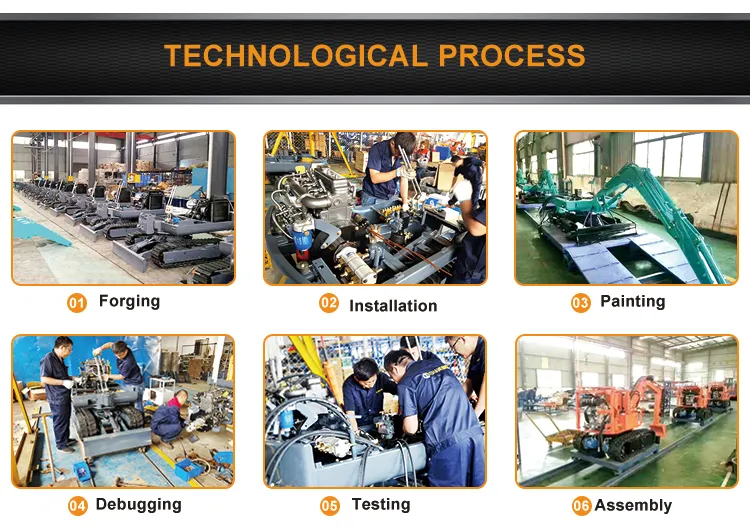

SD20U detail 4
SD20U detail 5
SD20U detail 6
SD20U detail 7
SD20U detail 8

Frequently Asked Questions

1. What are the engine options for the SD20U excavator?
The SD20U can be equipped with PERKINS or YANMAR engines, including models that meet EURO 5 and EPA emission standards.
2. Does this model support zero tail swing?
Yes, the SD20U features a true zero tail function, making it ideal for working in confined spaces.
3. Is the chassis width adjustable?
Yes, the SD20U comes with an optional retractable undercarriage/scalable chassis to improve accessibility and stability.
4. What is the maximum digging depth of the SD20U?
The maximum digging depth for this model is 2405 mm, with a maximum digging radius of 3975 mm.
5. What is the operating weight and bucket capacity?
The operating weight is 1970kg, and the standard bucket capacity ranges from 0.1 to 0.5m³ depending on the configuration.
6. Which hydraulic components are used in the SD20U?
It utilizes high-quality components including a FUTAI 309 pump, HUSCO valves from the USA, and EATON walking and rotary motors.
