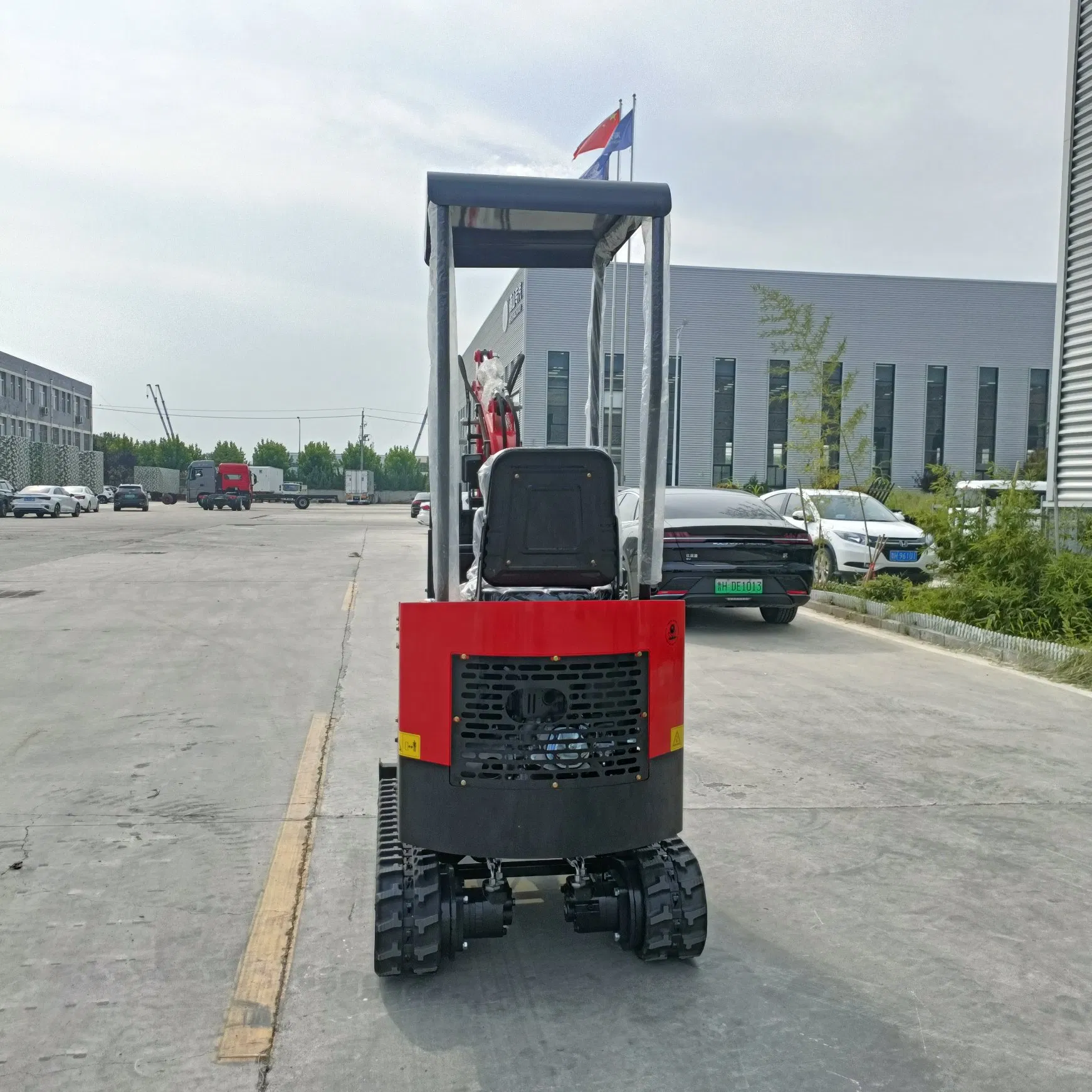

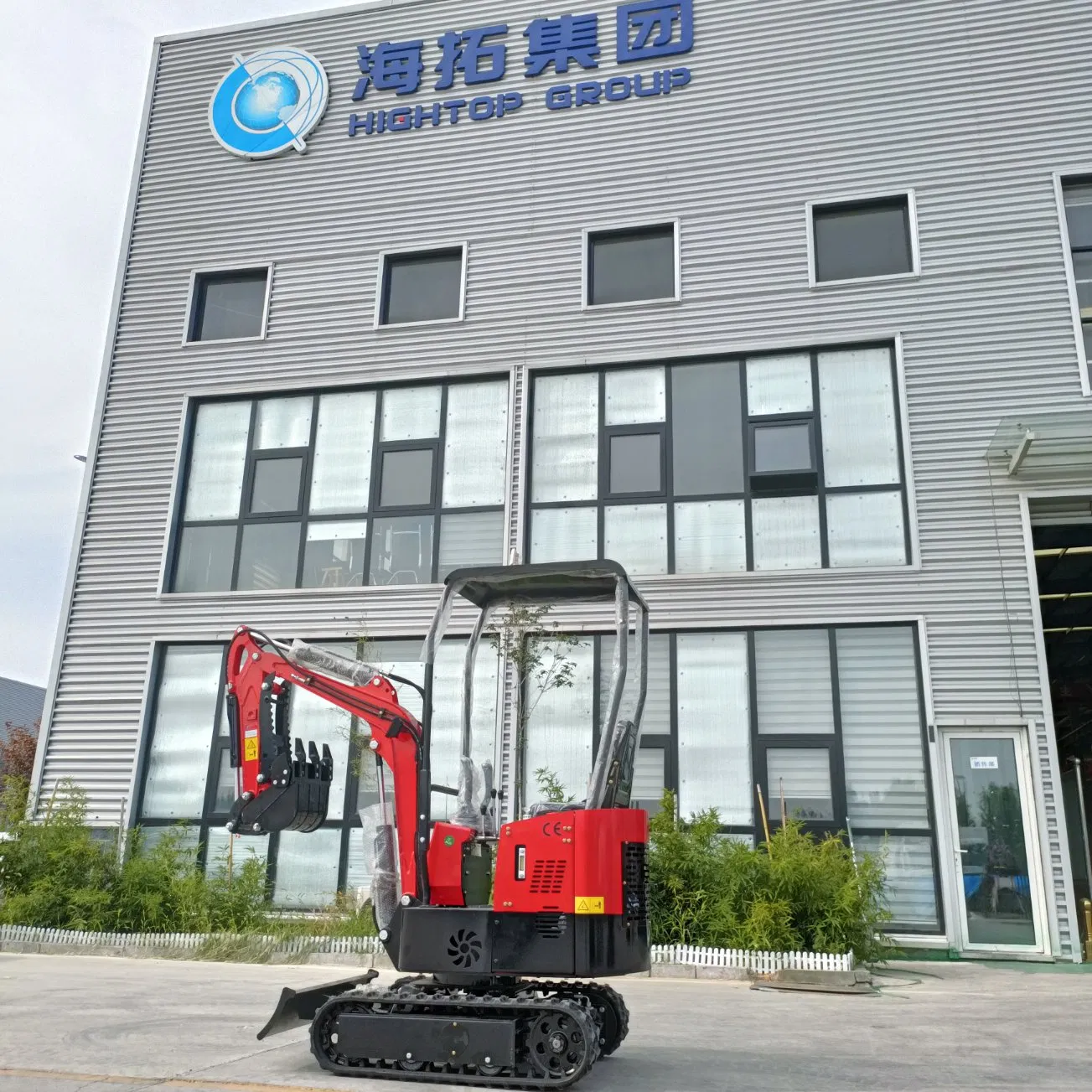

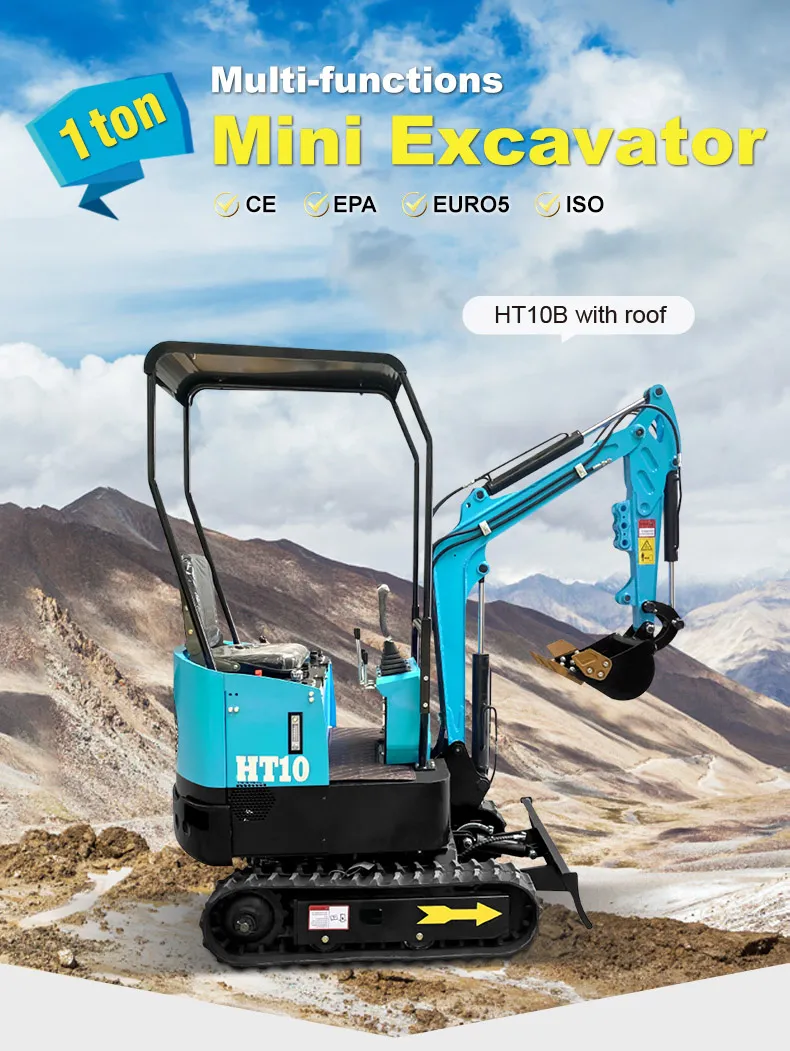

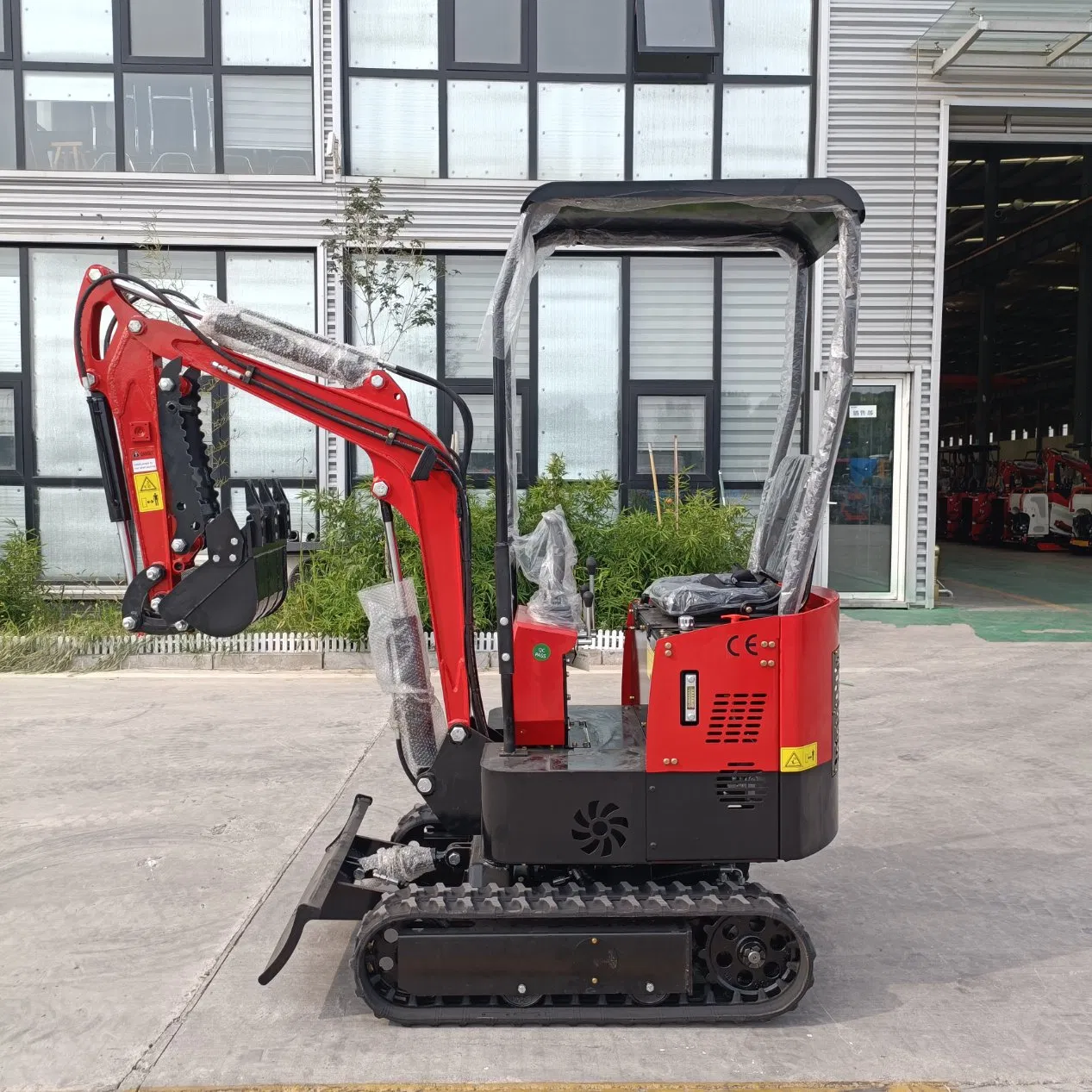

BTEra Excavator
1 / 5

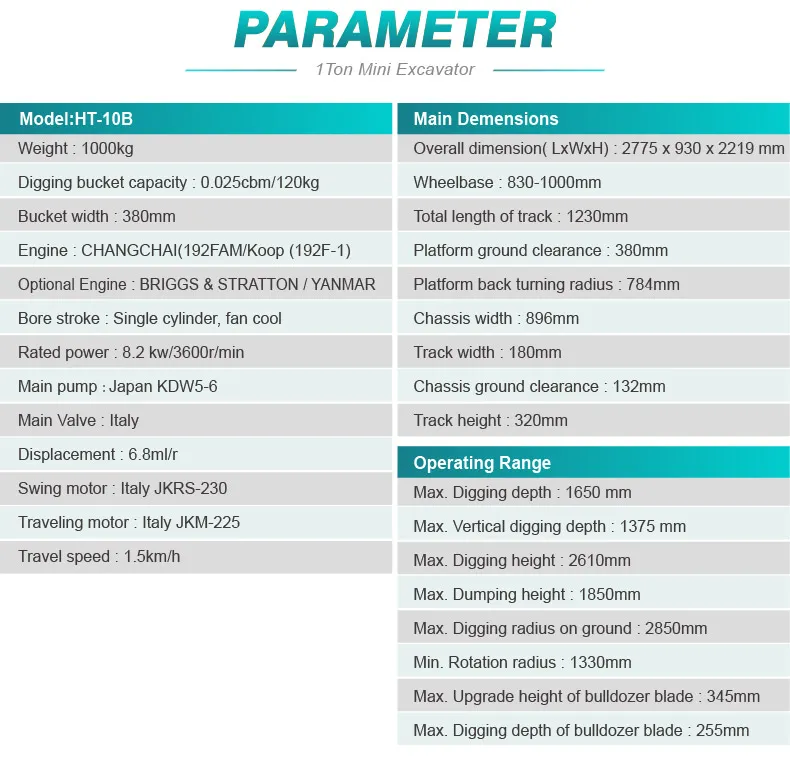

| Parameter | Value |
|---|---|
| Model | HT-10B |
| Weight | 1000kg |
| Digging bucket capacity | 0.025cbm/120kg |
| Bucket width | 380mm |

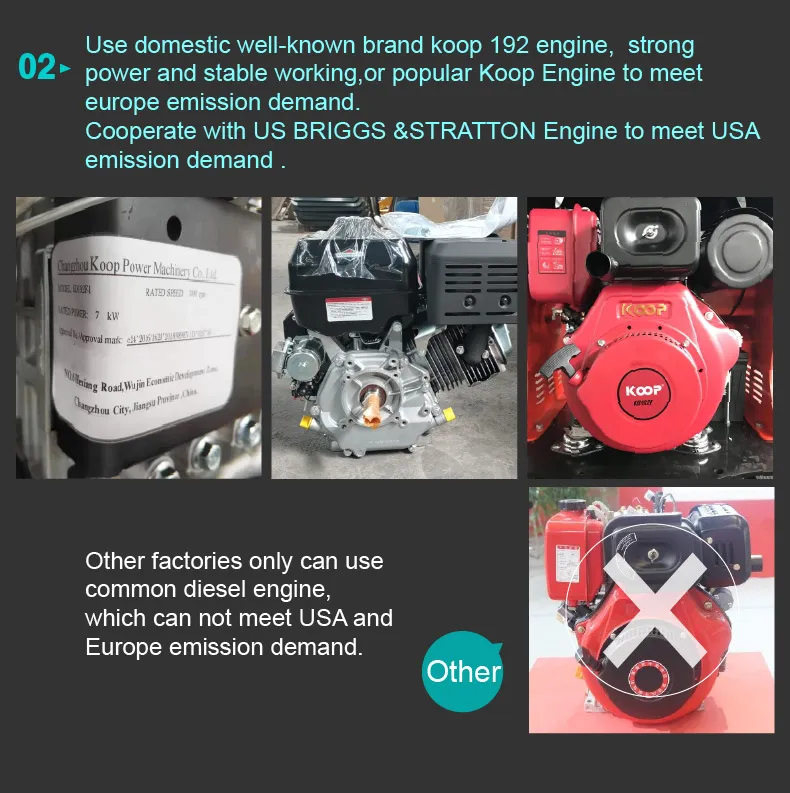

| Engine | KOOP 192fa(7.6 kw,single cylinder) |

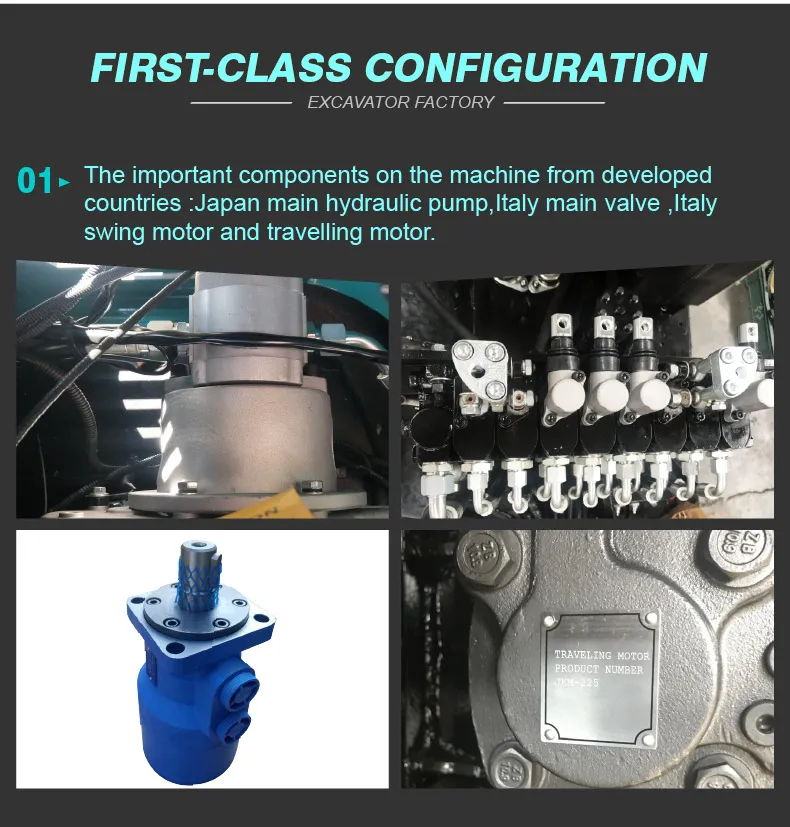

| Main pump | G5-6 |
| Displacement | 6.8ml/r |
| Swing motor | SANYANG (BMRS-250) |
| Traveling motor | SANYANG (BMT-245) |
| Travel speed | 1.5km/h |
| Main Dimensions | |
| Overall dimension( LxWxH) | 2775 x 930 x 2219 mm |

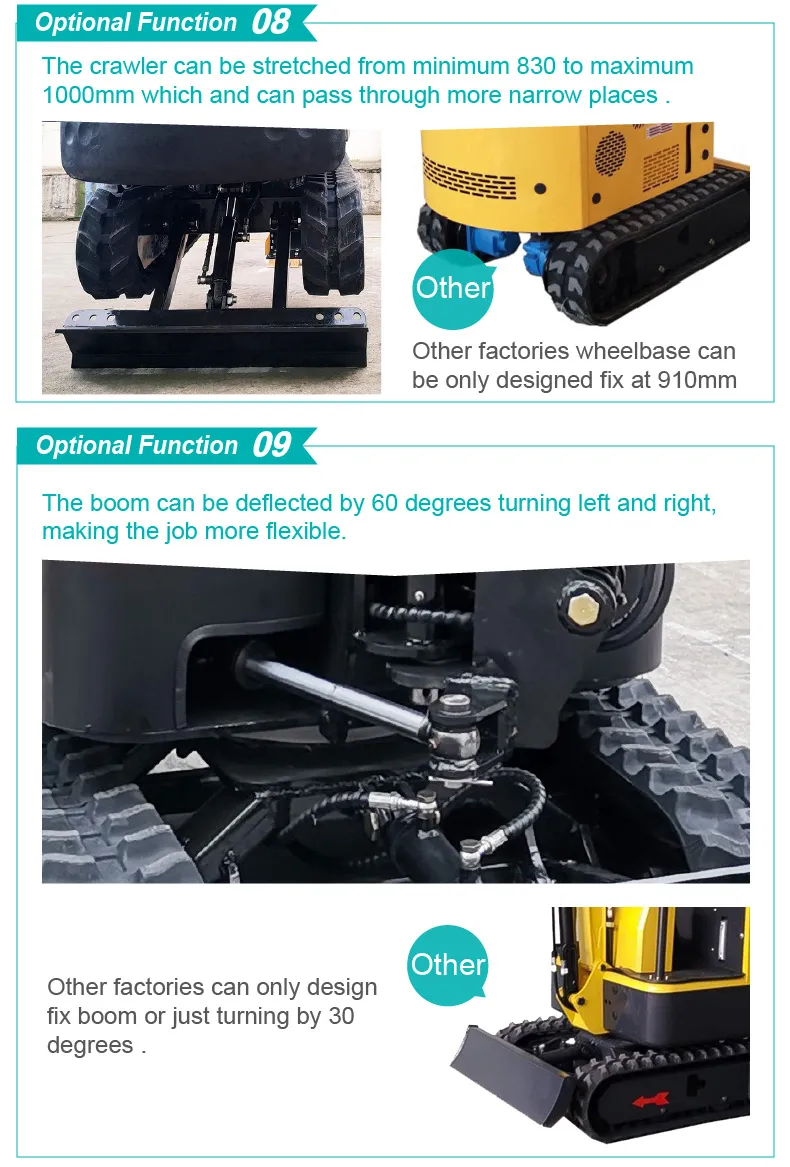

| Wheelbase | 910 mm |
| Total length of track | 1230mm |
| Platform ground clearance | 380 mm |
| Platform back turning radius | 784 mm |
| Chassis width | 896 mm |
| Track width | 180 mm |
| Operating Range | |
| Max. Digging depth | 1750 mm |
| Max. Vertical digging depth | 1375 mm |
| Max. Digging height | 2610 mm |
| Max. Dumping height | 1850 mm |
| Max. Digging radius on ground | 2850 mm |
| Min. Rotation radius | 1330 mm |

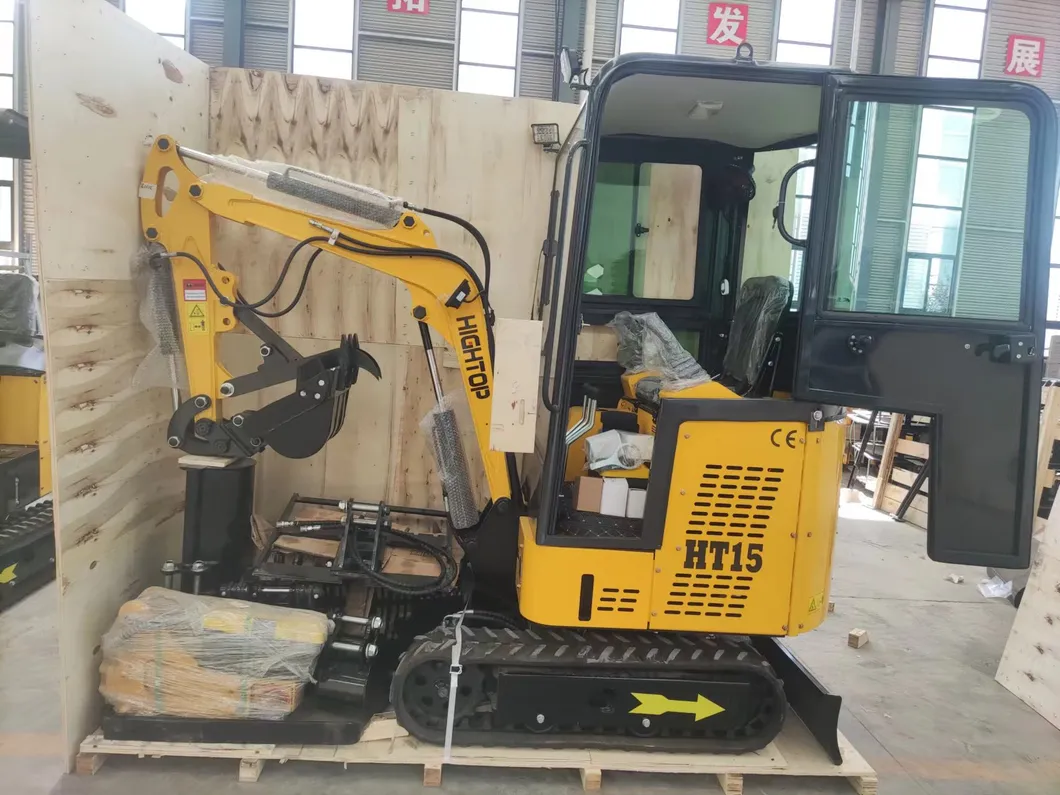

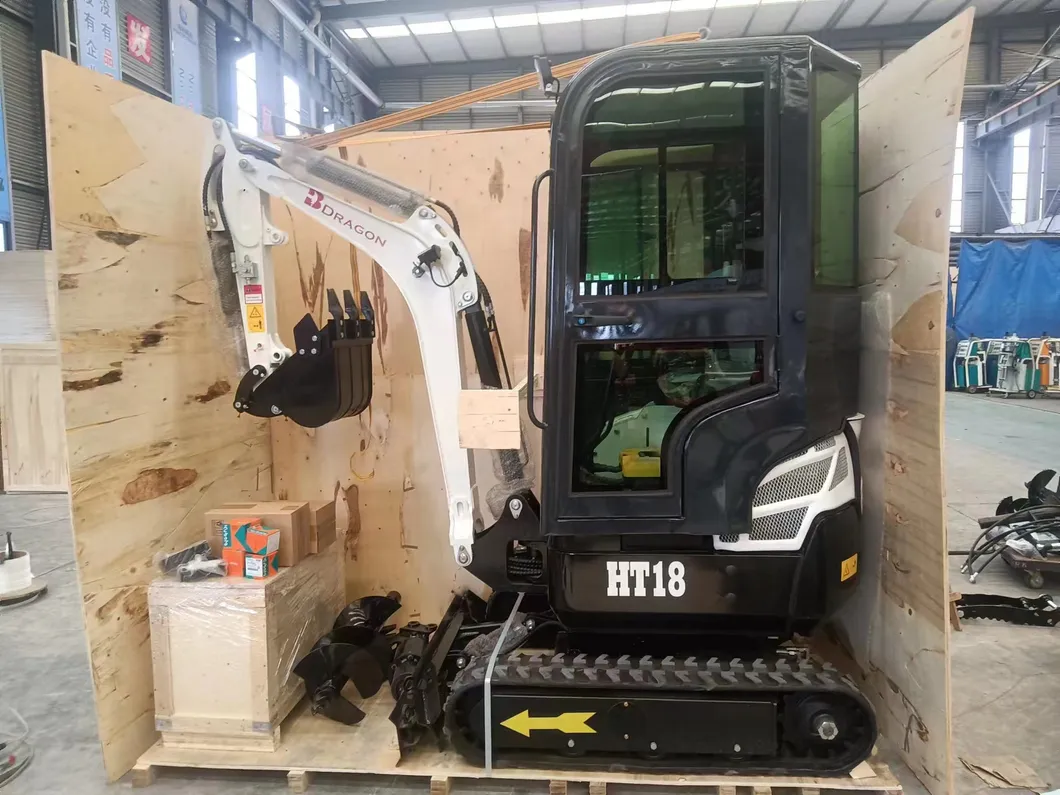

Packed in secure wooden case for international shipping.

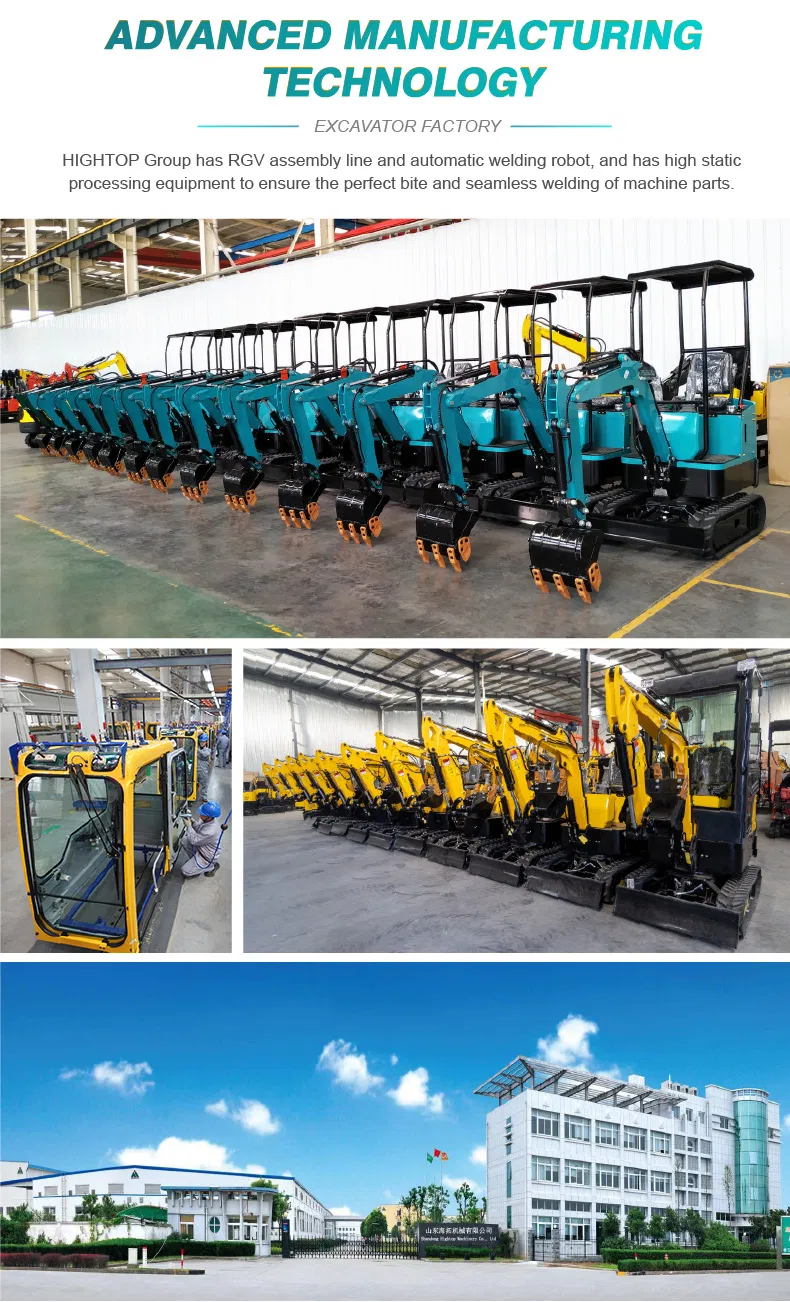

The main products include mini excavators, road rollers, loaders, lawn mowers, and sprayers. We hold multiple design patents and software copyrights. Our production systems are certified under ISO 9001 international quality standards, European Union CE certification, SGS certification, Germany TUV, and French BV certification. Scientific innovation is our primary motive power. Over the years, thousands of tensile tests on steel products have been conducted to improve impact resistance and ensure customer satisfaction. Products have been exported to more than 177 countries, winning a strong reputation for professional service and high-quality standards.
