Customization: Available
Type: Crawler Excavator
Usage: GM Excavator
Send Inquiry

Product Description

Technical Specifications

Model
CT16-9B
Bucket Type
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion
Bucket Capacity
0.028-0.095m³
Certification
CE, ISO9001: 2000
Operating Weight
1700kg
Dimensions (L*W*H)
3694*1000*2411mm
Max. Digging Depth
2033mm
Max. Digging Height
3281mm
Max. Digging Distance
3941mm
Arm Length
950mm

Key Features

⚙️
High Performance
Equipped with imported engine, providing low noise, low fuel consumption, and high torque.
💧
Hydraulic Efficiency
Main pump, valve, and motors utilize premium USA brands for reliable performance.
🏗️
Enhanced Stability
Optional extension track and boom deflection to meet narrow work conditions.
🛠️
Versatility
Compatible with hydraulic quick hitch, hammer, ripper, and drill attachments.

Detailed Parameters

Engine SystemTravel System
ModelYanmar 3TNV70Travel MotorsEaton, USA
TypeDirect injection, water cooledTravel Speed2.7/5.0 km/h
Power Output10kw/2200rpmGradeability58% (30°)
Max. Torque50N.m/2000rpmGround Clearance160mm
Hydraulic SystemElectrical System
PumpCASAPPA, ItalyVoltage12V
TypeAxial-piston pump + Gear pumpBattery Capacity60Ah
Max. Pressure17 MPaMain Control ValveHydro Control, Italy
Swing SystemCapacity & Lubrication
Swing MotorEaton, USAFuel Tank28L
Swing Speed8.8 r/minHydraulic Oil Tank17.5L / 24L System

Product Gallery

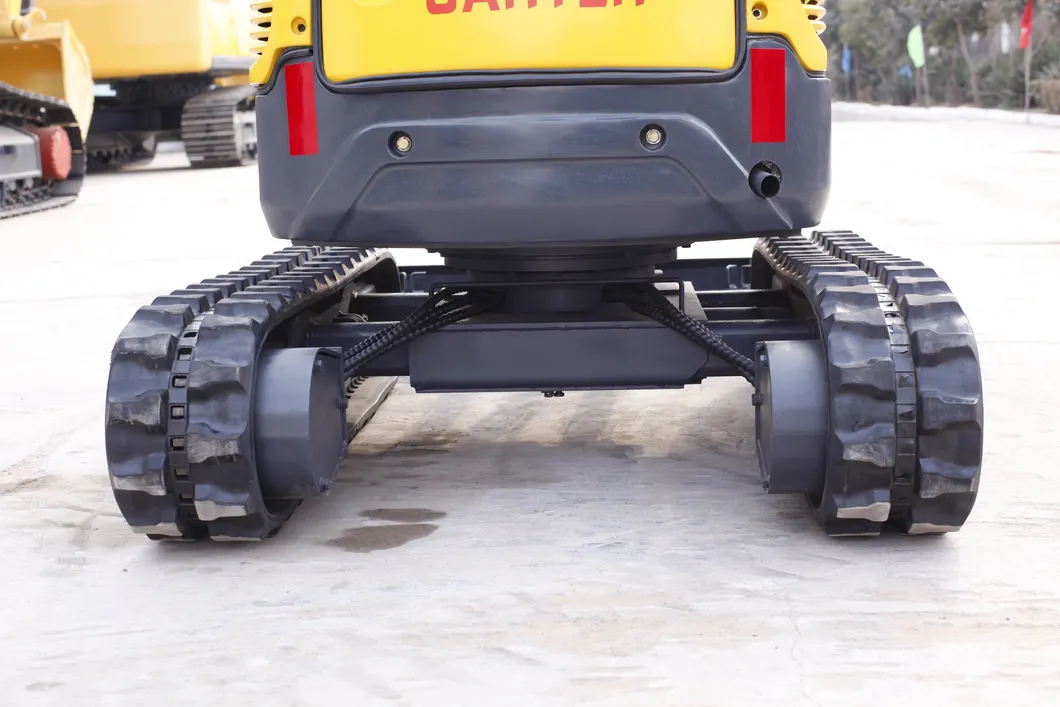

Mini Excavator View 1

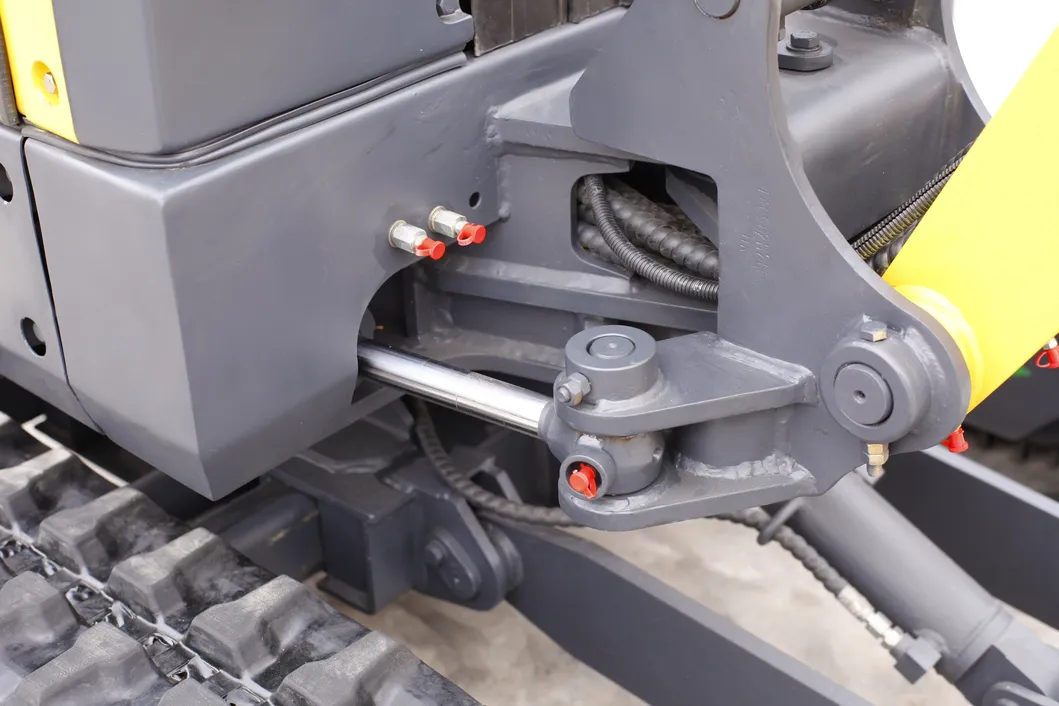

Mini Excavator View 2

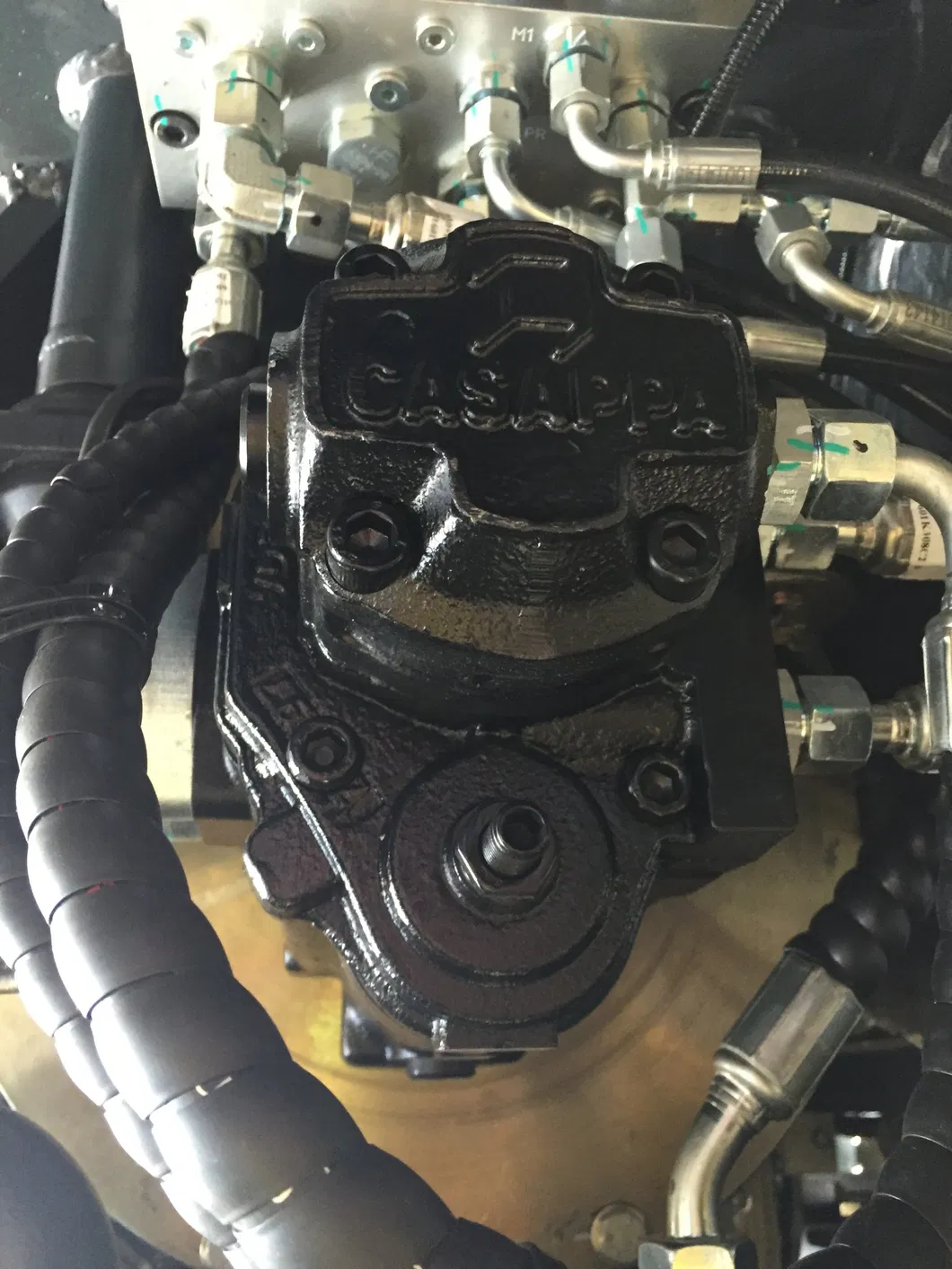

Mini Excavator View 3

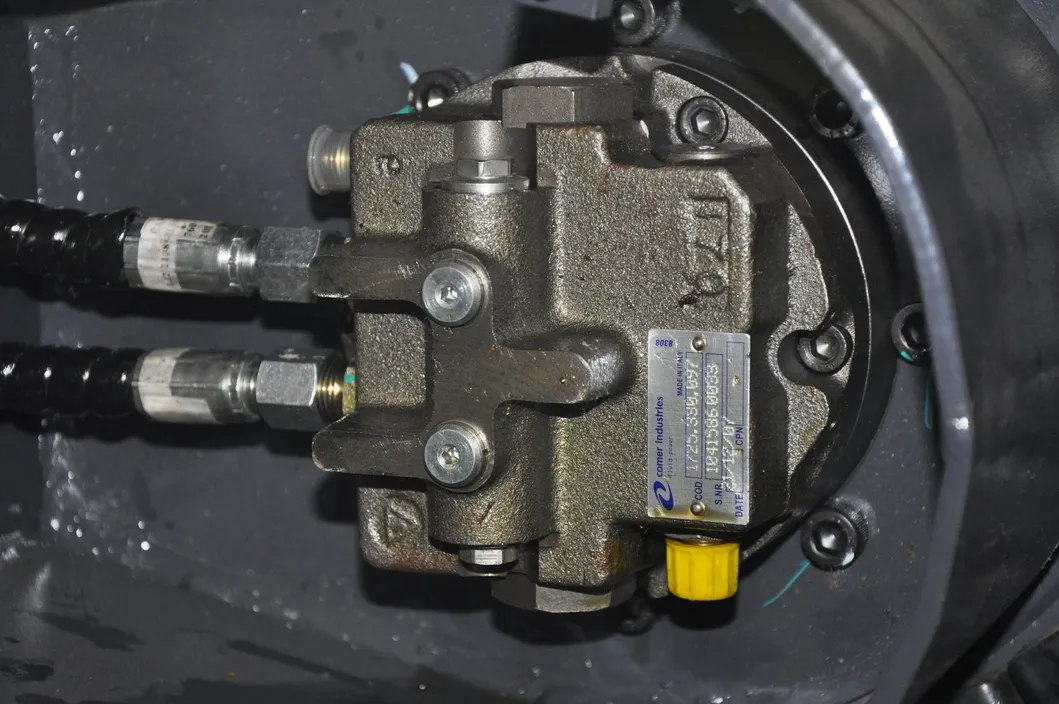

Mini Excavator View 4

Frequently Asked Questions

Q1: What is the operating weight of the CT16-9B?
The operating weight of this mini excavator is 1700kg when equipped with the canopy.
Q2: What are the main engine and hydraulic components?
It features a Yanmar 3TNV70 engine, CASAPPA (Italy) pumps, and Eaton (USA) travel and swing motors for maximum reliability.
Q3: How deep can this model dig?
The CT16-9B has a maximum digging depth of 2033mm and a maximum vertical digging depth of 1605mm.
Q4: Is it suitable for narrow working environments?
Yes, with a minimum swing radius of 1625mm and optional boom deflection features, it is designed for efficiency in confined spaces.
Q5: What is the bucket capacity of this mini excavator?
The standard bucket capacity is 0.04m³ (SAE), with an available scope ranging from 0.028 to 0.095m³.
Q6: What certifications does this equipment hold?
The machine has passed both CE certification and ISO9001:2000 quality management standards.
