Retractable Track Ep a/Euro 5 Certified2.5ton Customized Engine Tailless Mini Excavator

1 / 5

Retractable Track Ep a/Euro 5 Certified2.5ton Customized Engine Tailless Mini Excavator

Warranty:	1year
Usage:	Mining Excavator
Bucket:	Shovel

Send Inquiry

Product Description

Basic Specifications

Model NO.

XT-25

Transmission

Hydraulic Transmission

Drive Type

Electric Drive

Bucket Capacity

0.1~0.5m³

Size

Small-Scale

Certification

Condition

New

Product Type

Mini Excavator

Special Features

Retractable Track Shoes

Overall Dimension

3865mm 1050mm 2270mm

Operating Weight

2500kg

Origin

China

Product Description

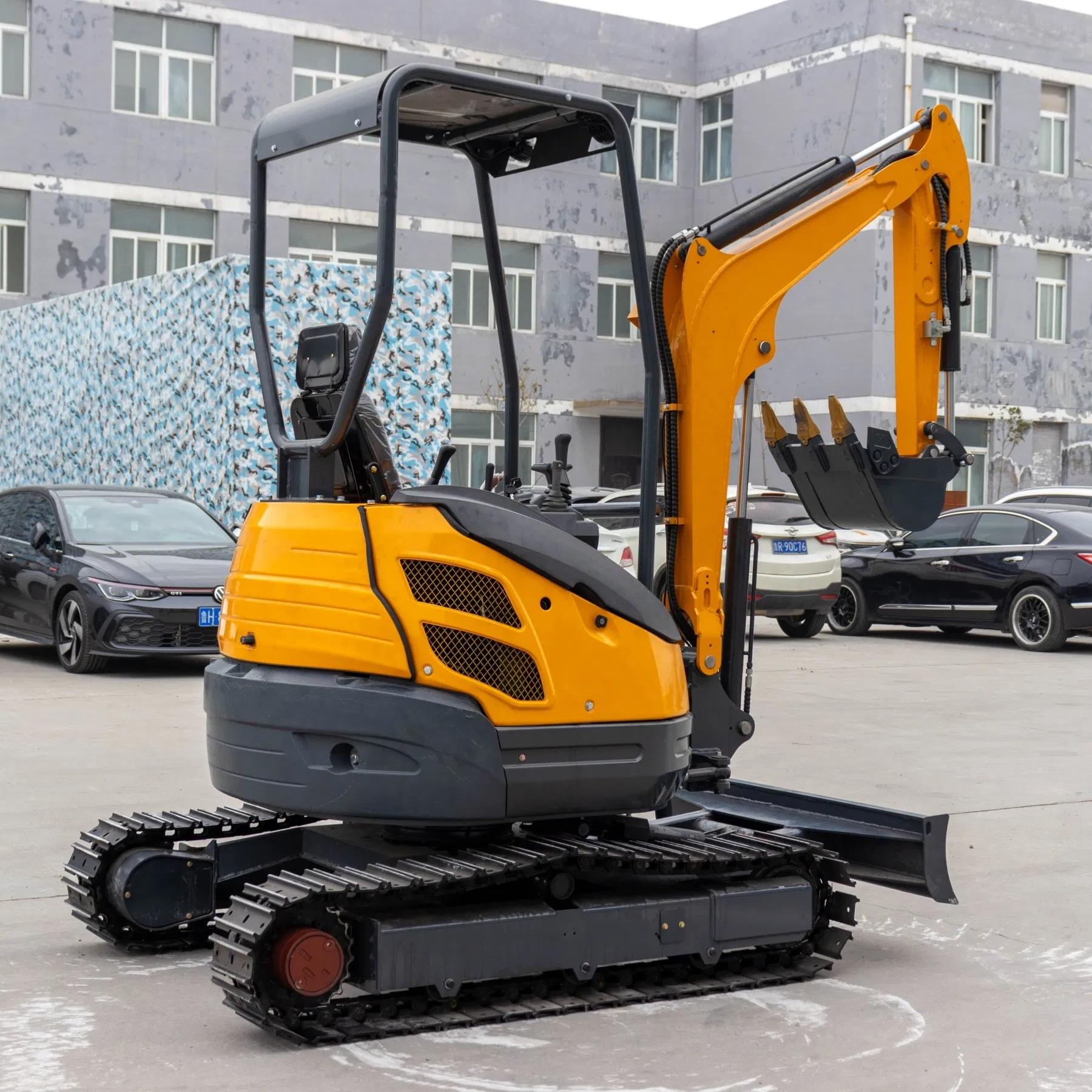

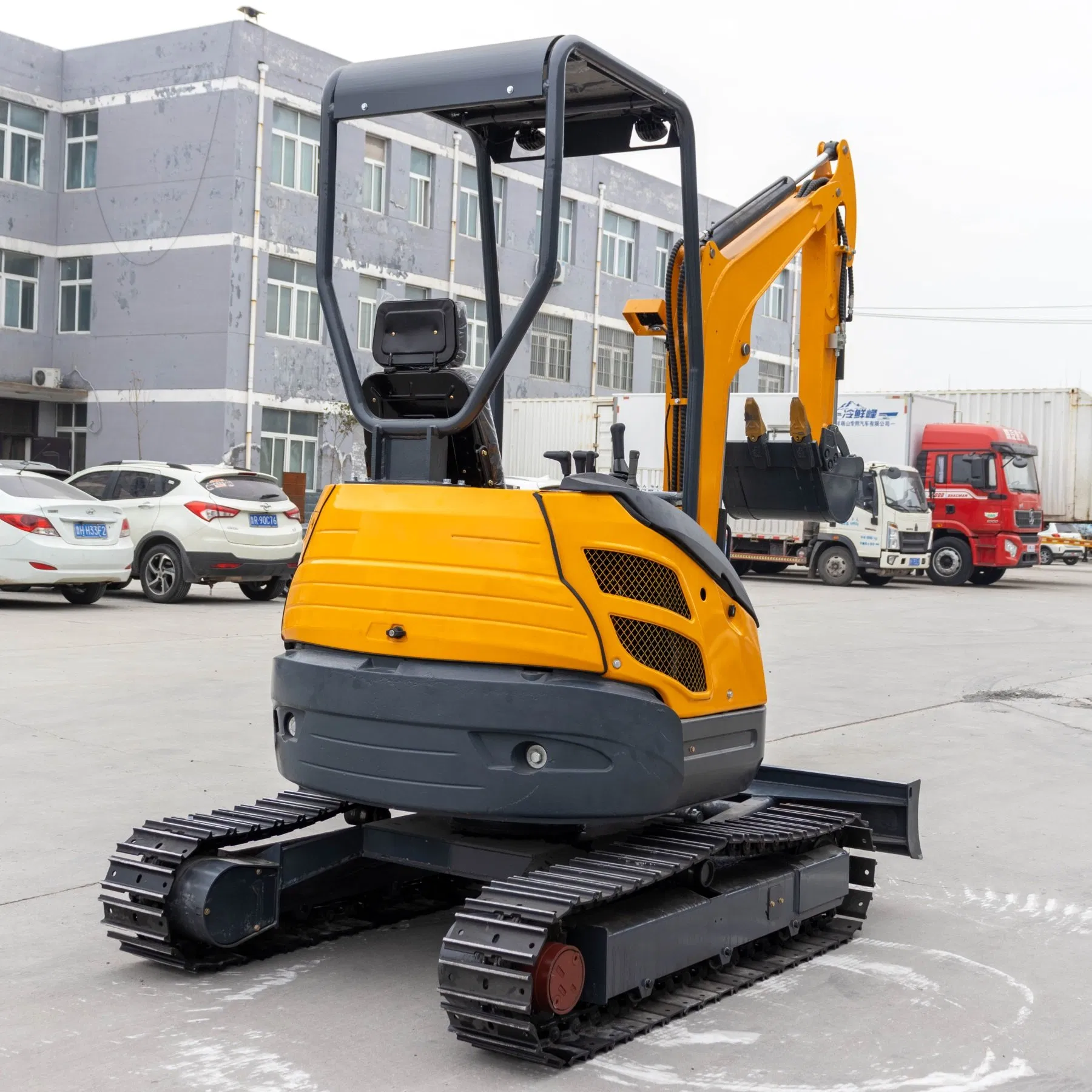

The XT25 Mini Excavator is a robust 2.5-ton compact crawler excavator, engineered for exceptional performance and versatility across construction, landscaping, agricultural, and municipal maintenance projects. Featuring retractable track shoes, boom swing, and tailless rotation, it delivers outstanding maneuverability and efficiency even in the most confined workspaces.

Key Product Highlights

Tailless & Flexible Design: Boasts tailless rotation and a boom swing angle of 75° (left) / 45° (right), with a minimal swing radius of 1720mm, ideal for narrow urban job sites.
Retractable Track System: Equipped with retractable track shoes (230mm width) and a 210mm ground clearance for stable traction on rough terrain.
Premium Engine Options: Powered by 3-cylinder engines meeting Euro 5 / EPA standards, including Ku-bota D1105 (14.2kW), Per-kins (14.7kW), and Laidong 3TE25 (18.4kW).
Impressive Digging Performance: Max digging depth of 2050mm, max digging height of 3365mm, and max digging radius of 3860mm with 0.06m³ bucket capacity.
Stable & Durable Build: 18Mpa hydraulic system pressure and 10-12rpm swing speed for precise control.

Detailed Photos

Core Advantages

1. Engine & Emission

Multiple options (D1105, Laidong 3TE25) delivering 14.2kW-18.4kW. Fully compliant with Euro 5 / EPA emission standards for global markets.

2. Maneuverability

Tailless rotation and retractable tracks (1050mm width) allow operation in the tightest urban spaces and easy transport.

3. High Performance

Strong bucket digging force up to 14KN. Max gradeability of 35° ensures excellent all-terrain capability.

4. Durability

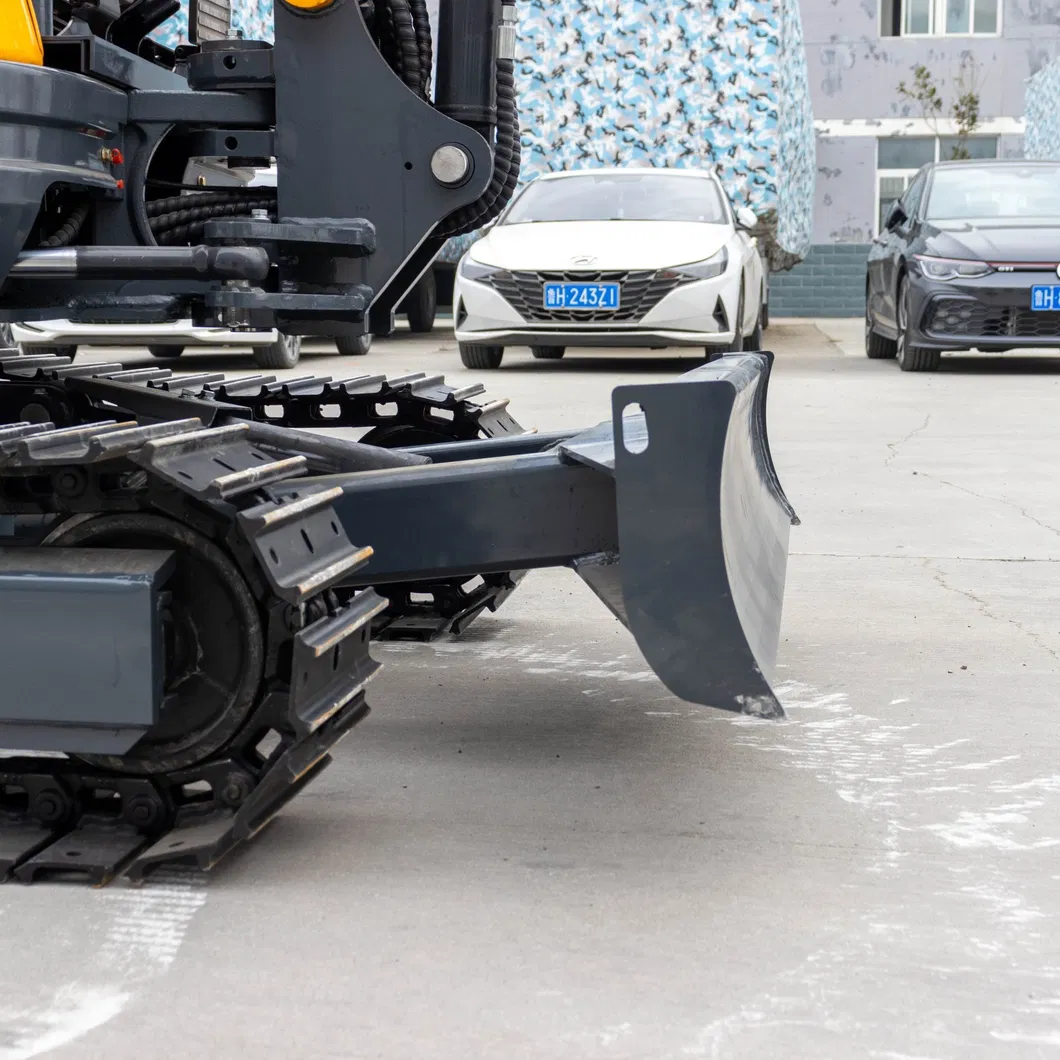

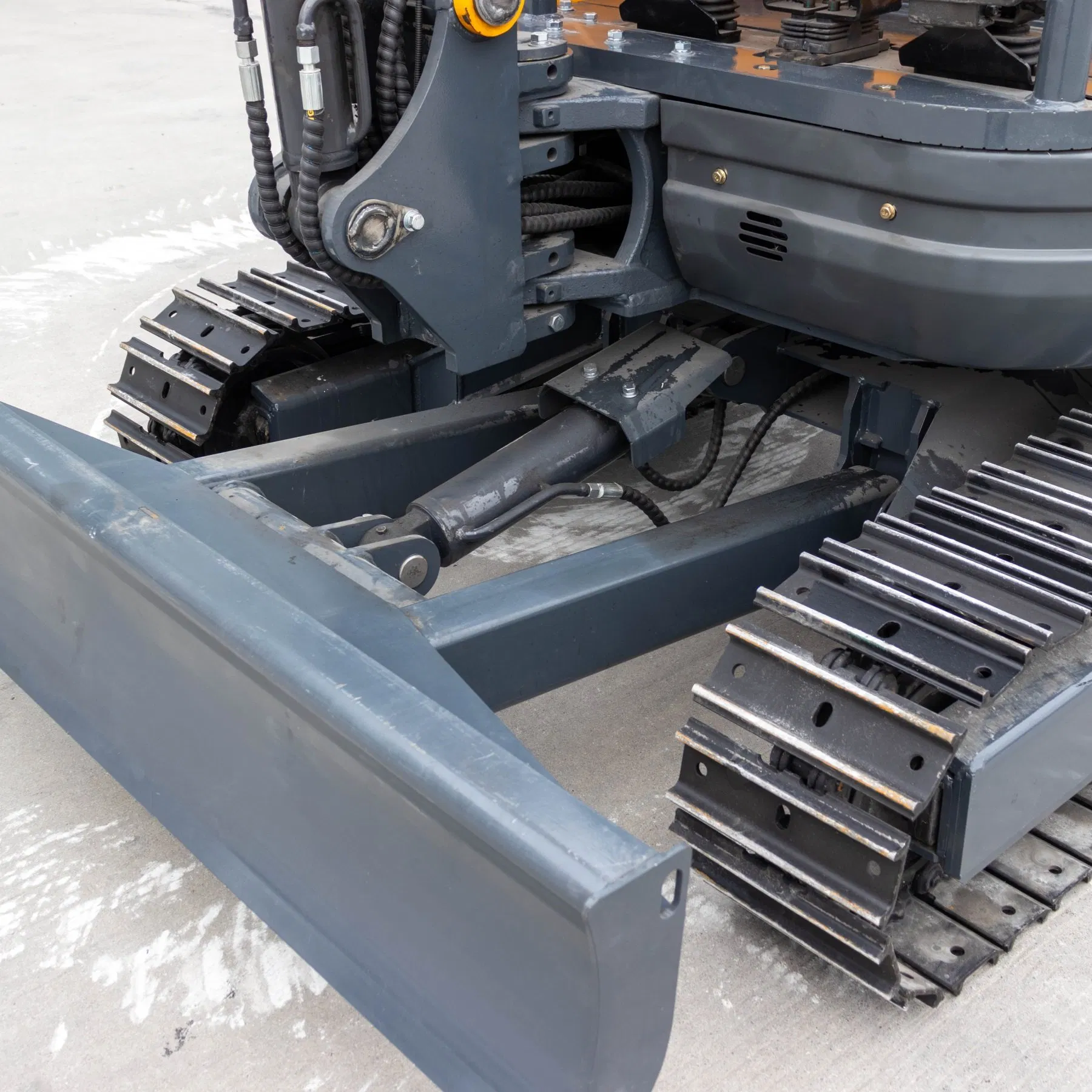

Robust steel structure and heavy-duty undercarriage. Includes a front dozer blade for leveling and backfilling.

Frequently Asked Questions

What engine options are available for the XT25 mini excavator?

We offer three reliable 3-cylinder engine options: Ku-bota D1105 (14.2kW), Per-kins (14.7kW), and Laidong 3TE25 (18.4kW). All engines meet Euro 5 / EPA emission standards.

Is the XT25 suitable for narrow or confined workspaces?

Yes. It features tailless rotation, a boom swing angle of 75° (left) and 45° (right), and a minimal swing radius of 1720mm. With an overall width of 1050mm, it is highly flexible for narrow job sites.

What are the advantages of the retractable track shoes?

The 230mm width retractable track shoes ensure stable traction on rough terrain and make the machine easier to transport through narrow passages.

What are the key digging performance parameters?

The max digging depth is 2050mm, max digging height is 3365mm, and the max digging radius is 3860mm. The bucket digging force reaches 14KN.

Can the XT25 work on sloped terrain?

Absolutely. It has a max gradeability of 35° and a 210mm ground clearance, providing excellent stability and passability on uneven or rough terrain.

What is the hydraulic system pressure and swing speed?

The hydraulic system pressure is 18Mpa, ensuring smooth and precise control. The swing speed is 10-12rpm, optimizing work efficiency.
