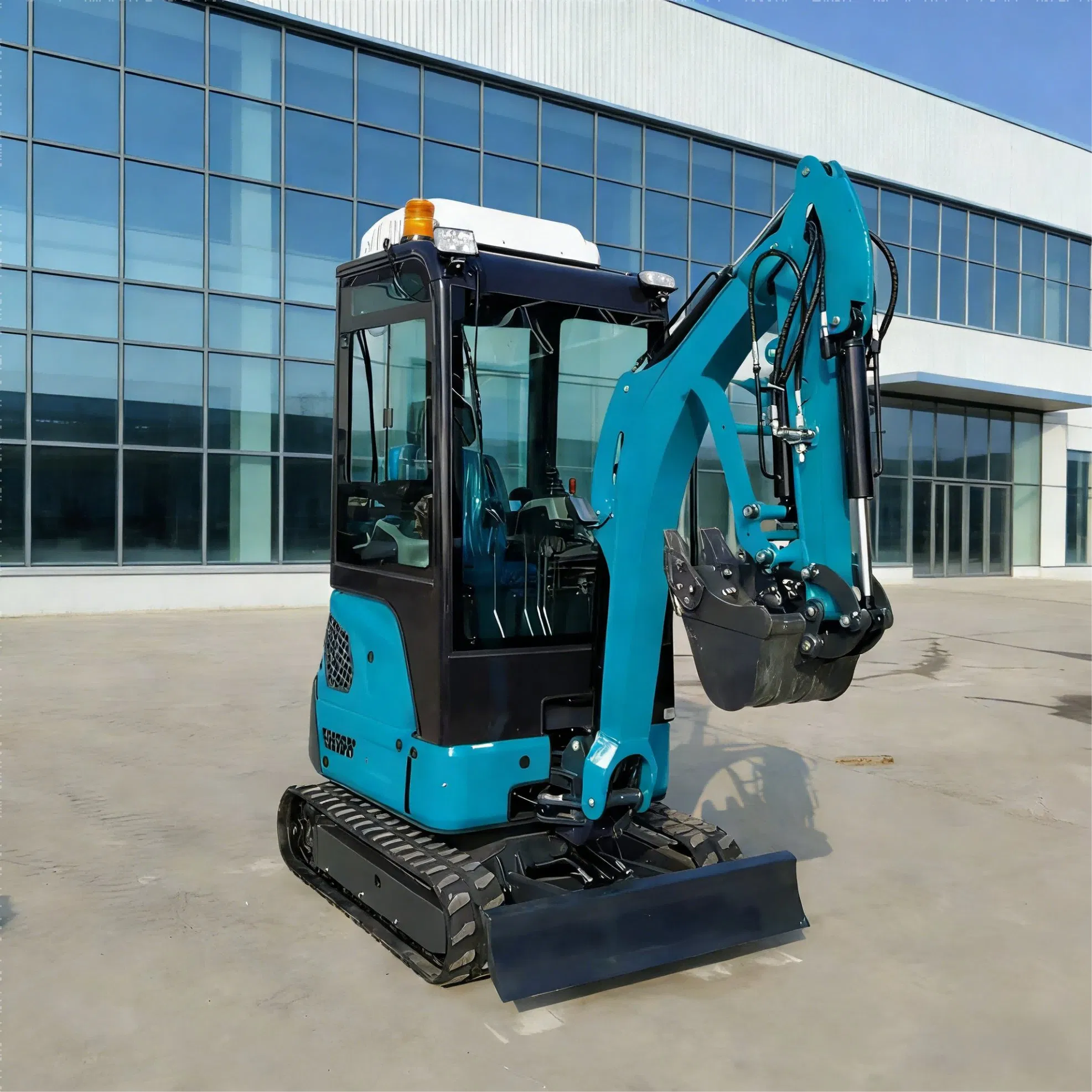

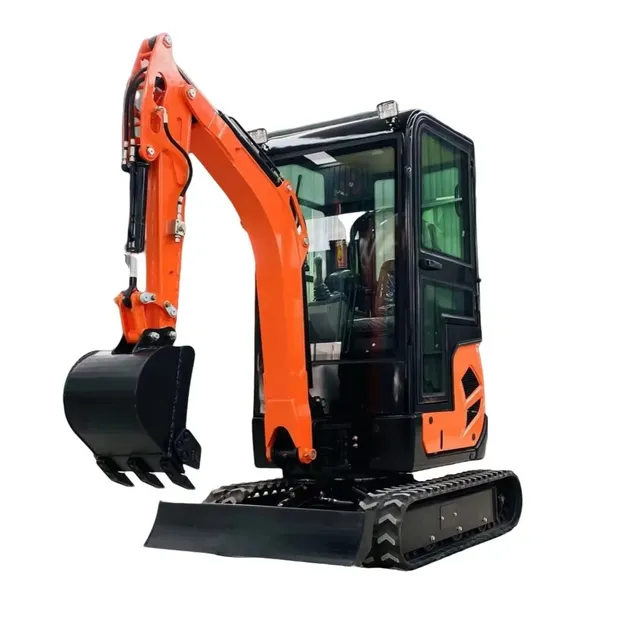

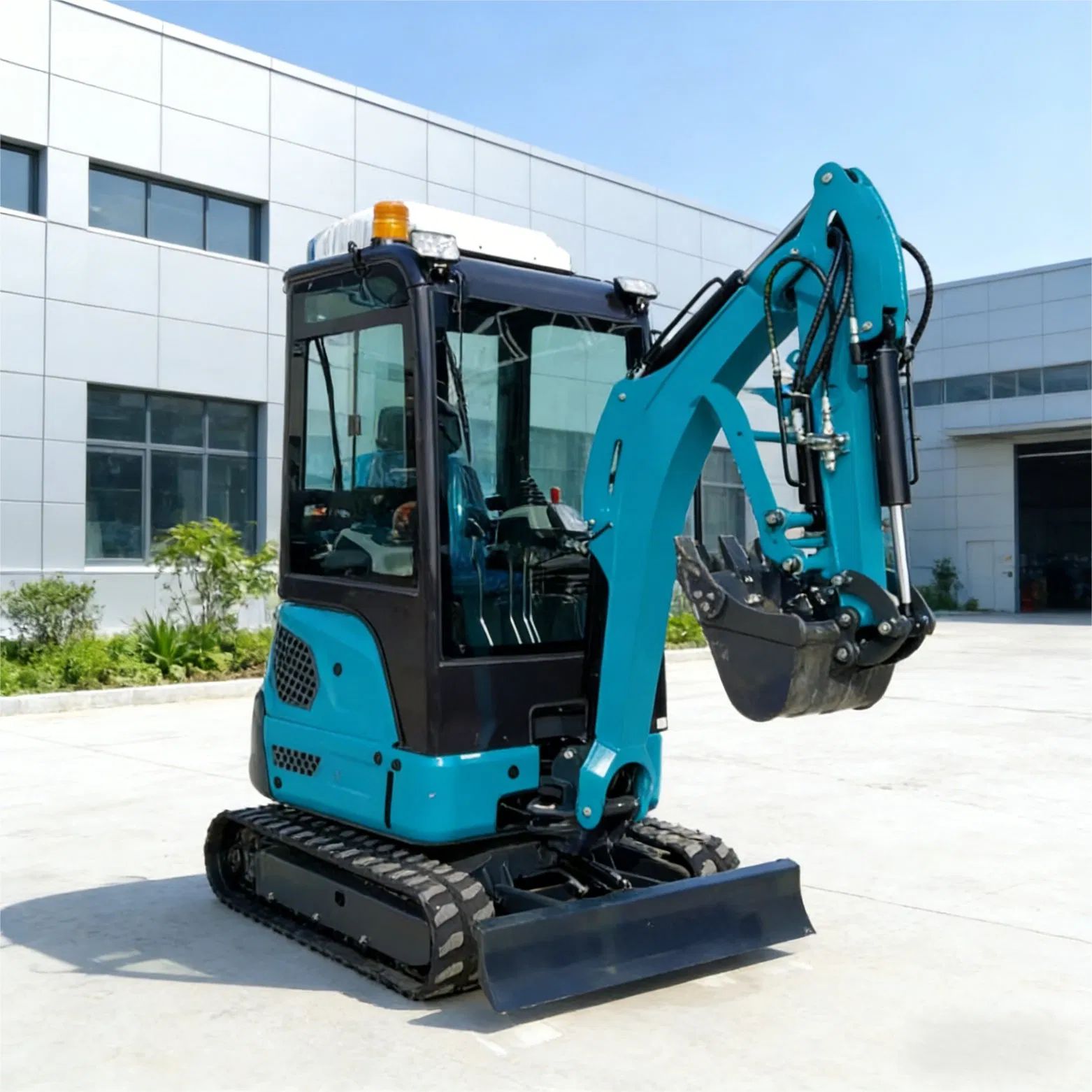

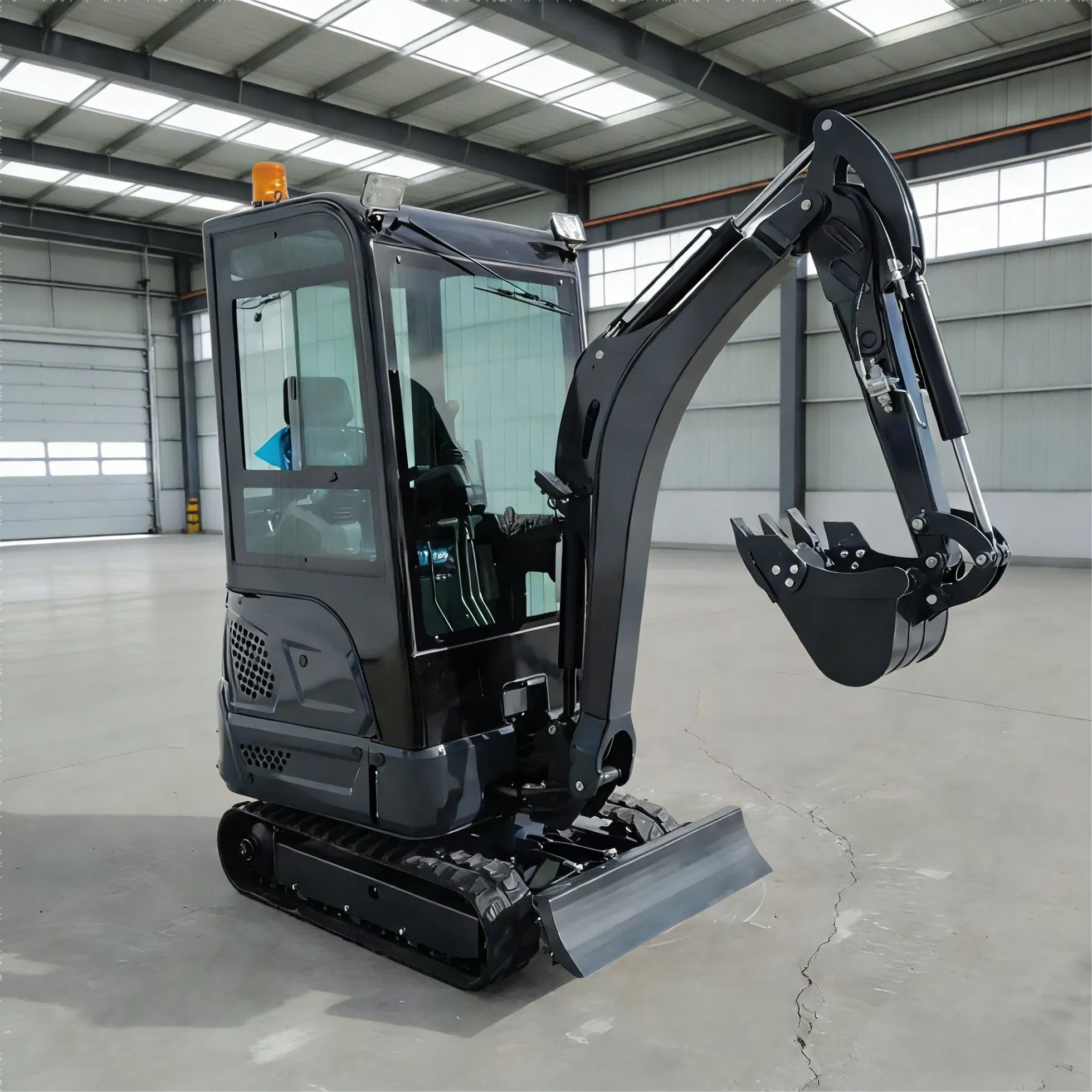

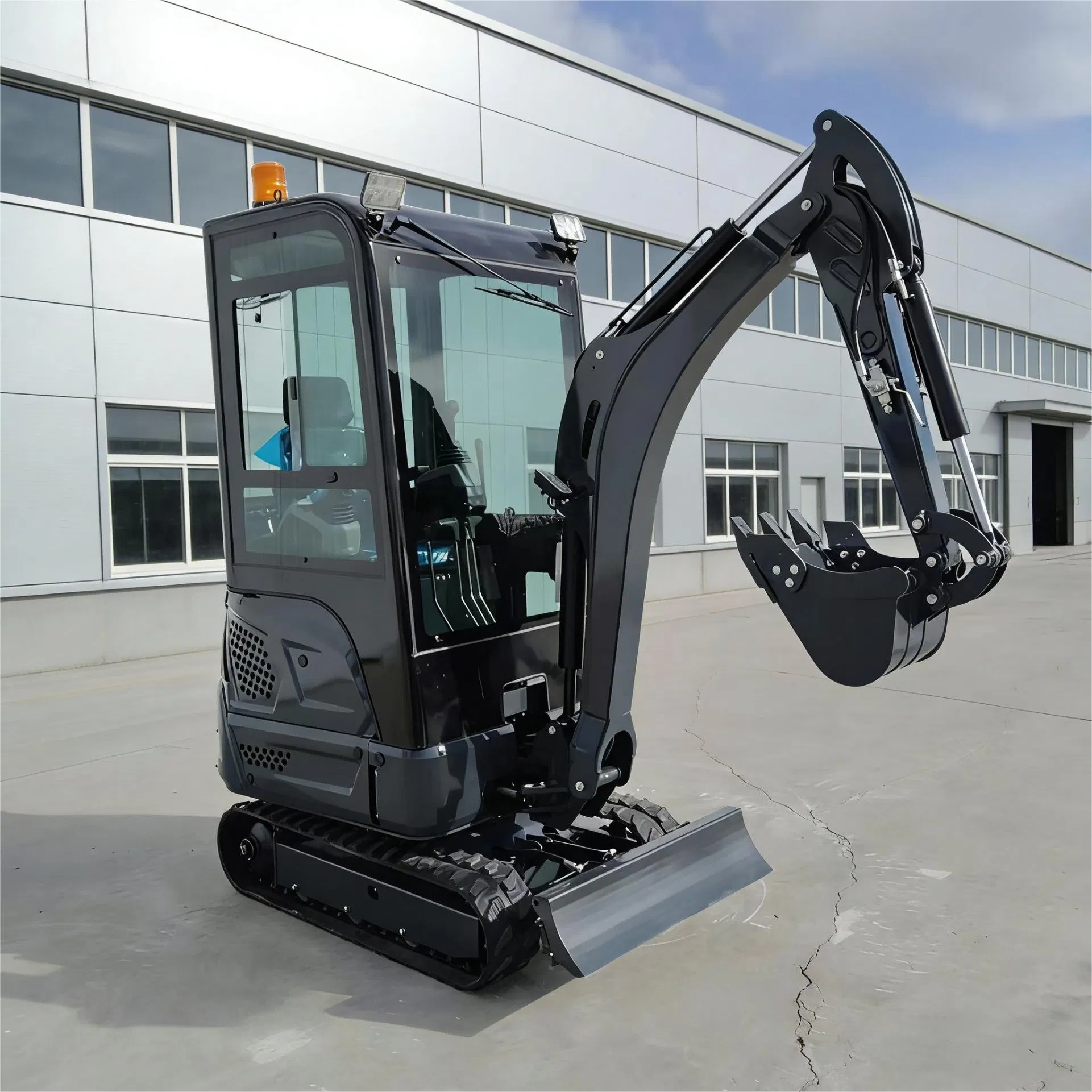

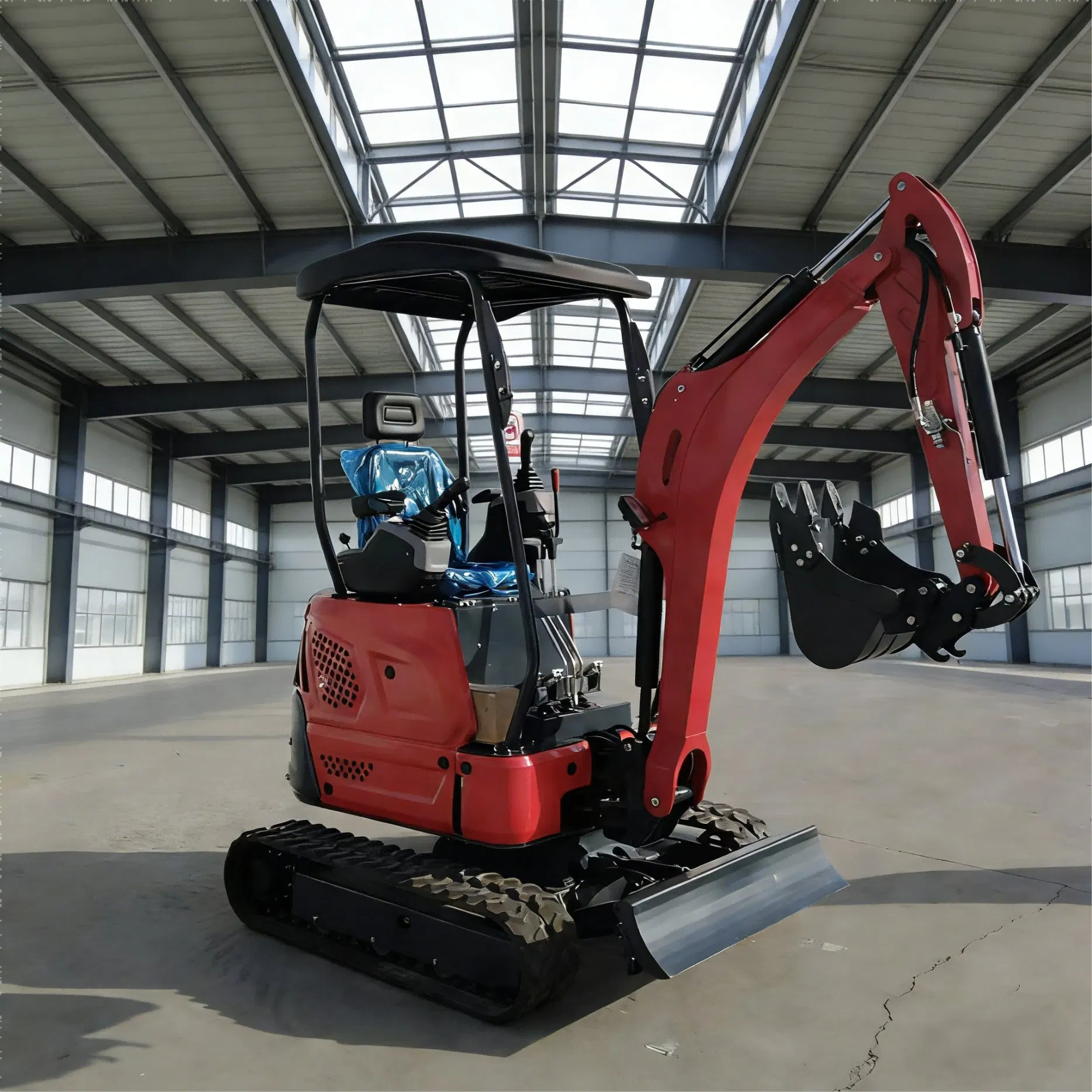

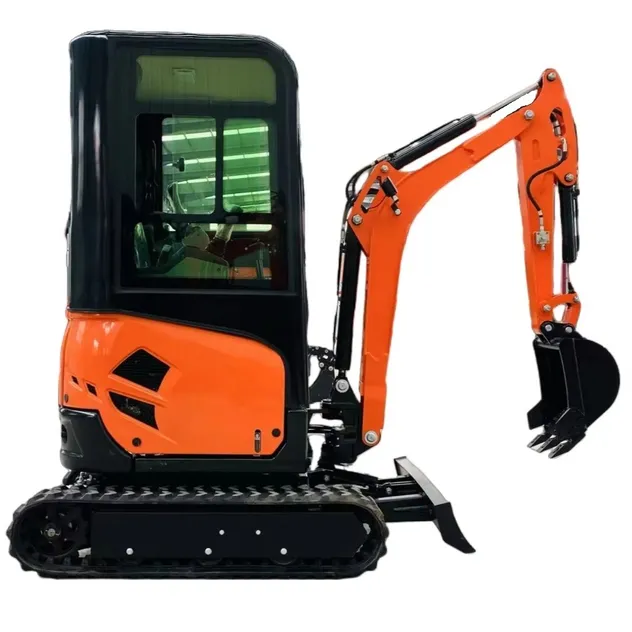

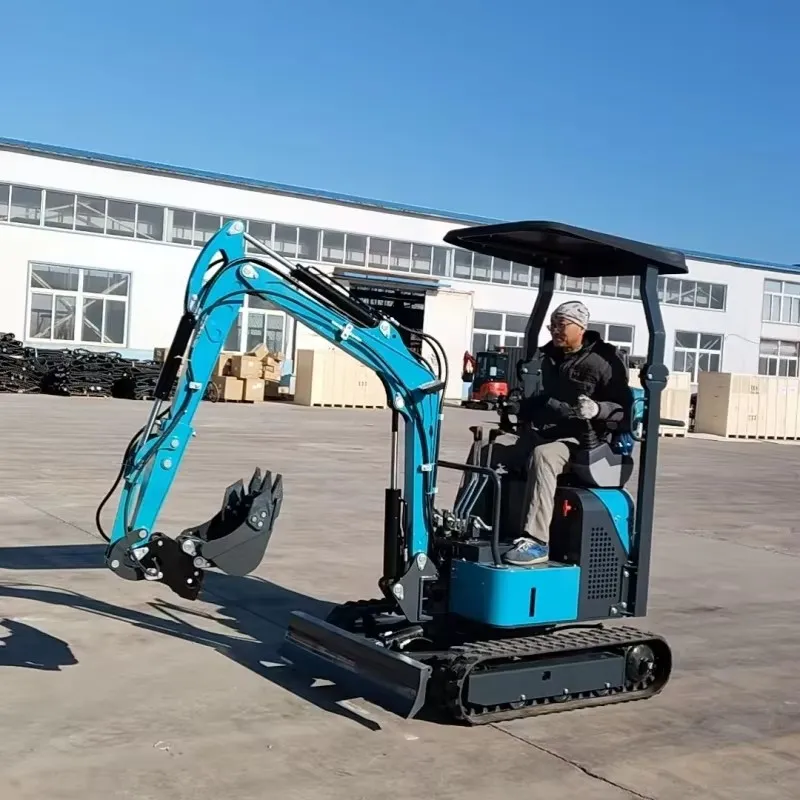

This Mini Excavator delivers power and performance in a compact size to help you work in the tightest applications. Its ability to fit through a narrow doorway makes it an excellent machine for indoor demolition work. The TE18 features a 2.1 m dig depth, 15 kN breakout force, and high-performance engine options, with zero tail swing reducing collision risk by 30%.
| Model | TE18 |
| Type | Crawler Excavator |

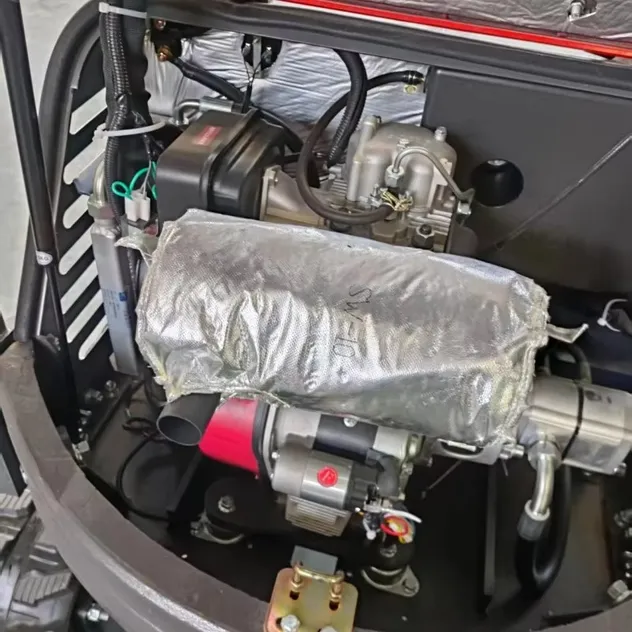

| Engine | Laidong / Yanmar / Briggs & Stratton |
| Rated Power | 10.2 kW / 29 kW / 11.8 kW |
| Overall Size | 2550 * 1200 * 2200 mm |
| Max Digging Depth | 2100 mm |
| Max Digging Height | 2820 mm |
| Max Unloading Height | 2050 mm |
| Bucket Capacity | 0.1 ~ 0.5 m³ |
| Fuel Consumption | 2 - 3 L/h |
| Gradeability | 30° |
| Hydraulic Tank | 18 L |
| Diesel Tank | 16 L |
| Travel Speed | 2 km/h |
Every excavator can accept OEM customization services, including LOGO customization, Color customization, Engine customization and various accessories combinations, designed according to actual needs.
Shaft arm frame made of Q355B high-strength manganese steel. National standard thickness with 5 layers, providing 30% longer service life than competitors.
40cr material with QPQ salt bath nitriding treatment. Surface hardness reaches 500-550 HV, offering superior wear and corrosion resistance.
High-strength aviation-specific wiring harness, waterproof and durable, tested for over 300,000 folds.
Factory brand hydraulic oil pipes capable of withstanding 25 Mpa pressure. Cylinders equipped with protective covers against debris.

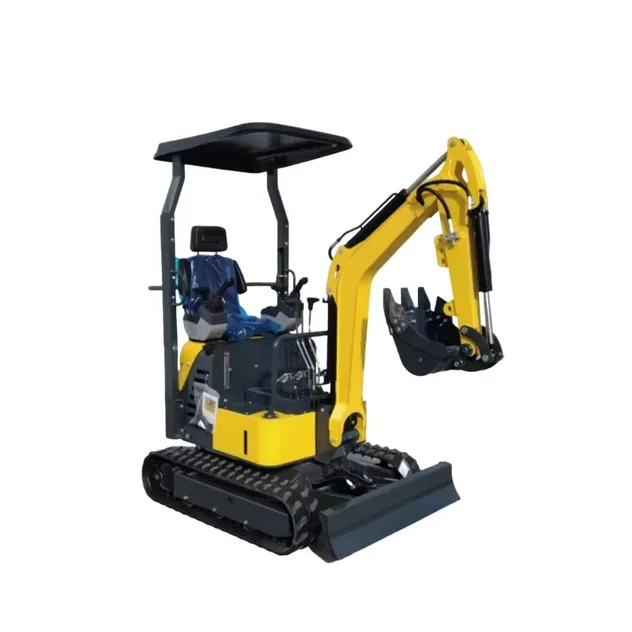

1 Ton Mini Excavator

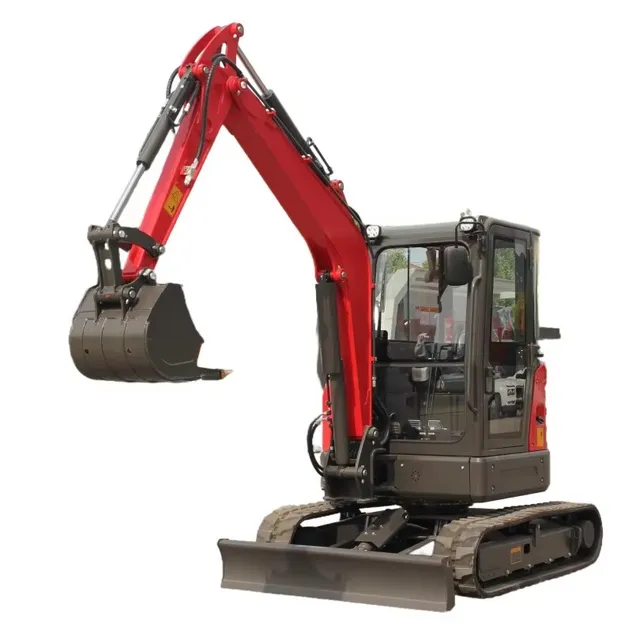

4 Ton Small Excavator

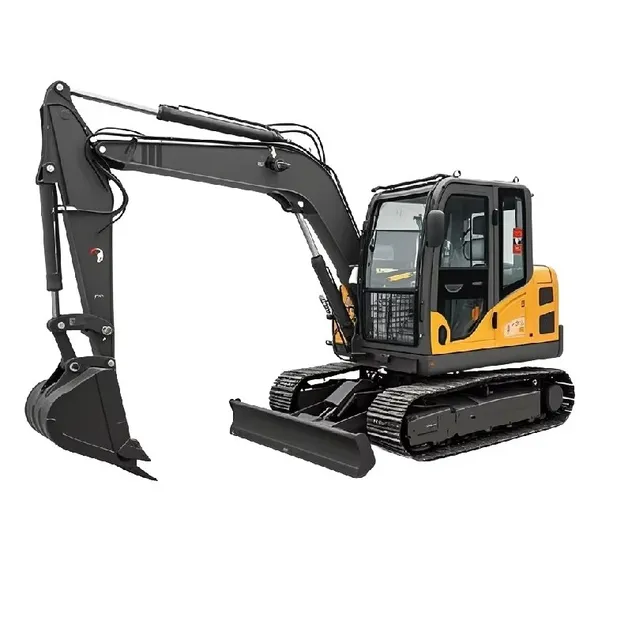

6.5 Ton Excavator
